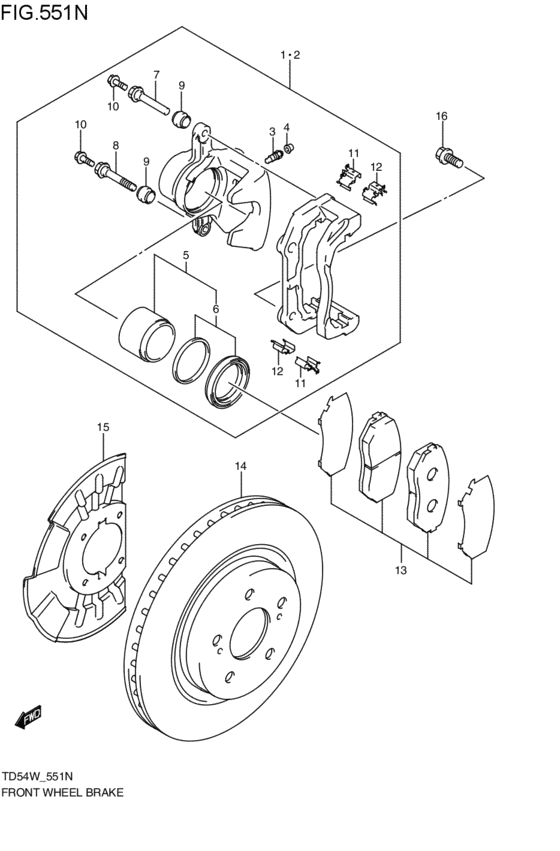

front wheel brakes (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
55101-65J01-999
キャリパ,フロントブレーキ,ライト
2005-05-01~2006-06-01 |
55101-65J01-999 |
— | ||
| replacement | |||||
|
1
|
1
55101-65J05-999 CALIPER,FR BRAKE,R2005-05-01~2006-06-01 |
55101-65J05-999 |
US $640 |
||
|
2
|
2
55102-65J01-999
キャリパ,フロントブレーキ,レフト
2005-05-01~2006-06-01 |
55102-65J01-999 |
— | ||
| replacement | |||||
|
2
|
2
55102-65J05-999 CALIPER,FR BRAKE,L2005-05-01~2006-06-01 |
55102-65J05-999 |
US $640 |
||
|
3
|
3
55151-77E00-000 PLUG,BLEEDER2005-05-01~2006-06-01 |
55151-77E00-000 |
US $8 |
||
|
4
|
4
55156-77E00-000 CAP,BLEEDER PLUG2005-05-01~2006-06-01 |
55156-77E00-000 |
US $2.24 |
||
|
5
|
5
55840-65J00-000
Piston/seal set
2005-05-01~2006-06-01 |
55840-65J00-000 |
— | ||
| replacement | |||||
|
5
|
5
55840-65J01-000 PISTON / SEAL SET2005-05-01~2006-06-01 |
55840-65J01-000 |
US $52 |
||
|
6
|
6
55830-50J00-000
Seal set,piston
2005-05-01~2006-06-01 |
55830-50J00-000 |
— | ||
| replacement | |||||
|
6
|
6
55830-50J01-000 SEAL SET,PISTON2005-05-01~2006-06-01 |
55830-50J01-000 |
US $9.60 |
||
|
7
|
7
55191-65J00-000 PIN,SLIDE2005-05-01~2006-06-01 |
55191-65J00-000 |
US $14.08 |
||
|
8
|
8
55192-50J00-000 SLIDE PIN SET2005-05-01~2006-06-01 |
55192-50J00-000 |
US $13.38 |
||
|
9
|
9
55201-50J00-000 BOOT,PIN2005-05-01~2006-06-01 |
55201-50J00-000 |
US $2.58 |
||
|
10
|
10
55206-50J00-000 BOLT,PIN2005-05-01~2006-06-01 |
55206-50J00-000 |
US $8.48 |
||
|
11
|
11
55234-50J00-000 LINER-A,PAD2005-05-01~2006-06-01 |
55234-50J00-000 |
US $6.69 |
||
|
12
|
12
55235-50J00-000 LINER-B,PAD2005-05-01~2006-06-01 |
55235-50J00-000 |
US $6.69 |
||
|
13
|
13
55200-65J01-000
パッドセット,ディスクブレーキ
2005-05-01~2006-06-01 |
55200-65J01-000 |
— | ||
| replacement | |||||
|
13
|
13
55200-65J26-000 PAD SET,DISC BRAKE2005-05-01~2006-06-01 |
55200-65J26-000 |
US $176 |
||
|
14
|
14
55211-65J00-000
ディスク,フロントブレーキ
2005-05-01~2006-06-01 |
55211-65J00-000 |
— | ||
| replacement | |||||
|
14
|
14
55211-65J02-000 DISC,FR BRAKE2005-05-01~2006-06-01 |
55211-65J02-000 |
US $177.74 |
||
|
15
|
15
55221-65J00-000
カバー,ブレーキディスクダスト
2005-05-01~2006-06-01 |
55221-65J00-000 |
— | ||
| replacement | |||||
|
15
|
15
55221-65J01-000 COVER,BRAKE DISC DUST2005-05-01~2006-06-01 |
55221-65J01-000 |
US $48 |
||
|
16
|
16
09117-12012-000 BOLT(12X32)2005-05-01~2006-06-01 |
09117-12012-000 |
US $2.08 |
||
