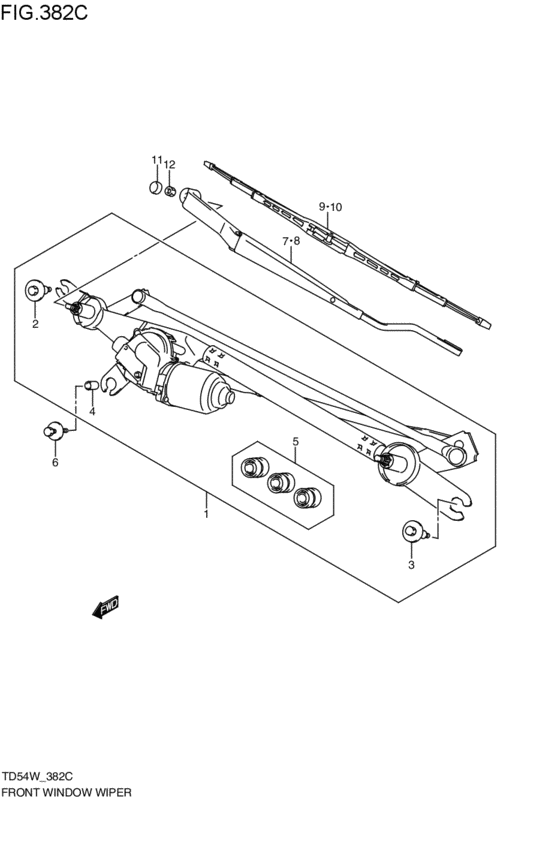

front wind windshield wiper (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38100-65J10-000 WIPER ASSY,WINDSHIELD2005-05-01~2006-06-01 |
38100-65J10-000 |
US $331.20 |
||
|
2
|
2
38116-72J00-000 BOLT,WIPER DRIVER2005-05-01~2006-06-01 |
38116-72J00-000 |
US $3.75 |
||
|
3
|
3
38116-72J10-000 BOLT,WIPER ASST2005-05-01~2006-06-01 |
38116-72J10-000 |
US $3.75 |
||
|
4
|
4
38116-72J20-000 COLLAR,WIPER MOTOR2005-05-01~2006-06-01 |
38116-72J20-000 |
US $3.64 |
||
|
5
|
5
38116-72J30-000 GROMMET SET,WIPER2005-05-01~2006-06-01 |
38116-72J30-000 |
US $9.64 |
||
|
6
|
6
09116-06172-000 BOLT(6X30)Bolt (6x30) 2005-05-01~2006-06-01 |
09116-06172-000 |
from US $1.44 |
||
|
7
|
7
38310-65J10-000 ARM ASSY,FR WIPER DRVR2005-05-01~2006-06-01 |
38310-65J10-000 |
US $55.94 |
||
|
8
|
8
38330-65J10-000 ARM ASSY,FR WIPER ASST2005-05-01~2006-06-01 |
38330-65J10-000 |
US $46.37 |
||
|
9
|
9
38340-65J20-000
ブレードアッシ,ワイパ
ライト; 2005-05-01~2006-06-01 |
38340-65J20-000 |
— | ||
| replacement | |||||
|
9
|
9
38340-65J21-000 BLADE ASSY,WIPERライト; 2005-05-01~2006-06-01 |
38340-65J21-000 |
US $23.74 |
||
|
10
|
10
38340-65J30-000
ブレードアッシ,ワイパ
レフト; 2005-05-01~2006-06-01 |
38340-65J30-000 |
— | ||
| replacement | |||||
|
10
|
10
38340-65J31-000 BLADE ASSY,WIPERレフト; 2005-05-01~2006-06-01 |
38340-65J31-000 |
US $30.40 |
||
|
11
|
11
38315-60B10-000
Cap
2005-05-01~2006-06-01 |
38315-60B10-000 |
— | ||
| replacement | |||||
|
11
|
11
38315-60B11-000 CAP,WIPER PIVOT2005-05-01~2006-06-01 |
38315-60B11-000 |
US $1.60 |
||
|
12
|
12
08310-00083-000
Nut
2005-05-01~2006-06-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
12
|
12
08310-0008B-000 NUT2005-05-01~2006-06-01 |
08310-0008B-000 |
from US $0.80 |
||
|
12
|
12
08310-0008A-000 NUTNut, bead stopper 2005-05-01~2006-06-01 |
08310-0008A-000 |
from US $0.76 |
||
