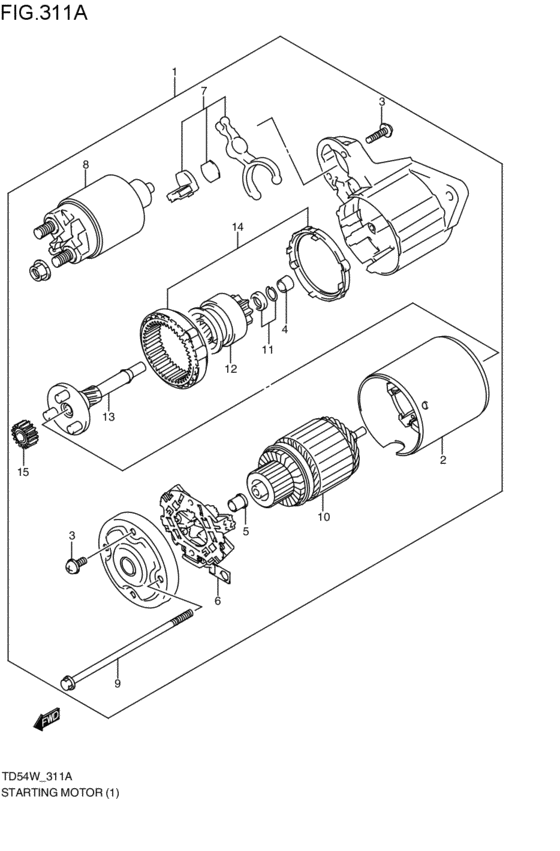

starting motor (J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-65J10-000 MOTOR ASSY,STARTINGJ20A; 2005-05-01~2006-06-01 |
31100-65J10-000 |
US $563.20 |
||
|
2
|
2
31110-65J10-000 YOKE ASSYJ20A; 2005-05-01~2006-06-01 |
31110-65J10-000 |
US $283.36 |
||
|
3
|
3
31136-79030-000
SCREW ASSY
J20A; 2005-05-01~2006-06-01 |
31136-79030-000 |
— | ||
| replacement | |||||
|
3
|
3
31175-79030-000 Screw SetJ20A; 2005-05-01~2006-06-01 |
31175-79030-000 |
US $8.16 |
||
|
4
|
4
31152-63J00-000 BEARING,FRONTJ20A; 2005-05-01~2006-06-01 |
31152-63J00-000 |
US $10.56 |
||
|
5
|
5
31172-64B60-000 BEARING,REARJ20A; 2005-05-01~2006-06-01 |
31172-64B60-000 |
US $10.56 |
||
|
6
|
6
31173-63J00-000 BRUSH ASSYJ20A; 2005-05-01~2006-06-01 |
31173-63J00-000 |
US $32 |
||
|
7
|
7
31191-63J00-000 LEVER ASSYJ20A; 2005-05-01~2006-06-01 |
31191-63J00-000 |
US $11.68 |
||
|
8
|
8
31220-65J10-000
SWITCH ASSY
J20A; 2005-05-01~2006-06-01 |
31220-65J10-000 |
— | ||
| replacement | |||||
|
8
|
8
31220-81P10-000 Switch AssyJ20A; 2005-05-01~2006-06-01 |
31220-81P10-000 |
US $148.80 |
||
|
9
|
9
31261-67D10-000 BoltJ20A; 2005-05-01~2006-06-01 |
31261-67D10-000 |
US $11.52 |
||
|
10
|
10
31311-65J10-000 ARMATUREJ20A; 2005-05-01~2006-06-01 |
31311-65J10-000 |
US $314.64 |
||
|
11
|
11
31313-86030-000
STOPPER SET
J20A; 2005-05-01~2006-06-01 |
31313-86030-000 |
— | ||
| replacement | |||||
|
11
|
11
31314-86030-000 Stopper SetJ20A; 2005-05-01~2006-06-01 |
31314-86030-000 |
US $12.80 |
||
|
12
|
12
31320-63J00-000 CLUTCH,OVER RUNNINGJ20A; 2005-05-01~2006-06-01 |
31320-63J00-000 |
US $89.60 |
||
|
13
|
13
31341-63J00-000 SHAFT ASSY,GEARJ20A; 2005-05-01~2006-06-01 |
31341-63J00-000 |
US $203.20 |
||
|
14
|
14
31343-63J00-000 INTERNAL GEARJ20A; 2005-05-01~2006-06-01 |
31343-63J00-000 |
US $90.40 |
||
|
15
|
15
31344-63J00-000 GEAR ASSYJ20A; 2005-05-01~2006-06-01 |
31344-63J00-000 |
US $48 |
||
