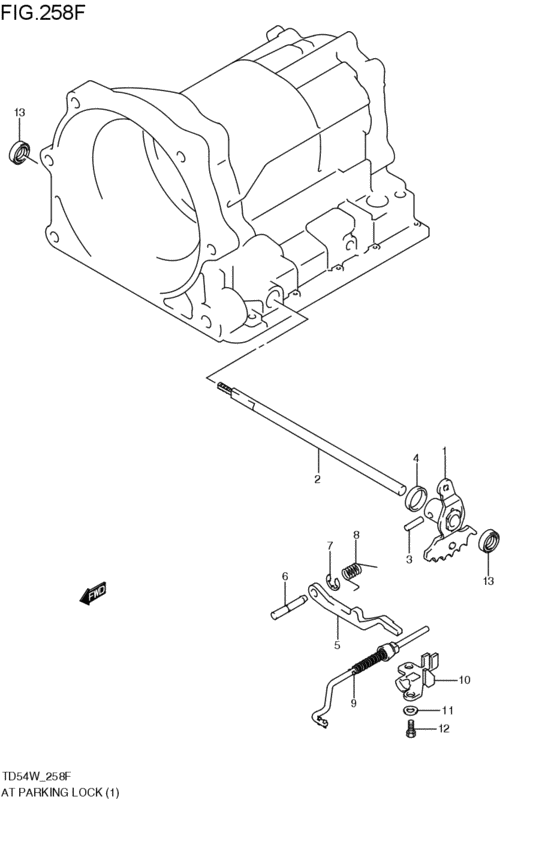

at - parking lock (AT:J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XGF
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25911-85FA0-000 LEVER,MANUAL SHIFTAT:J20A; 2005-05-01~2006-06-01 |
25911-85FA0-000 |
US $33.12 |
||
|
2
|
2
25951-65D10-000 SHAFT,MANUAL SHIFTAT:J20A; 2005-05-01~2006-06-01 |
25951-65D10-000 |
US $51.15 |
||
|
3
|
3
29898-57B00-000 PIN,SPRING MNL SHIFT LVRAT:J20A; 2005-05-01~2006-06-01 |
29898-57B00-000 |
US $6.37 |
||
|
4
|
4
25912-57B00-000 SPACER,MANUAL DETENT LEVERAT:J20A; 2005-05-01~2006-06-01 |
25912-57B00-000 |
US $8.98 |
||
|
5
|
5
25961-57B00-000 PAWL,PARKING LOCKAT:J20A; 2005-05-01~2006-06-01 |
25961-57B00-000 |
US $61.46 |
||
|
6
|
6
29899-57B00-000 PIN,PARKING LOCK PAWLAT:J20A; 2005-05-01~2006-06-01 |
29899-57B00-000 |
US $14.87 |
||
|
7
|
7
28948-57B00-000 RING,SNAP PARKING LOCK PAWLAT:J20A; 2005-05-01~2006-06-01 |
28948-57B00-000 |
US $8.39 |
||
|
8
|
8
29624-57B00-000 SPRING,PARKING LOCK PAWLAT:J20A; 2005-05-01~2006-06-01 |
29624-57B00-000 |
US $10.49 |
||
|
9
|
9
25931-57B00-000 ROD,PARKING LOCKAT:J20A; 2005-05-01~2006-06-01 |
25931-57B00-000 |
US $48.58 |
||
|
10
|
10
25941-57B00-000 BRACKET,PARKING LOCK PAWLAT:J20A; 2005-05-01~2006-06-01 |
25941-57B00-000 |
US $22.82 |
||
|
11
|
11
29944-57B00-000 WASHER,PARKING LOCK PAWL BRKTAT:J20A; 2005-05-01~2006-06-01 |
29944-57B00-000 |
US $5.12 |
||
|
12
|
12
29988-57B00-000 SCREW,PARK LOCK PAWL BRKTAT:J20A; 2005-05-01~2006-06-01 |
29988-57B00-000 |
US $6.18 |
||
|
13
|
13
29793-57B00-000 SEAL,OIL LIPAT:J20A; 2005-05-01~2006-06-01 |
29793-57B00-000 |
from US $5.17 |
