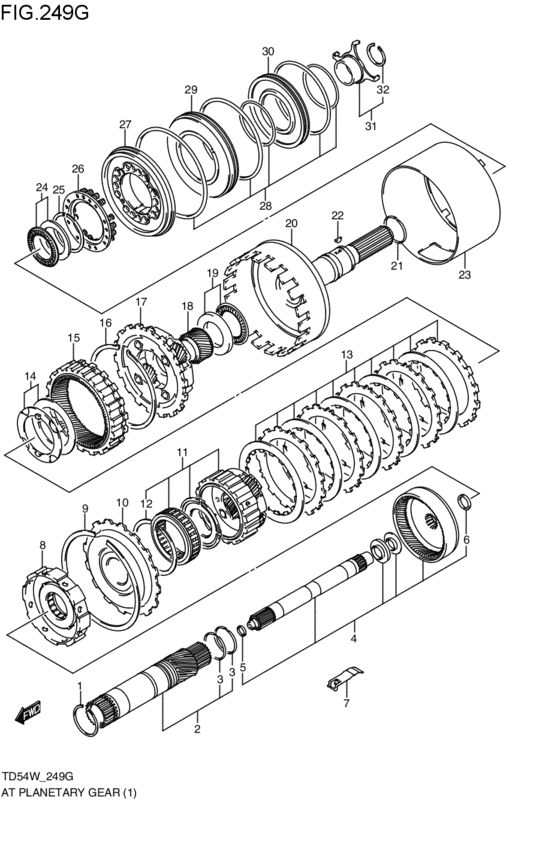

at - plastic material re-gear (AT:J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XGF
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24991-57B00-000 RING,RETAINING DIRECT CLAT:J20A; 2005-05-01~2006-06-01 |
24991-57B00-000 |
from US $8.35 |
||
|
2
|
2
24901-57B00-000
ギヤアッシ,プラネタリサン
AT:J20A; 2005-05-01~2006-06-01 |
24901-57B00-000 |
— | ||
| replacement | |||||
|
2
|
2
24901-57B01-000 GEAR ASSY,PLNTY SUNAT:J20A; 2005-05-01~2006-06-01 |
24901-57B01-000 |
US $464.64 |
||
|
3
|
3
29796-57B00-000 RING,SEAL SUN GEARAT:J20A; 2005-05-01~2006-06-01 |
29796-57B00-000 |
US $19.87 |
||
|
4
|
4
24950-57B00-000 SHAFT ASSY,INNERAT:J20A; 2005-05-01~2006-06-01 |
24950-57B00-000 |
US $577.28 |
||
|
5
|
5
29795-57B00-000 RING,SEAL SLEEVEAT:J20A; 2005-05-01~2006-06-01 |
29795-57B00-000 |
US $8.21 |
||
|
6
|
6
24995-57B00-000 RING,RETAINING INNER SHAFTAT:J20A; 2005-05-01~2006-06-01 |
24995-57B00-000 |
US $9.31 |
||
|
7
|
7
29622-57B00-000 SPRING,LEAFAT:J20A; 2005-05-01~2006-06-01 |
29622-57B00-000 |
from US $10.55 |
||
|
8
|
8
24931-68D70-000 HUB ASSY,B2 BRAKEAT:J20A; 2005-05-01~2006-06-01 |
24931-68D70-000 |
US $323.84 |
||
|
9
|
9
26891-57B00-000 RING,RETAINING REACTION PLEATEAT:J20A; 2005-05-01~2006-06-01 |
26891-57B00-000 |
US $13.98 |
||
|
10
|
10
26831-57B00-000 PLATE,REV BK REACTIONAT:J20A; 2005-05-01~2006-06-01 |
26831-57B00-000 |
from US $275.20 |
||
|
11
|
11
24902-52D10-000 GEAR ASSY,FR PLNTYAT:J20A; 2005-05-01~2006-06-01 |
24902-52D10-000 |
from US $956.99 |
||
|
12
|
12
24993-57B00-000 RING,RITAINING ONE WAY CLAT:J20A; 2005-05-01~2006-06-01 |
24993-57B00-000 |
from US $8.80 |
||
|
13
|
13
26811-65DU0-000 PLATE SET,1ST&REV BRAKEAT:J20A; 2005-05-01~2006-06-01 |
26811-65DU0-000 |
from US $624.58 |
||
|
14
|
14
29945-57BT0-000 WASHER SET,THRUST PLNTYAT:J20A; 2005-05-01~2006-06-01 |
29945-57BT0-000 |
US $24.66 |
||
|
15
|
15
24943-57B00-000 GEAR,FR PLNTY RINGAT:J20A; 2005-05-01~2006-06-01 |
24943-57B00-000 |
US $228.16 |
||
|
16
|
16
24992-57B00-000 RING,RETAINING FR PLNTY RINGAT:J20A; 2005-05-01~2006-06-01 |
24992-57B00-000 |
US $12 |
||
|
17
|
17
24944-52D10-000 GEAR,RR PLNTY CARRIERAT:J20A; 2005-05-01~2006-06-01 |
24944-52D10-000 |
US $464.64 |
||
|
18
|
18
24946-57B00-000 GEAR,PLNTY SUN RRAT:J20A; 2005-05-01~2006-06-01 |
24946-57B00-000 |
US $218.96 |
||
|
19
|
19
26663-57BT0-000 BEARING SET,THRUST NO.9AT:J20A; 2005-05-01~2006-06-01 |
26663-57BT0-000 |
US $39.01 |
||
|
20
|
20
24952-65J10-000
シャフトアッシ,アウトプツト
AT:J20A; 2005-05-01~2006-06-01 |
24952-65J10-000 |
— | ||
| replacement | |||||
|
20
|
20
24952-65J11-000 SHAFT ASSY,OUTPUTAT:J20A; 2005-05-01~2006-06-01 |
24952-65J11-000 |
US $946.88 |
||
|
21
|
21
29794-57B00-000 RING,SEAL OUTPUT SHAFTAT:J20A; 2005-05-01~2006-06-01 |
29794-57B00-000 |
from US $15.84 |
||
|
22
|
22
24971-57B00-000 KEY,WOODRUFFAT:J20A; 2005-05-01~2006-06-01 |
24971-57B00-000 |
US $8.80 |
||
|
23
|
23
26832-85FA0-000 TUBE,BRAKE APPLYAT:J20A; 2005-05-01~2006-06-01 |
26832-85FA0-000 |
US $70.66 |
||
|
24
|
24
24962-57BT0-000 BEARING SET,THRUST NO.4AT:J20A; 2005-05-01~2006-06-01 |
24962-57BT0-000 |
US $40.48 |
||
|
25
|
25
28949-57B00-000 RING,SNAP B1 BRAKEAT:J20A; 2005-05-01~2006-06-01 |
28949-57B00-000 |
from US $7.52 |
||
|
26
|
26
26841-57B00-000 SPRING,BRAKE PSTN RTNAT:J20A; 2005-05-01~2006-06-01 |
26841-57B00-000 |
US $36.25 |
||
|
27
|
27
26821-57B00-000 PISTON,REV BRAKEAT:J20A; 2005-05-01~2006-06-01 |
26821-57B00-000 |
US $64.77 |
||
|
28
|
28
29729-65DT0-000 O-RING SET,REV BRAKE PISTONAT:J20A; 2005-05-01~2006-06-01 |
29729-65DT0-000 |
from US $54.38 |
||
|
29
|
29
26861-57B00-000 SLEEVE,REACTIONAT:J20A; 2005-05-01~2006-06-01 |
26861-57B00-000 |
from US $54.70 |
||
|
30
|
30
26822-57B00-000 PISTON,SECONDARY REVAT:J20A; 2005-05-01~2006-06-01 |
26822-57B00-000 |
from US $42.68 |
||
|
31
|
31
24921-65JT0-000 ROTOR SET,SENSORAT:J20A; 2005-05-01~2006-06-01 |
24921-65JT0-000 |
US $153.09 |
||
|
32
|
32
24994-57B00-000 RING,RETAINING ROTORAT:J20A; 2005-05-01~2006-06-01 |
24994-57B00-000 |
from US $6.55 |
||
