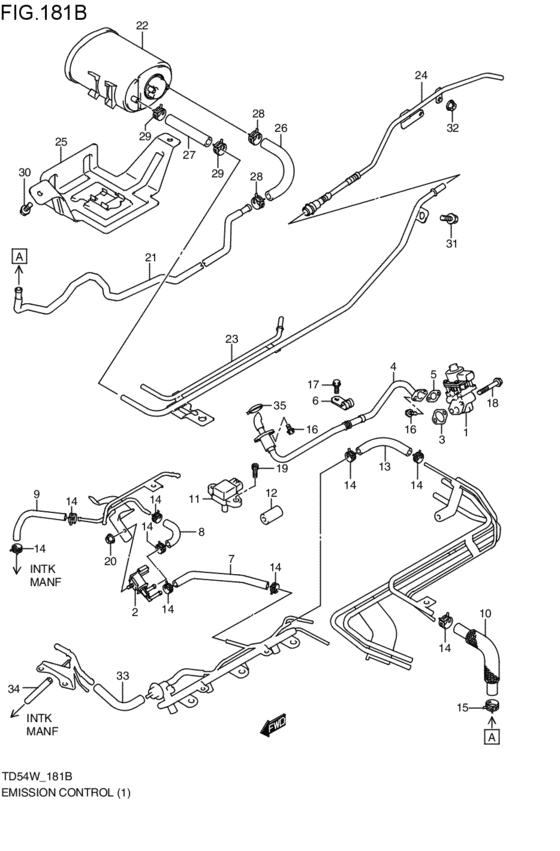

emission control (J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XGF
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-69G00-000
バルブ,EGR
J20A; 2005-05-01~2006-06-01 |
18111-69G00-000 |
— | ||
| replacement | |||||
|
1
|
1
18111-69G01-000 VALVE,EGRJ20A; 2005-05-01~2006-06-01 |
18111-69G01-000 |
US $612.80 |
||
|
2
|
2
18117-52G10-000 VALVE,CANISTER PURGEJ20A; 2005-05-01~2006-06-01 |
18117-52G10-000 |
from US $76.18 |
||
|
3
|
3
18529-69G00-000 GASKET,EGR VALVEJ20A; 2005-05-01~2006-06-01 |
18529-69G00-000 |
US $1.92 |
||
|
4
|
4
18530-65J00-000 PIPE,EGRJ20A; 2005-05-01~2006-06-01 |
18530-65J00-000 |
US $112.24 |
||
|
5
|
5
18533-77E00-000 GASKET,EGR PIPEJ20A; 2005-05-01~2006-06-01 |
18533-77E00-000 |
US $2.28 |
||
|
6
|
6
18536-65J00-000 CLAMP,EGR PIPEJ20A; 2005-05-01~2006-06-01 |
18536-65J00-000 |
US $2.13 |
||
|
7
|
7
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>250; J20A; 2005-05-01~2006-06-01 |
09355-54115-600 |
from US $7.20 |
||
|
8
|
8
18563-65J00-000
ホース,パージ(バルブツーパイプ)
バルブ ツー パイプ; J20A; 2005-05-01~2006-06-01 |
18563-65J00-000 |
— | ||
| replacements | |||||
|
8
|
8
09401-11419-000 CLIPバルブ ツー パイプ; J20A; 2005-05-01~2006-06-01 |
09401-11419-000 |
from US $4.20 |
||
|
8
|
8
18563-65J01-000 HOSE,PURGE VSV TO PIPEバルブ ツー パイプ; J20A; 2005-05-01~2006-06-01 |
18563-65J01-000 |
US $5.67 |
||
|
9
|
9
18564-65J00-000
ホース,パージ(パイプツーマニホールド)
パイプ ツー マニホールド; J20A; 2005-05-01~2006-06-01 |
18564-65J00-000 |
— | ||
| replacements | |||||
|
9
|
9
09401-11419-000 CLIPパイプ ツー マニホールド; J20A; 2005-05-01~2006-06-01 |
09401-11419-000 |
from US $4.20 |
||
|
9
|
9
18564-65J01-000
Hose,purge(pipe to inmf)
パイプ ツー マニホールド; J20A; 2005-05-01~2006-06-01 |
18564-65J01-000 |
— | ||
|
10
|
10
18567-65J00-000
ホース,パージ(ボディツーエンジン)
ボデー ツー エンジン; J20A; 2005-05-01~2006-06-01 |
18567-65J00-000 |
— | ||
| replacements | |||||
|
10
|
10
09401-11419-000 CLIPボデー ツー エンジン; J20A; 2005-05-01~2006-06-01 |
09401-11419-000 |
from US $4.20 |
||
|
10
|
10
09401-12404-000 CLIPClip ボデー ツー エンジン; J20A; 2005-05-01~2006-06-01 |
09401-12404-000 |
from US $1.52 |
||
|
10
|
10
18567-65J02-000 HOSE,PURGE BODY TO ENGボデー ツー エンジン; J20A; 2005-05-01~2006-06-01 |
18567-65J02-000 |
US $10.12 |
||
|
11
|
11
18590-72F21-000
SENSOR,PRESSURE
J20A; 2005-05-01~2006-06-01 |
18590-72F21-000 |
— | ||
| replacement | |||||
|
11
|
11
18590-68H00-000 SENSOR,PRESSURESensor, pressure J20A; 2005-05-01~2006-06-01 |
18590-68H00-000 |
from US $214.40 |
||
|
12
|
12
09250-04003-000 PLUG(OD:8)Plug (od:8) J20A; 2005-05-01~2005-06-01 |
09250-04003-000 |
US $1.12 |
||
| replacement | |||||
|
12
|
12
07130-0510B-000 BOLTBolt, sensor J20A; 2005-05-01~2005-06-01 |
07130-0510B-000 |
from US $0.96 |
||
|
13
|
13
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>180; J20A; 2005-05-01~2006-06-01 |
09355-54115-600 |
from US $7.20 |
||
|
14
|
14
09401-10409-000 CLIPJ20A; 2005-05-01~2006-06-01 |
09401-10409-000 |
from US $1.12 |
||
|
15
|
15
09401-11419-000 CLIPJ20A; 2005-05-01~2006-06-01 |
09401-11419-000 |
from US $4.20 |
||
|
16
|
16
01550-06163-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0616B-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-0616B-000 |
from US $0.76 |
||
|
16
|
16
01550-0616A-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-0616A-000 |
from US $0.76 |
||
|
17
|
17
01550-06163-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0616B-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-0616B-000 |
from US $0.76 |
||
|
17
|
17
01550-0616A-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-0616A-000 |
from US $0.76 |
||
|
18
|
18
01550-08503-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-0850B-000 BoltJ20A; 2005-05-01~2006-06-01 |
01550-0850B-000 |
from US $1.22 |
||
|
19
|
19
07130-05163-000
Bolt
J20A; 2005-05-01~2006-06-01 |
07130-05163-000 |
— | ||
| replacement | |||||
|
19
|
19
07130-0516A-000 BoltJ20A; 2005-05-01~2006-06-01 |
07130-0516A-000 |
from US $3.67 |
||
|
20
|
20
08316-10063-000
Nut
J20A; 2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
20
|
20
08316-1006B-000 NUTJ20A; 2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
|
21
|
21
18351-65J00-000
パイプ,パージ
J20A; 2005-05-01~2006-06-01 |
18351-65J00-000 |
— | ||
| replacement | |||||
|
21
|
21
18351-65J03-000 PIPE,PURGEJ20A; 2005-05-01~2006-06-01 |
18351-65J03-000 |
US $32.20 |
||
|
22
|
22
18560-76A31-000 CANISTERJ20A; 2005-05-01~2006-06-01 |
18560-76A31-000 |
US $95.68 |
||
|
23
|
23
18566-65J00-000
PIPE,CSTR AIR SUCTION
J20A; 2005-05-01~2006-06-01 |
18566-65J00-000 |
— | ||
|
24
|
24
18569-65J00-000
パイプ,キャニスタエアサクション
J20A; 2005-05-01~2006-06-01 |
18569-65J00-000 |
— | ||
| replacements | |||||
|
24
|
24
18565-65J20-000 CLAMP,SUCTION PIPEJ20A; 2005-05-01~2006-06-01 |
18565-65J20-000 |
US $1.91 |
||
|
24
|
24
18569-78K10-000 PIPE,CSTR AIR SUCTIONJ20A; 2005-05-01~2006-06-01 |
18569-78K10-000 |
US $41.95 |
||
|
25
|
25
18570-65J00-000 BRACKET,CANISTERJ20A; 2005-05-01~2006-06-01 |
18570-65J00-000 |
US $48.80 |
||
|
26
|
26
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>170; J20A; 2005-05-01~2006-06-01 |
09355-54115-600 |
from US $7.20 |
||
|
27
|
27
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>140; J20A; 2005-05-01~2006-06-01 |
09355-70125-600 |
from US $6.54 |
||
| replacement | |||||
|
27
|
27
44421-12FR0-000 HOSEL:600>140; J20A; 2005-05-01~2006-06-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
28
|
28
09401-10409-000 CLIPJ20A; 2005-05-01~2006-06-01 |
09401-10409-000 |
from US $1.12 |
||
|
29
|
29
09401-11415-000 CLIPJ20A; 2005-05-01~2006-06-01 |
09401-11415-000 |
from US $1.06 |
||
|
30
|
30
01550-08163-000
Bolt, holder
J20A; 2005-05-01~2006-06-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0816B-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-0816B-000 |
from US $0.91 |
||
|
30
|
30
01550-0816A-000 BOLTBolt, rear J20A; 2005-05-01~2006-06-01 |
01550-0816A-000 |
from US $0.91 |
||
|
31
|
31
01550-08163-000
Bolt, holder
J20A; 2005-05-01~2006-06-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0816B-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-0816B-000 |
from US $0.91 |
||
|
31
|
31
01550-0816A-000 BOLTBolt, rear J20A; 2005-05-01~2006-06-01 |
01550-0816A-000 |
from US $0.91 |
||
|
32
|
32
08316-10063-000
Nut
J20A; 2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
32
|
32
08316-1006B-000 NUTJ20A; 2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
|
33
|
33
18418-65J00-000
ホース,バキューム(レギュレータツーパイプ)
レギュレータ ツー パイプ; J20A; 2005-05-01~2005-06-01 |
18418-65J00-000 |
— | ||
| replacements | |||||
|
33
|
33
09355-35754-601
HOSE(3.5X7.5X601)
レギュレータ ツー パイプ; J20A; 2005-05-01~2005-06-01 |
09355-35754-601 |
— | ||
|
33
|
33
09355-35006-601 Hose(3.5X7.5X601)レギュレータ ツー パイプ; J20A; 2005-05-01~2005-06-01 |
09355-35006-601 |
from US $5.78 |
||
|
33
|
33
09355-35754-601
HOSE(3.5X7.5X601)
L:601>70; J20A; 2005-07-01~2005-11-01 |
09355-35754-601 |
— | ||
|
34
|
34
18419-65J00-000
HOSE,VACUUM PIPE TO INMF
パイプ ツー マニホールド; J20A; 2005-05-01~2005-06-01 |
18419-65J00-000 |
— | ||
|
34
|
34
18419-65J01-000
ホース,バキューム(パイプツーマニホールド)
パイプ ツー マニホールド; J20A; 2005-07-01~2006-06-01 |
18419-65J01-000 |
— | ||
| replacement | |||||
|
34
|
34
18419-65J02-000 HOSE,VACUUM PIPE TO MANFパイプ ツー マニホールド; J20A; 2005-07-01~2006-06-01 |
18419-65J02-000 |
US $7.10 |
||
|
35
|
35
18534-86G00-000 GASKET,EGR PIPEJ20A; 2005-05-01~2006-06-01 |
18534-86G00-000 |
US $11.36 |
||
