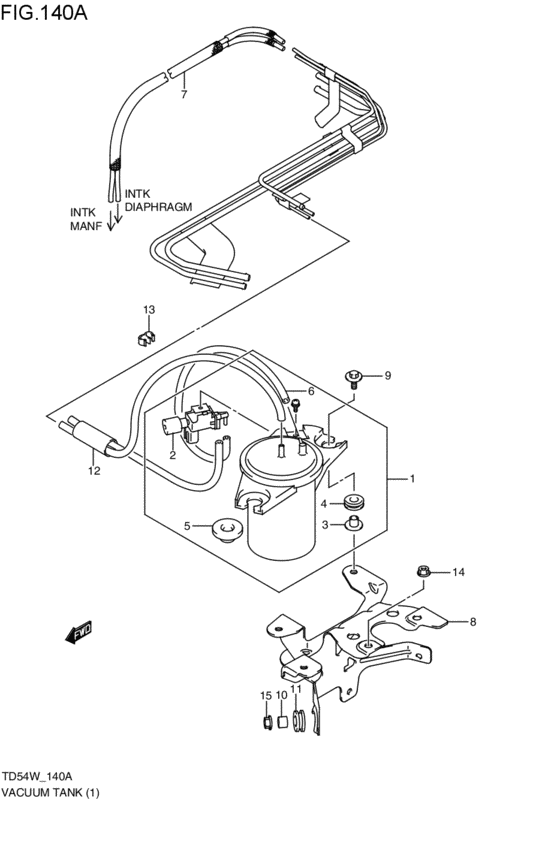

バキユ - ムタンク (J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XGF
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13480-65J00-000 TANK ASSY,VACUUMJ20A; 2005-05-01~2006-06-01 |
13480-65J00-000 |
US $211.20 |
||
|
2
|
2
1348A-65J00-000 VALVE,VACUUM SWITCHINGJ20A; 2005-05-01~2006-06-01 |
1348A-65J00-000 |
US $111.20 |
||
|
3
|
3
13484-65J00-000 COLLARJ20A; 2005-05-01~2006-06-01 |
13484-65J00-000 |
US $6.15 |
||
|
4
|
4
13488-65J00-000 CUSHION,NO.1J20A; 2005-05-01~2006-06-01 |
13488-65J00-000 |
US $5.12 |
||
|
5
|
5
13489-65J00-000 CUSHION,NO.2J20A; 2005-05-01~2006-06-01 |
13489-65J00-000 |
US $5.12 |
||
|
6
|
6
09355-35754-601
HOSE(3.5X7.5X601)
L:601>230; J20A; 2005-05-01~2006-06-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
6
|
6
09355-35006-601 Hose(3.5X7.5X601)L:601>230; J20A; 2005-05-01~2006-06-01 |
09355-35006-601 |
from US $5.78 |
||
|
7
|
7
13482-65J00-000
HOSE ASSY,VACUUM
J20A; 2005-05-01~2006-06-01 |
13482-65J00-000 |
— | ||
| replacement | |||||
|
7
|
7
13482-65J01-000 Hose Assy,vacuumJ20A; 2005-05-01~2006-06-01 |
13482-65J01-000 |
US $13.95 |
||
|
8
|
8
13485-65J00-000
ブラケット,バキュームタンク
J20A; 2005-05-01~2006-06-01 |
13485-65J00-000 |
— | ||
| replacement | |||||
|
8
|
8
13485-65J02-000 BRACKET,VACUUM TANKJ20A; 2005-05-01~2006-06-01 |
13485-65J02-000 |
US $19.14 |
||
|
9
|
9
09116-06167-000 BOLT(6X20)Bolt (6x20) J20A; 2005-05-01~2006-06-01 |
09116-06167-000 |
from US $1.37 |
||
|
10
|
10
09180-06132-000 SPACER(6.5X13.5X7.5)Spacer (6.5x13.5x7.5) J20A; 2005-05-01~2006-06-01 |
09180-06132-000 |
US $34.20 |
||
|
11
|
11
09320-12036-000 CUSHIONCushion, holder J20A; 2005-05-01~2006-06-01 |
09320-12036-000 |
from US $1.92 |
||
|
12
|
12
13483-65J00-000
HOSE ASSY,VACUUM NO.2
J20A; 2005-05-01~2005-07-01 |
13483-65J00-000 |
— | ||
|
12
|
12
13483-65J01-000
HOSE ASSY,VACUUM NO.2
J20A; 2005-07-01~2006-06-01 |
13483-65J01-000 |
— | ||
| replacement | |||||
|
12
|
12
13483-65J02-000 Hose Assy,vacuum No.2J20A; 2005-07-01~2006-06-01 |
13483-65J02-000 |
US $7.62 |
||
|
13
|
13
09408-00033-000 CLAMPClamp J20A; 2005-05-01~2006-06-01 |
09408-00033-000 |
from US $1.60 |
||
|
14
|
14
08316-10063-000
Nut
J20A; 2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUTJ20A; 2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
09159-06081-000 NUTJ20A; 2005-05-01~2006-06-01 |
09159-06081-000 |
US $12.50 |
||
