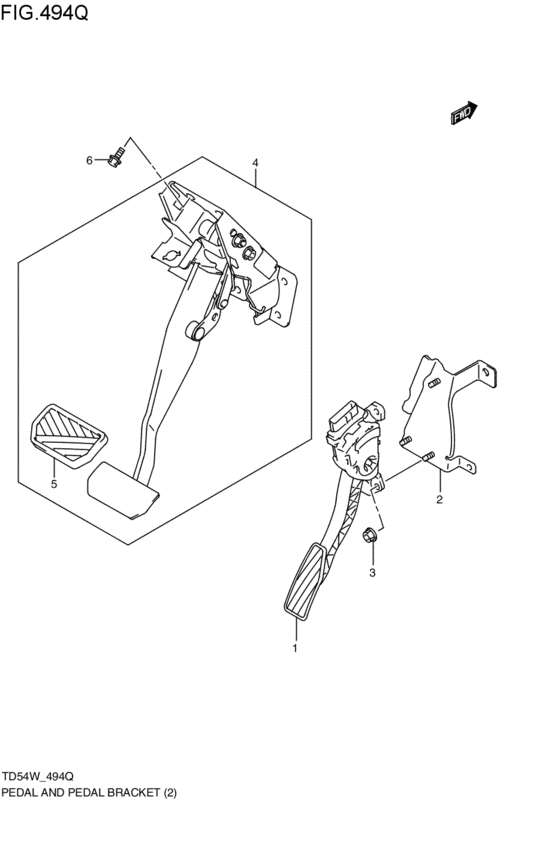

pedal / pedal bracket (AT; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XGF
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15900-65J01-000
センサアッシ,アクセレレータペダル
AT; 2005-05-01~2006-06-01 |
15900-65J01-000 |
— | ||
| replacement | |||||
|
1
|
1
15900-65J10-000 PEDAL ASSY,ACCELERATORAT; 2005-05-01~2006-06-01 |
15900-65J10-000 |
from US $189.59 |
||
|
2
|
2
49510-65J00-000 BRACKET,ACCELERATOR PEDALAT; 2005-05-01~2006-06-01 |
49510-65J00-000 |
US $21.34 |
||
|
3
|
3
09159-06076-000 NUTAT; 2005-05-01~2006-06-01 |
09159-06076-000 |
from US $1.28 |
||
|
4
|
4
49600-66J00-000
Pedal assy,brake
AT; 2005-05-01~2006-06-01 |
49600-66J00-000 |
— | ||
| replacement | |||||
|
4
|
4
49600-76K10-000 PEDAL ASSY,BRAKEAT; 2005-05-01~2006-06-01 |
49600-76K10-000 |
US $176.64 |
||
|
5
|
5
49751-58J10-000 PAD,PEDALAT; 2005-05-01~2006-06-01 |
49751-58J10-000 |
from US $4.91 |
||
|
6
|
6
01550-08163-000
Bolt, holder
AT; 2005-05-01~2006-06-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0816B-000 BOLTAT; 2005-05-01~2006-06-01 |
01550-0816B-000 |
from US $0.91 |
||
|
6
|
6
01550-0816A-000 BOLTBolt, rear AT; 2005-05-01~2006-06-01 |
01550-0816A-000 |
from US $0.91 |
||
