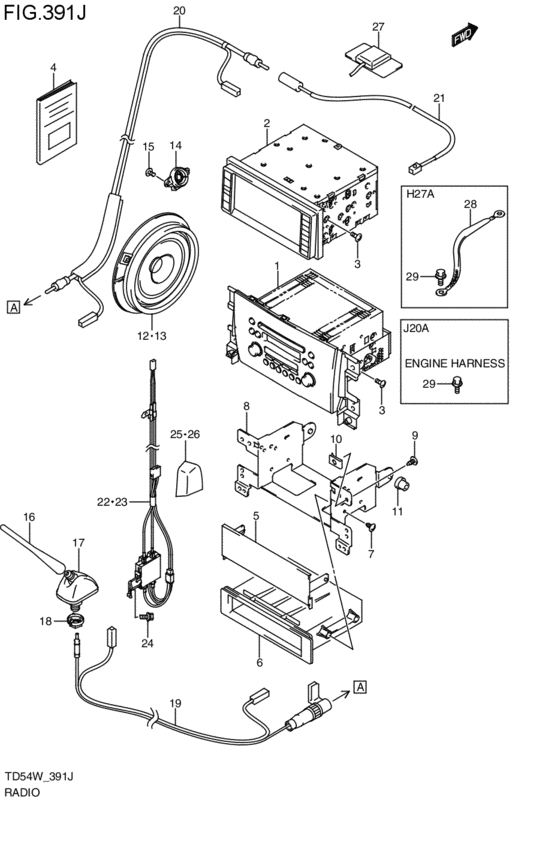

radio (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XGF
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39101-65J10-ZEW
チューナアッシ(ブラック)
ブラック,CLARION; XGF; 2005-12-01~2006-06-01 |
39101-65J10-ZEW |
— | ||
|
4
|
4
39103-63J11-000
マニュアル,オーディオ
CLARION; XGF; 2005-12-01~2006-06-01 |
39103-63J11-000 |
— | ||
|
8
|
8
39321-65J00-000 BRACKET,TUNERXGF; 2005-12-01~2006-06-01 |
39321-65J00-000 |
US $12.92 |
||
|
9
|
9
03541-05123-000
Screw
2005-05-01~2006-06-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
03541-0512B-000 SCREW2005-05-01~2006-06-01 |
03541-0512B-000 |
from US $0.76 |
||
|
10
|
10
09148-05045-000 NUT2005-05-01~2006-06-01 |
09148-05045-000 |
from US $0.81 |
||
|
11
|
11
34955-54G10-000 BUSH,RADIO BRKT2005-05-01~2006-06-01 |
34955-54G10-000 |
US $1.44 |
||
|
12
|
12
39102-65J10-000
スピーカアッシ,ライト
フロント/リヤ スピーカ ライト; 2005-05-01~2006-06-01 |
39102-65J10-000 |
— | ||
| replacement | |||||
|
12
|
12
39102-65J30-000 SPEAKER ASSYフロント/リヤ スピーカ ライト; 2005-05-01~2006-06-01 |
39102-65J30-000 |
US $32.57 |
||
|
13
|
13
39102-65J00-000
スピーカアッシ,レフト
フロント/リヤ スピーカ レフト; 2005-05-01~2006-06-01 |
39102-65J00-000 |
— | ||
| replacement | |||||
|
13
|
13
39102-65J30-000 SPEAKER ASSYフロント/リヤ スピーカ レフト; 2005-05-01~2006-06-01 |
39102-65J30-000 |
US $32.57 |
||
|
14
|
14
39102-65J20-000 SPEAKER ASSY,TWEETER2005-05-01~2006-06-01 |
39102-65J20-000 |
from US $15.46 |
||
|
15
|
15
03541-04103-000
Screw
2005-05-01~2006-06-01 |
03541-04103-000 |
— | ||
| replacement | |||||
|
15
|
15
03541-0410A-000 SCREW2005-05-01~2006-06-01 |
03541-0410A-000 |
from US $0.80 |
||
|
16
|
16
39251-63J00-000 ROD,ANTENNA2005-05-01~2006-06-01 |
39251-63J00-000 |
US $35.20 |
||
|
17
|
17
39253-64J10-000 ベース,アンテナ2005-05-01~2006-06-01 |
39253-64J10-000 |
US $83.54 |
||
|
18
|
18
39269-64J00-000 NUT,ANTENNA2005-05-01~2006-06-01 |
39269-64J00-000 |
US $9.42 |
||
|
19
|
19
39271-66J00-000
フィーダ,アンテナバック
2005-05-01~2006-06-01 |
39271-66J00-000 |
— | ||
| replacement | |||||
|
19
|
19
39271-66JC0-000 FEEDER,ANT BACK2005-05-01~2006-06-01 |
39271-66JC0-000 |
US $49.41 |
||
|
20
|
20
39271-65J10-000
フィーダ,アンテナルーフ
2005-05-01~2006-06-01 |
39271-65J10-000 |
— | ||
| replacement | |||||
|
20
|
20
39271-65JB0-000 FEEDER,ANT ROOF2005-05-01~2006-06-01 |
39271-65JB0-000 |
US $38.64 |
||
|
21
|
21
39270-64J00-000
フィーダ,アンテナインストゥルメントパネル
XE,XGF; 2005-05-01~2006-06-01 |
39270-64J00-000 |
— | ||
| replacement | |||||
|
21
|
21
39270-64JA0-000 FEEDER,ANT I/PXE,XGF; 2005-05-01~2006-06-01 |
39270-64JA0-000 |
US $23.74 |
||
|
29
|
29
09115-06001-000
Bolt, lh
2005-05-01~2006-06-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
29
|
29
09115-06005-000 BOLT(6X16)2005-05-01~2006-06-01 |
09115-06005-000 |
US $1.28 |
||
