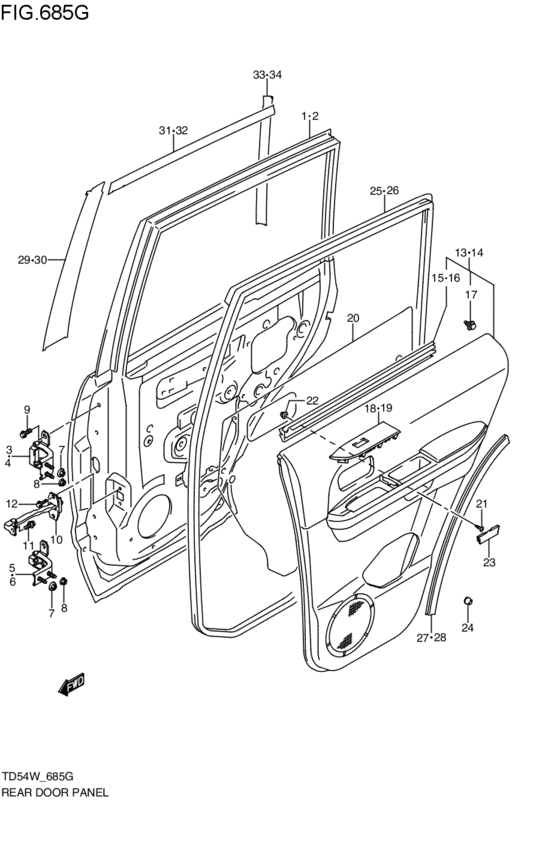

rear door panel (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XGF
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-65831-000
パネルアッシ,リヤドア,ライト
2005-05-01~2006-06-01 |
68003-65831-000 |
— | ||
| replacement | |||||
|
1
|
1
68003-65833-000 PANEL SET,RR DR,R2005-05-01~2006-06-01 |
68003-65833-000 |
US $591.36 |
||
|
2
|
2
68004-65831-000
パネルアッシ,リヤドア,レフト
2005-05-01~2006-06-01 |
68004-65831-000 |
— | ||
| replacement | |||||
|
2
|
2
68004-65833-000 PANEL SET,RR DR,L2005-05-01~2006-06-01 |
68004-65833-000 |
US $591.36 |
||
|
3
|
3
69410-63J00-000 HINGE,RR DR UPR,R2005-05-01~2006-06-01 |
69410-63J00-000 |
US $32.57 |
||
|
4
|
4
69420-63J00-000 HINGE,RR DR UPR,L2005-05-01~2006-06-01 |
69420-63J00-000 |
US $32.57 |
||
|
5
|
5
69430-63J00-000 HINGE,RR DR LWR,R2005-05-01~2006-06-01 |
69430-63J00-000 |
US $32.57 |
||
|
6
|
6
69440-63J00-000 HINGE,RR DR LWR,L2005-05-01~2006-06-01 |
69440-63J00-000 |
US $32.57 |
||
|
7
|
7
09159-08132-000 NUT2005-05-01~2006-06-01 |
09159-08132-000 |
US $14.40 |
||
|
8
|
8
08316-2008A-000 NUT2005-05-01~2006-06-01 |
08316-2008A-000 |
from US $0.80 |
||
|
9
|
9
09103-08389-000 BOLT(8X24)2005-05-01~2006-06-01 |
09103-08389-000 |
US $17.30 |
||
|
10
|
10
81830-65J00-000
ストップ,リヤドアオープン
2005-05-01~2006-06-01 |
81830-65J00-000 |
— | ||
| replacement | |||||
|
10
|
10
81830-65J02-000 STOP,REAR DOOR OPEN2005-05-01~2006-06-01 |
81830-65J02-000 |
US $44 |
||
|
11
|
11
09112-08004-000 BOLT(8X25)2005-05-01~2006-06-01 |
09112-08004-000 |
US $1.22 |
||
|
12
|
12
02162-06203-000
Bolt
2005-05-01~2006-06-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
12
|
12
02162-0620C-000 SCREW2005-05-01~2006-06-01 |
02162-0620C-000 |
from US $0.80 |
||
|
13
|
13
83730-65J00-CAW
トリム,リヤドア,ライト
ブラック/グレー; 2005-05-01~2006-06-01 |
83730-65J00-CAW |
— | ||
| replacements | |||||
|
13
|
13
83730-65J02-FWH
TRIM,RR DR,R
ブラック/グレー; 2005-05-01~2006-06-01 |
83730-65J02-FWH |
— | ||
|
13
|
13
83730-65J03-FWH TRIM,RR DR,Rブラック/グレー; 2005-05-01~2006-06-01 |
83730-65J03-FWH |
US $450.56 |
||
|
14
|
14
83740-65J00-CAW
トリム,リヤドア,レフト
ブラック/グレー; 2005-05-01~2006-06-01 |
83740-65J00-CAW |
— | ||
| replacements | |||||
|
14
|
14
83740-65J02-FWH
TRIM,RR DR,L
ブラック/グレー; 2005-05-01~2006-06-01 |
83740-65J02-FWH |
— | ||
|
14
|
14
83740-65J03-FWH TRIM,RR DR,Lブラック/グレー; 2005-05-01~2006-06-01 |
83740-65J03-FWH |
US $450.56 |
||
|
15
|
15
83739-65J00-000 WEATHERSTRIP,RR DR INR,R2005-05-01~2006-06-01 |
83739-65J00-000 |
US $39.20 |
||
|
16
|
16
83749-65J00-000 WEATHERSTRIP,RR DR INR,L2005-05-01~2006-06-01 |
83749-65J00-000 |
US $39.20 |
||
|
17
|
17
09409-10312-000 CLIP2005-05-01~2006-06-01 |
09409-10312-000 |
US $1.76 |
||
|
18
|
18
83737-65J00-5PK BEZEL,P/W SWITCH RR,Rブラック; 2005-05-01~2006-06-01 |
83737-65J00-5PK |
US $41.60 |
||
|
19
|
19
83747-65J00-5PK BEZEL,P/W SWITCH RR,Lブラック; 2005-05-01~2006-06-01 |
83747-65J00-5PK |
US $41.60 |
||
|
20
|
20
83913-65J00-000 COVER,RR DR SEALING2005-05-01~2006-06-01 |
83913-65J00-000 |
US $5.12 |
||
|
21
|
21
03242-06163-000
Screw
2005-05-01~2006-06-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
21
|
21
03241-0616C-000 SCREW2005-05-01~2006-06-01 |
03241-0616C-000 |
from US $0.76 |
||
|
22
|
22
09148-06007-000 NUT2005-05-01~2006-06-01 |
09148-06007-000 |
US $0.91 |
||
|
23
|
23
83715-65J00-5PK CAP,DR TRIM,Rブラック; 2005-05-01~2006-06-01 |
83715-65J00-5PK |
US $1.98 |
||
|
24
|
24
82711-65J00-000 CUSHION2005-05-01~2006-06-01 |
82711-65J00-000 |
US $2.80 |
||
|
25
|
25
84661-65J00-000 WEATHERSTRIP,RR DR OPNG,R2005-05-01~2006-06-01 |
84661-65J00-000 |
US $126.40 |
||
|
26
|
26
84671-65J00-000 WEATHERSTRIP,RR DR OPNG,L2005-05-01~2006-06-01 |
84671-65J00-000 |
US $126.40 |
||
|
27
|
27
84662-65J02-000
ウェザストリップ,リヤドアダスト,ライト
2005-05-01~2006-06-01 |
84662-65J02-000 |
— | ||
| replacement | |||||
|
27
|
27
84662-65J04-000 WEATHERSTRIP,RR DR DUST,R2005-05-01~2006-06-01 |
84662-65J04-000 |
US $46.40 |
||
|
28
|
28
84672-65J02-000
ウェザストリップ,リヤドアダスト,レフト
2005-05-01~2006-06-01 |
84672-65J02-000 |
— | ||
| replacement | |||||
|
28
|
28
84672-65J04-000 WEATHERSTRIP,RR DR DUST,L2005-05-01~2006-06-01 |
84672-65J04-000 |
US $46.40 |
||
|
29
|
29
83927-65J00-0CB
Tape,rear door sash pillar,r
ブラック; 2005-05-01~2006-06-01 |
83927-65J00-0CB |
— | ||
| replacement | |||||
|
29
|
29
83927-65J10-0CB TAPE,RR DOOR SASH PLR,Rブラック; 2005-05-01~2006-06-01 |
83927-65J10-0CB |
US $45.60 |
||
|
30
|
30
83928-65J00-0CB
Tape,rear door sash pillar,l
ブラック; 2005-05-01~2006-06-01 |
83928-65J00-0CB |
— | ||
| replacement | |||||
|
30
|
30
83928-65J10-0CB TAPE,RR DOOR SASH PLR,Lブラック; 2005-05-01~2006-06-01 |
83928-65J10-0CB |
US $45.60 |
||
|
31
|
31
83915-65J00-0CB
Tape,rear door sash roof,r
ブラック; 2005-05-01~2006-06-01 |
83915-65J00-0CB |
— | ||
| replacement | |||||
|
31
|
31
83915-65J01-0CB TAPE,RR SASH ROOF,Rブラック; 2005-05-01~2006-06-01 |
83915-65J01-0CB |
US $26.31 |
||
|
32
|
32
83916-65J00-0CB
Tape,rear door sash roof,l
ブラック; 2005-05-01~2006-06-01 |
83916-65J00-0CB |
— | ||
| replacement | |||||
|
32
|
32
83916-65J01-0CB TAPE,RR SASH ROOF,Lブラック; 2005-05-01~2006-06-01 |
83916-65J01-0CB |
US $26.31 |
||
|
33
|
33
83917-65J00-0CB
Tape,rear door sash c-pillar,r
ブラック; 2005-05-01~2006-06-01 |
83917-65J00-0CB |
— | ||
| replacement | |||||
|
33
|
33
83917-65J01-0CB TAPE,RR DR SASH C-PLR,Rブラック; 2005-05-01~2006-06-01 |
83917-65J01-0CB |
US $21.90 |
||
|
34
|
34
83918-65J00-0CB
Tape,rear door sash c-pillar,l
ブラック; 2005-05-01~2006-06-01 |
83918-65J00-0CB |
— | ||
| replacement | |||||
|
34
|
34
83918-65J01-0CB TAPE,RR DR SASH C-PLR,Lブラック; 2005-05-01~2006-06-01 |
83918-65J01-0CB |
US $21.90 |
||
