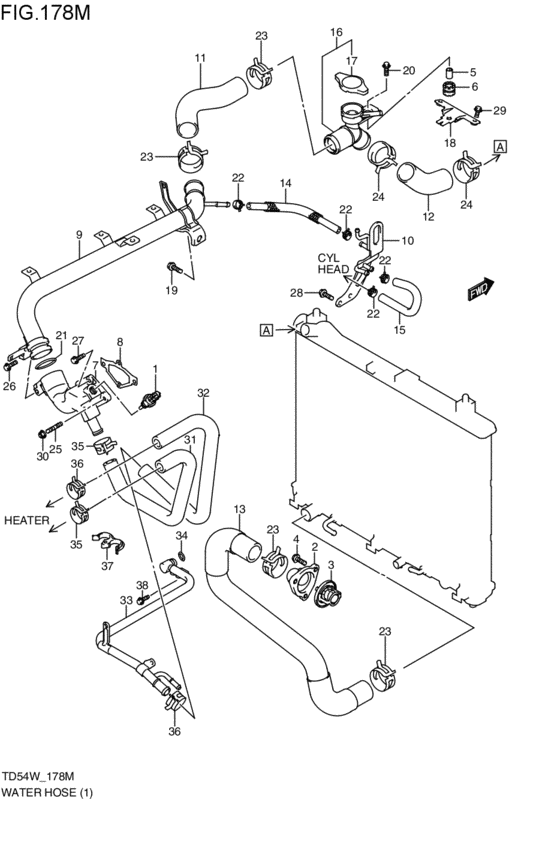

water hose (J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XGF
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13650-73H00-000 Sensor,water TempJ20A; 2005-05-01~2006-06-01 |
13650-73H00-000 |
from US $28.19 |
||
|
2
|
2
17560-77EA0-000
Cap,wtr thermostat
J20A; 2005-05-01~2006-06-01 |
17560-77EA0-000 |
— | ||
| replacement | |||||
|
2
|
2
17560-57L00-000 CAP,WTR THERMOSTATJ20A; 2005-05-01~2006-06-01 |
17560-57L00-000 |
from US $16.34 |
||
|
3
|
3
17670-65D00-000 THERMOSTAT,WATER 82 DEGJ20A; 2005-05-01~2006-06-01 |
17670-65D00-000 |
from US $21.12 |
||
|
4
|
4
01550-06203-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
4
|
4
01550-0620B-000 BOLTBolt, inspection cap J20A; 2005-05-01~2006-06-01 |
01550-0620B-000 |
from US $0.76 |
||
|
5
|
5
13877-65D00-000 COLLAR,7.6X10X19.3J20A; 2005-05-01~2006-06-01 |
13877-65D00-000 |
US $3.04 |
||
|
6
|
6
13878-65D00-000 CUSHION,12.5X22X19.5J20A; 2005-05-01~2006-06-01 |
13878-65D00-000 |
US $2.74 |
||
|
7
|
7
17570-65J00-000 CAP,WATER OUTLETJ20A; 2005-05-01~2006-06-01 |
17570-65J00-000 |
from US $83.54 |
||
|
8
|
8
17579-77EA0-000 GASKET,WTR OUTLET CAPJ20A; 2005-05-01~2006-06-01 |
17579-77EA0-000 |
from US $4.59 |
||
|
9
|
9
17580-65J00-000 PIPE,WTR OUTLETJ20A; 2005-05-01~2006-06-01 |
17580-65J00-000 |
from US $45.32 |
||
|
10
|
10
17590-65J00-000 PIPE,WTR BYPASSJ20A; 2005-05-01~2006-06-01 |
17590-65J00-000 |
from US $35.15 |
||
|
11
|
11
17841-65J00-000 HOSE,RADIATOR INLETJ20A; 2005-05-01~2006-06-01 |
17841-65J00-000 |
US $25.60 |
||
|
12
|
12
17842-64J00-000 HOSE,RDTR INLET NO.2J20A; 2005-05-01~2006-06-01 |
17842-64J00-000 |
US $19.20 |
||
|
13
|
13
17851-65J00-000 HOSE,RADIATOR OUTLETJ20A; 2005-05-01~2006-06-01 |
17851-65J00-000 |
US $68.80 |
||
|
14
|
14
17852-65D00-000 HOSE,WTR BYPASS NO.2J20A; 2005-05-01~2006-06-01 |
17852-65D00-000 |
from US $9.07 |
||
|
15
|
15
17859-65J00-000 HOSE,WTR BYPASSJ20A; 2005-05-01~2006-06-01 |
17859-65J00-000 |
from US $8.60 |
||
|
16
|
16
17910-65J00-000 NECK ASSY,WTR FILLERJ20A; 2005-05-01~2006-06-01 |
17910-65J00-000 |
US $94.40 |
||
|
17
|
17
17920-75F00-000 CAP,RADIATORJ20A; 2005-05-01~2006-06-01 |
17920-75F00-000 |
from US $13.83 |
||
|
18
|
18
17915-65J00-000 BRACKET,FILLER NECKJ20A; 2005-05-01~2006-06-01 |
17915-65J00-000 |
US $4.16 |
||
|
19
|
19
09103-10310-000 BOLT(10X20)Bolt (10x20) J20A; 2005-05-01~2006-06-01 |
09103-10310-000 |
from US $1.67 |
||
|
20
|
20
09116-06172-000 BOLT(6X30)Bolt (6x30) J20A; 2005-05-01~2006-06-01 |
09116-06172-000 |
from US $1.44 |
||
|
21
|
21
09280-34005-000 O RING(D:3.5,ID:33.7)J20A; 2005-05-01~2006-06-01 |
09280-34005-000 |
from US $2.08 |
||
|
22
|
22
09401-12410-000 CLIPClip, filter outlet J20A; 2005-05-01~2006-06-01 |
09401-12410-000 |
from US $1.19 |
||
|
23
|
23
09401-35403-000 CLIPJ20A; 2005-05-01~2006-06-01 |
09401-35403-000 |
from US $2.56 |
||
|
24
|
24
09401-35403-000 CLIPJ20A; 2005-05-01~2006-06-01 |
09401-35403-000 |
from US $2.56 |
||
|
25
|
25
01421-06203-000
Stud bolt (l:20)(green)
J20A; 2005-05-01~2006-06-01 |
01421-06203-000 |
— | ||
| replacement | |||||
|
25
|
25
01421-0620A-000 BOLT,STUDJ20A; 2005-05-01~2006-06-01 |
01421-0620A-000 |
from US $1.12 |
||
|
26
|
26
01550-06123-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0612B-000 BOLTBolt, clamp J20A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
26
|
26
01550-0612A-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
27
|
27
01550-06203-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
27
|
27
01550-0620B-000 BOLTBolt, inspection cap J20A; 2005-05-01~2006-06-01 |
01550-0620B-000 |
from US $0.76 |
||
|
28
|
28
01550-08203-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0820B-000 BoltJ20A; 2005-05-01~2006-06-01 |
01550-0820B-000 |
from US $0.91 |
||
|
28
|
28
01550-0820A-000 BOLTBolt, funnel bracket J20A; 2005-05-01~2006-06-01 |
01550-0820A-000 |
from US $0.96 |
||
|
29
|
29
02162-06123-000
Bolt (6x12)
J20A; 2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
29
|
29
02162-0612B-000 SCREWBolt J20A; 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
29
|
29
02162-0612A-000 SCREWBolt, bracket J20A; 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
30
|
30
08316-10063-000
Nut
J20A; 2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
30
|
30
08316-1006B-000 NUTJ20A; 2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
|
31
|
31
17871-65J00-000 HOSE,HTR INLETJ20A; 2005-05-01~2006-06-01 |
17871-65J00-000 |
US $32.80 |
||
|
32
|
32
17872-65J00-000 HOSE,HTR OUTLETJ20A; 2005-05-01~2006-06-01 |
17872-65J00-000 |
from US $10.37 |
||
|
33
|
33
17880-65J00-000 PIPE,HEATER OUTLETJ20A; 2005-05-01~2006-06-01 |
17880-65J00-000 |
from US $51.12 |
||
|
34
|
34
17889-77EA1-000 O-RING,HTR PIPEJ20A; 2005-05-01~2006-06-01 |
17889-77EA1-000 |
from US $2.14 |
||
|
35
|
35
09401-21405-000 CLIPJ20A; 2005-05-01~2006-06-01 |
09401-21405-000 |
US $1.60 |
||
|
36
|
36
09401-21405-000 CLIPJ20A; 2005-05-01~2006-06-01 |
09401-21405-000 |
US $1.60 |
||
|
37
|
37
09408-00117-000 CLAMPJ20A; 2005-05-01~2006-06-01 |
09408-00117-000 |
US $20.20 |
||
|
38
|
38
01550-06123-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-0612B-000 BOLTBolt, clamp J20A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
38
|
38
01550-0612A-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
