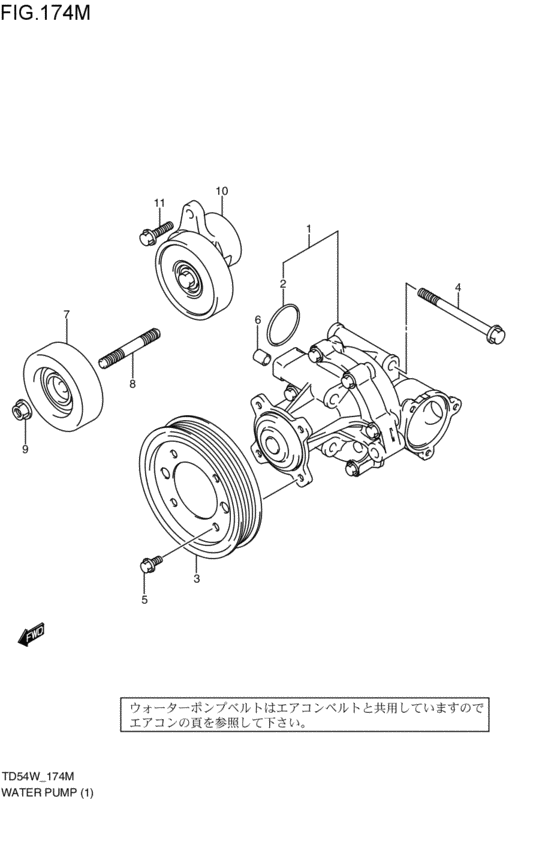

water pump (J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XGF
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-77812-000
ポンプセット,ウォータ
J20A; 2005-05-01~2006-06-01 |
17400-77812-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-77816-000
PUMP SET,WATER
J20A; 2005-05-01~2006-06-01 |
17400-77816-000 |
— | ||
|
2
|
2
17611-65J00-000 O-RING,WATER PUMPJ20A; 2005-05-01~2006-06-01 |
17611-65J00-000 |
US $19.60 |
||
|
3
|
3
17511-77E00-000 PULLEY,WATER PUMPJ20A; 2005-05-01~2006-06-01 |
17511-77E00-000 |
US $81.60 |
||
|
4
|
4
09103-08336-000 BOLT(8X90)J20A; 2005-05-01~2006-06-01 |
09103-08336-000 |
US $2.24 |
||
|
5
|
5
01550-06123-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp J20A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
6
|
6
04211-11129-000 PINJ20A; 2005-05-01~2006-06-01 |
04211-11129-000 |
from US $1.06 |
||
|
7
|
7
17530-77E00-000 PULLEY,GEN BELT IDLERJ20A; 2005-05-01~2006-06-01 |
17530-77E00-000 |
US $97.28 |
||
|
8
|
8
09108-10125-000 BOLT,STUDJ20A; 2005-05-01~2006-06-01 |
09108-10125-000 |
US $2.24 |
||
|
9
|
9
08316-10103-000
Nut
J20A; 2005-05-01~2006-06-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1010B-000 NUTJ20A; 2005-05-01~2006-06-01 |
08316-1010B-000 |
from US $0.80 |
||
|
10
|
10
17540-77E10-000 TENSIONER ASSY,GEN BELTJ20A; 2005-05-01~2006-06-01 |
17540-77E10-000 |
US $374.40 |
||
|
11
|
11
01550-08303-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0830B-000 BoltJ20A; 2005-05-01~2006-06-01 |
01550-0830B-000 |
from US $1.06 |
||
|
11
|
11
01550-0830A-000 BOLTBolt, mount oil seal cover J20A; 2005-05-01~2006-06-01 |
01550-0830A-000 |
from US $1.12 |
||
