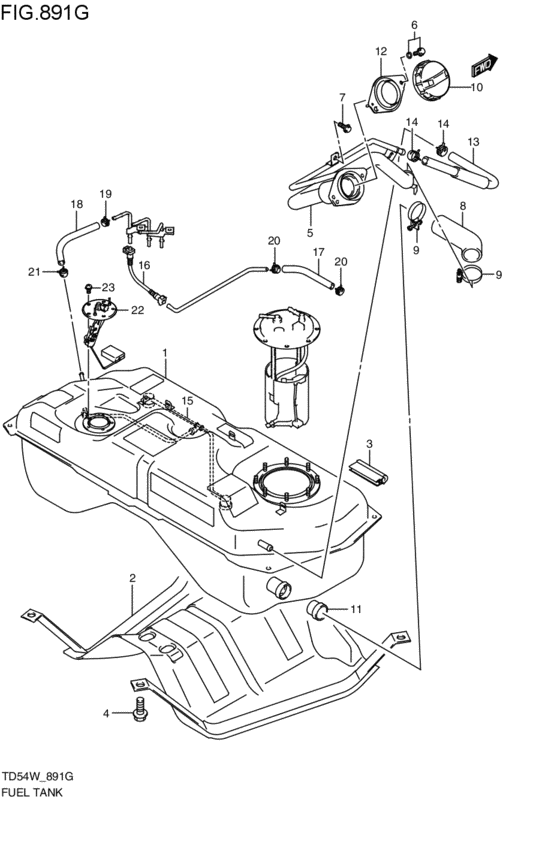

fuel tank (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XG
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89101-65J00-000
タンクアッシ,フューエル
2005-05-01~2006-06-01 |
89101-65J00-000 |
— | ||
| replacement | |||||
|
1
|
1
89101-65810-000 TANK ASSY,FUEL2005-05-01~2006-06-01 |
89101-65810-000 |
US $633.60 |
||
|
2
|
2
89190-65J00-000 PROTECTOR,FUEL TANK2005-05-01~2006-06-01 |
89190-65J00-000 |
US $253.92 |
||
|
3
|
3
89445-65J00-000
Protector,fuel tank flange
2005-05-01~2006-06-01 |
89445-65J00-000 |
— | ||
| replacement | |||||
|
3
|
3
89445-60G00-000 PROTECTOR,TANK FLANGE2005-05-01~2006-06-01 |
89445-60G00-000 |
US $6.48 |
||
|
4
|
4
09118-10073-000 BOLT(10X30)2005-05-01~2006-06-01 |
09118-10073-000 |
US $1.44 |
||
|
5
|
5
89201-65J10-000
ネックアッシ,フューエルフィラ
2005-05-01~2006-06-01 |
89201-65J10-000 |
— | ||
| replacement | |||||
|
5
|
5
89201-65J11-000 NECK ASSY,FUEL FILLER2005-05-01~2006-06-01 |
89201-65J11-000 |
US $259.20 |
||
|
6
|
6
09116-05022-000
ボルト,5X20
2005-05-01~2006-06-01 |
09116-05022-000 |
— | ||
| replacement | |||||
|
6
|
6
09116-05014-000 BOLT(5X20)2005-05-01~2006-06-01 |
09116-05014-000 |
US $1.82 |
||
|
7
|
7
09103-06265-000 BOLT(6X12)2005-05-01~2006-06-01 |
09103-06265-000 |
US $1.28 |
||
|
8
|
8
89241-65J00-000 HOSE,FUEL TANK FILLER2005-05-01~2006-06-01 |
89241-65J00-000 |
US $44 |
||
|
9
|
9
09400-45311-000 CLAMP2005-05-01~2006-06-01 |
09400-45311-000 |
US $1.92 |
||
|
10
|
10
89260-73H00-000 CAP ASSY,FUEL FILLER2005-05-01~2006-06-01 |
89260-73H00-000 |
from US $19.82 |
||
|
11
|
11
89270-75F00-000 VALVE,FUEL TANK INLET2005-05-01~2006-06-01 |
89270-75F00-000 |
US $7.90 |
||
|
12
|
12
89285-58J00-000 PACKING,FUEL FILLER2005-05-01~2006-06-01 |
89285-58J00-000 |
US $6.24 |
||
|
13
|
13
89290-65J00-000 HOSE,FUEL TANK BREATHER2005-05-01~2006-06-01 |
89290-65J00-000 |
US $13.14 |
||
|
14
|
14
09401-16403-000 CLIPClip, 2nd air hose no.2 2005-05-01~2006-06-01 |
09401-16403-000 |
from US $3.86 |
||
|
15
|
15
89401-65J00-000 VALVE ASSY,FUEL EVAP2005-05-01~2006-06-01 |
89401-65J00-000 |
US $114.08 |
||
|
16
|
16
89441-65J00-000 HOSE,EVAP PIPE OUTLET2005-05-01~2006-06-01 |
89441-65J00-000 |
US $26.50 |
||
|
17
|
17
09355-54128-600
Hose,5.4x12.2x600
L:600>120; 2005-05-01~2006-06-01 |
09355-54128-600 |
— | ||
| replacement | |||||
|
17
|
17
09355-56128-600 HOSE(5.6X12.4X600)L:600>120; 2005-05-01~2006-06-01 |
09355-56128-600 |
US $8.64 |
||
|
18
|
18
18563-52D10-000
HOSE,TANK TO EVAP PIPE
2005-05-01~2006-06-01 |
18563-52D10-000 |
— | ||
|
19
|
19
09401-11415-000 CLIP2005-05-01~2006-06-01 |
09401-11415-000 |
from US $1.06 |
||
|
20
|
20
09401-11415-000 CLIP2005-05-01~2006-06-01 |
09401-11415-000 |
from US $1.06 |
||
|
21
|
21
09401-12404-000 CLIPClip 2005-05-01~2006-06-01 |
09401-12404-000 |
from US $1.52 |
||
|
22
|
22
34810-65J00-000 GAUGE ASSY,FUEL LEVEL2005-05-01~2006-06-01 |
34810-65J00-000 |
from US $79.99 |
||
|
23
|
23
09136-05045-000 SCREW(5X10)2005-05-01~2006-06-01 |
09136-05045-000 |
US $0.96 |
||
