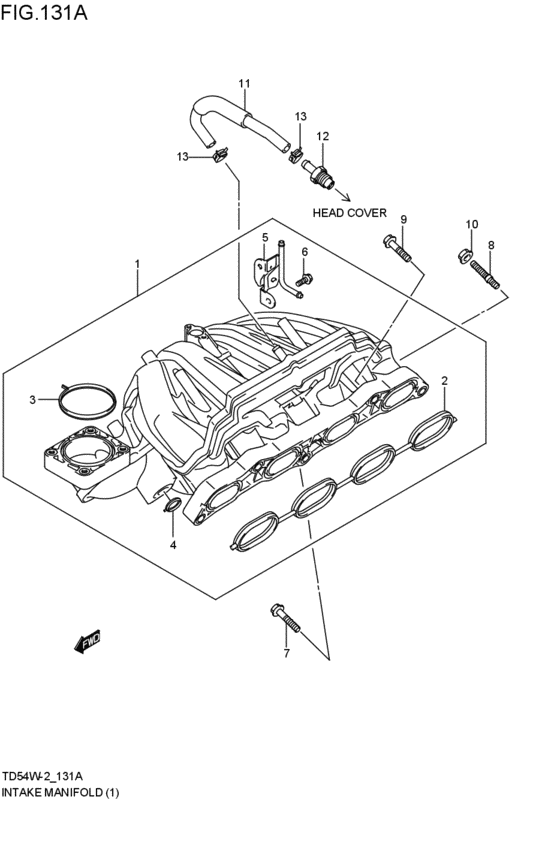

intake manifold (J20A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XG
- number of the gears
- 4AT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-65J01-000 MANIFOLD,INTKJ20A; 2006-06-01~ |
13110-65J01-000 |
US $464.64 |
||
|
2
|
2
13119-65J00-000 GASKET,INTK MANFJ20A; 2006-06-01~ |
13119-65J00-000 |
US $104.29 |
||
|
3
|
3
13421-65J00-000 GASKET,THROTTLE BODYJ20A; 2006-06-01~ |
13421-65J00-000 |
US $17.60 |
||
|
4
|
4
18534-86G00-000 GASKET,EGR PIPEJ20A; 2006-06-01~ |
18534-86G00-000 |
US $11.36 |
||
|
5
|
5
51050-65J20-000 PIPE,BRAKE VACUUMJ20A; 2006-06-01~ |
51050-65J20-000 |
US $41.22 |
||
|
6
|
6
09103-06066-000 BOLT(6X23)Bolt (6x23) J20A; 2006-06-01~ |
09103-06066-000 |
US $0.96 |
||
|
7
|
7
09103-08357-000 BOLT(8X35)Bolt, rear final gr J20A; 2006-06-01~ |
09103-08357-000 |
from US $5.68 |
||
|
8
|
8
01421-0835A-000 BOLT,STUDStud bolt (8x35) J20A; 2006-06-01~ |
01421-0835A-000 |
from US $1.44 |
||
|
9
|
9
01550-0835A-000 BOLTJ20A; 2006-06-01~ |
01550-0835A-000 |
from US $1.06 |
||
|
10
|
10
08316-1008A-000 NUTNut, idle gear shaft J20A; 2006-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
11
|
11
11192-65J00-000 HOSE,PCVJ20A; 2006-06-01~ |
11192-65J00-000 |
US $20.80 |
||
|
12
|
12
18118-54G00-000
VALVE,PCV
J20A; 2006-06-01~ |
18118-54G00-000 |
— | ||
| replacement | |||||
|
12
|
12
18118-54G01-000 VALVE,PCVJ20A; 2006-06-01~ |
18118-54G01-000 |
from US $23.04 |
||
|
13
|
13
09401-13414-000 CLIPClip, pcv hose J20A; 2006-06-01~ |
09401-13414-000 |
from US $1.60 |
||
