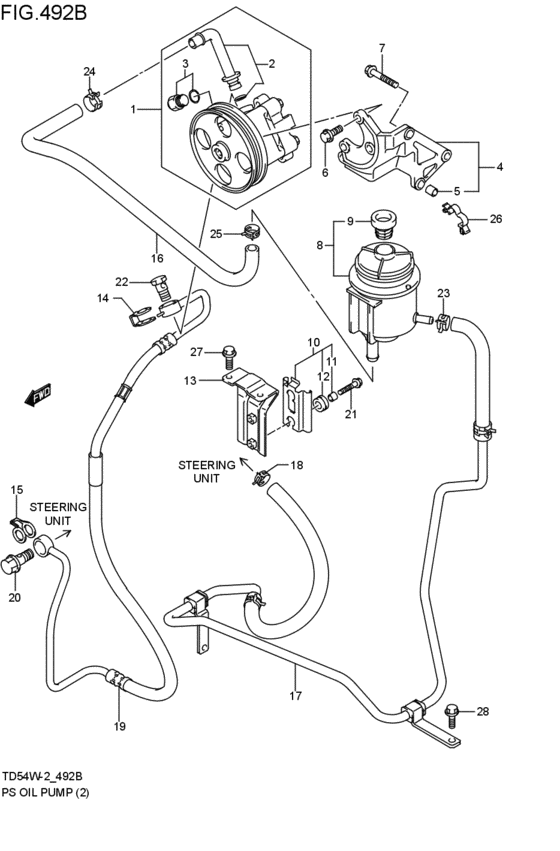

power steering oil pump (J20A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XG
- number of the gears
- 4AT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-65J00-000
PUMP ASSY,POWER STEERING
J20A; 2006-06-01~ |
49100-65J00-000 |
— | ||
| replacement | |||||
|
1
|
1
49100-65J01-000 Pump Assy,power StrgJ20A; 2006-06-01~ |
49100-65J01-000 |
US $1,294.40 |
||
|
2
|
2
49112-65J00-000 CONNECTOR SETJ20A; 2006-06-01~ |
49112-65J00-000 |
US $42.32 |
||
|
3
|
3
49113-65J00-000 TERMINAL SETJ20A; 2006-06-01~ |
49113-65J00-000 |
US $37.54 |
||
|
4
|
4
49120-65J00-000 BRACKET ASSY,POWER STEERINGJ20A; 2006-06-01~ |
49120-65J00-000 |
US $113.34 |
||
|
5
|
5
04211-11129-000 PINJ20A; 2006-06-01~ |
04211-11129-000 |
from US $1.06 |
||
|
6
|
6
01550-0825A-000 BOLTJ20A; 2006-06-01~ |
01550-0825A-000 |
from US $1.06 |
||
|
7
|
7
01550-0830A-000 BOLTBolt, mount oil seal cover J20A; 2006-06-01~ |
01550-0830A-000 |
from US $1.12 |
||
|
8
|
8
49140-65J00-000 TANK ASSY,POWER STEERING OILJ20A; 2006-06-01~ |
49140-65J00-000 |
US $98.40 |
||
|
9
|
9
49142-65D00-000 CAP,PS OIL TANKJ20A; 2006-06-01~ |
49142-65D00-000 |
US $5.02 |
||
|
10
|
10
49150-60G00-000 BRACKET ASSY,PS TANKJ20A; 2006-06-01~ |
49150-60G00-000 |
US $10.16 |
||
|
11
|
11
09180-06038-000 SPACER(6.1X9X7.5)Spacer (6.1x9x7.5) J20A; 2006-06-01~ |
09180-06038-000 |
from US $1.52 |
||
|
12
|
12
09320-08501-000 CUSHIONJ20A; 2006-06-01~ |
09320-08501-000 |
from US $5.17 |
||
|
13
|
13
49152-65J00-000 BRACKET,PS TANK NO.2J20A; 2006-06-01~ |
49152-65J00-000 |
US $7.62 |
||
|
14
|
14
49211-63G03-000 GASKET,PRESSURE PIPEJ20A; 2006-06-01~ |
49211-63G03-000 |
US $4.96 |
||
|
15
|
15
49211-65J00-000 GASKET,GEAR BOXJ20A; 2006-06-01~ |
49211-65J00-000 |
US $7.68 |
||
|
16
|
16
49214-65J00-000 HOSE,SUCTIONJ20A; 2006-06-01~ |
49214-65J00-000 |
US $47.20 |
||
|
17
|
17
49220-65J01-000
ホースアッシ,リターン
J20A; 2006-06-01~ |
49220-65J01-000 |
— | ||
| replacement | |||||
|
17
|
17
49220-65J02-000 HOSE ASSY,RETURNJ20A; 2006-06-01~ |
49220-65J02-000 |
US $169.60 |
||
|
18
|
18
49225-65D10-000 CLAMP,RETURN GEAR SIDEJ20A; 2006-06-01~ |
49225-65D10-000 |
US $2.98 |
||
|
19
|
19
49230-65J00-000 HOSE,PRESSUREJ20A; 2006-06-01~ |
49230-65J00-000 |
US $406.40 |
||
|
20
|
20
49237-65J00-000 BOLT,UNION GEAR BOXJ20A; 2006-06-01~ |
49237-65J00-000 |
US $6.92 |
||
|
21
|
21
09136-06133-000 BOLT(6X16)Screw J20A; 2006-06-01~ |
09136-06133-000 |
US $12.50 |
||
|
22
|
22
09360-16003-000 UNIONJ20A; 2006-06-01~ |
09360-16003-000 |
US $66.60 |
||
|
23
|
23
09401-15404-000 CLIPJ20A; 2006-06-01~ |
09401-15404-000 |
from US $2.28 |
||
|
24
|
24
09401-20405-000 CLIPClip, tank J20A; 2006-06-01~ |
09401-20405-000 |
from US $5.56 |
||
|
25
|
25
09401-20405-000 CLIPClip, tank J20A; 2006-06-01~ |
09401-20405-000 |
from US $5.56 |
||
|
26
|
26
09408-00151-000 CLAMPJ20A; 2006-06-01~ |
09408-00151-000 |
US $16.90 |
||
|
27
|
27
02162-0612A-000 SCREWBolt, bracket J20A; 2006-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
28
|
28
02162-0612A-000 SCREWBolt, bracket J20A; 2006-06-01~ |
02162-0612A-000 |
from US $0.80 |
||
