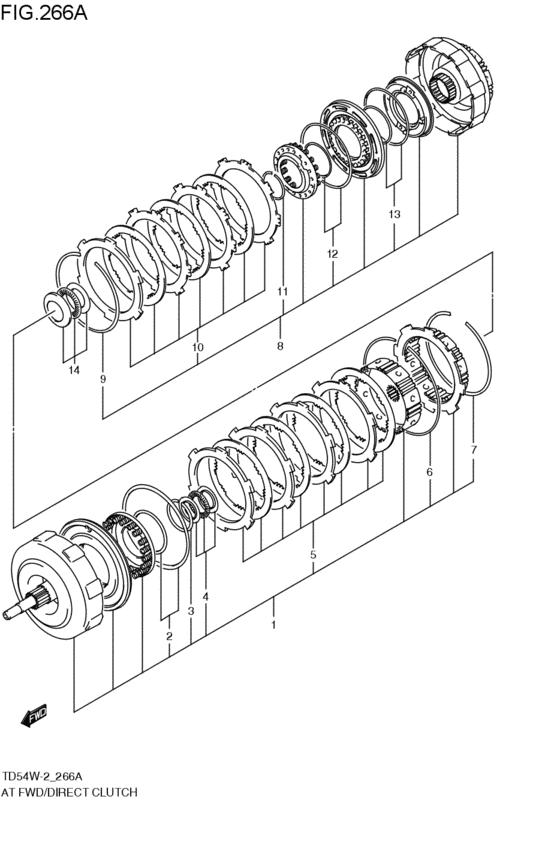

at - forward / direct clutch (AT:J20A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XG
- number of the gears
- 4AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26601-65D10-000 CLUTCH ASSY,FWD MULTIPLE DISKAT:J20A; 2006-06-01~ |
26601-65D10-000 |
US $1,314.08 |
||
|
2
|
2
26622-65DT0-000 O-RING SET,CLUTCHAT:J20A; 2006-06-01~ |
26622-65DT0-000 |
from US $20.86 |
||
|
3
|
3
26691-57B00-000 RING,RETAINING RETURN SPRINGAT:J20A; 2006-06-01~ |
26691-57B00-000 |
from US $7.94 |
||
|
4
|
4
26661-57BT0-000 BEARING SET,THRUST NO.7AT:J20A; 2006-06-01~ |
26661-57BT0-000 |
US $47.10 |
||
|
5
|
5
26631-65DV0-000 PLATE SET,DIRECT CLUTCHAT:J20A; 2006-06-01~ |
26631-65DV0-000 |
from US $424.24 |
||
|
6
|
6
24191-57B00-000 RING,RETAINING O/D CLAT:J20A; 2006-06-01~ |
24191-57B00-000 |
from US $8.96 |
||
|
7
|
7
26692-57B01-000 RING,RETAINING BACK PLATEAT:J20A; 2006-06-01~ |
26692-57B01-000 |
from US $11.54 |
||
|
8
|
8
26602-66D30-000 CLUTCH ASSY,DIRECT MULTAT:J20A; 2006-06-01~ |
26602-66D30-000 |
US $1,041.92 |
||
|
9
|
9
26692-57B10-000 RING,DIRECT CLUTCHAT:J20A; 2006-06-01~ |
26692-57B10-000 |
US $14.06 |
||
|
10
|
10
26621-65DU0-000 PLATE SET,DIRECT CLUTCHAT:J20A; 2006-06-01~ |
26621-65DU0-000 |
from US $397.60 |
||
|
11
|
11
26691-57B00-000 RING,RETAINING RETURN SPRINGAT:J20A; 2006-06-01~ |
26691-57B00-000 |
from US $7.94 |
||
|
12
|
12
26622-65DT0-000 O-RING SET,CLUTCHAT:J20A; 2006-06-01~ |
26622-65DT0-000 |
from US $20.86 |
||
|
13
|
13
26632-57BT1-000 O-RING SET,DIRECT CLAT:J20A; 2006-06-01~ |
26632-57BT1-000 |
from US $18.59 |
||
|
14
|
14
26662-65DT0-000 BEARING SET,THRUST N0.8AT:J20A; 2006-06-01~ |
26662-65DT0-000 |
from US $44.33 |
