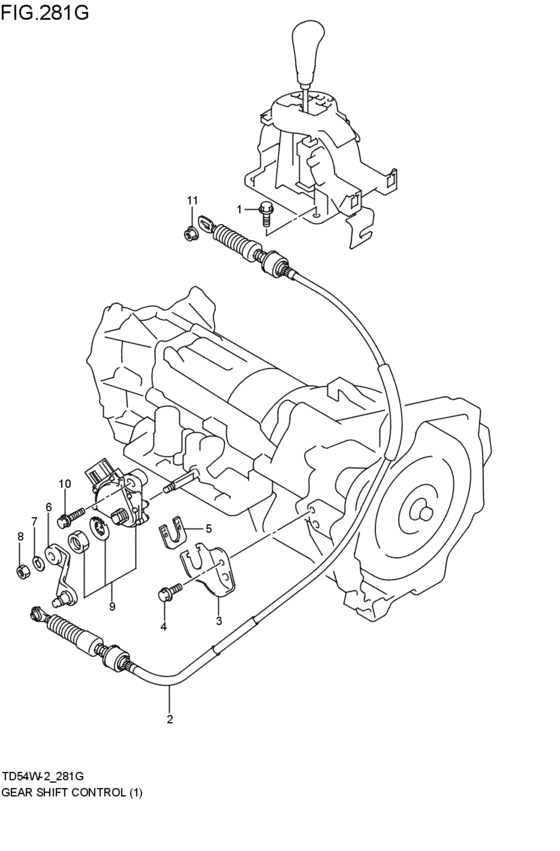

gearlever control (AT:J20A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XG
- number of the gears
- 4AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09118-08165-000 BOLT(8X25)AT:J20A; 2006-06-01~ |
09118-08165-000 |
US $14 |
||
|
2
|
2
28210-65J11-000 CABLE ASSY,SELECTAT:J20A; 2006-06-01~ |
28210-65J11-000 |
from US $110.81 |
||
|
3
|
3
28221-65J11-000 BRACKET,SELECT CABLEAT:J20A; 2006-06-01~ |
28221-65J11-000 |
US $5.89 |
||
|
4
|
4
01550-0820A-000 BOLTBolt, funnel bracket AT:J20A; 2006-06-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
5
|
5
29365-79A40-000 CLIPAT:J20A; 2006-06-01~ |
29365-79A40-000 |
US $4 |
||
|
6
|
6
28231-65J10-000 LEVER,MANUAL SLTAT:J20A; 2006-06-01~ |
28231-65J10-000 |
US $12.80 |
||
|
7
|
7
09162-08008-000 WASHER,LOCKLock washer AT:J20A; 2006-06-01~ |
09162-08008-000 |
from US $0.80 |
||
|
8
|
8
08310-0008A-000 NUTNut, bead stopper AT:J20A; 2006-06-01~ |
08310-0008A-000 |
from US $0.76 |
||
|
9
|
9
37720-65J10-000 SWITCH ASSY,SHIFTAT:J20A; 2006-06-01~ |
37720-65J10-000 |
from US $244.21 |
||
|
10
|
10
29993-65D10-000 BOLT,SHIFT SWAT:J20A; 2006-06-01~ |
29993-65D10-000 |
US $6.96 |
||
|
11
|
11
09159-08135-000 NUTAT:J20A; 2006-06-01~ |
09159-08135-000 |
from US $0.77 |
