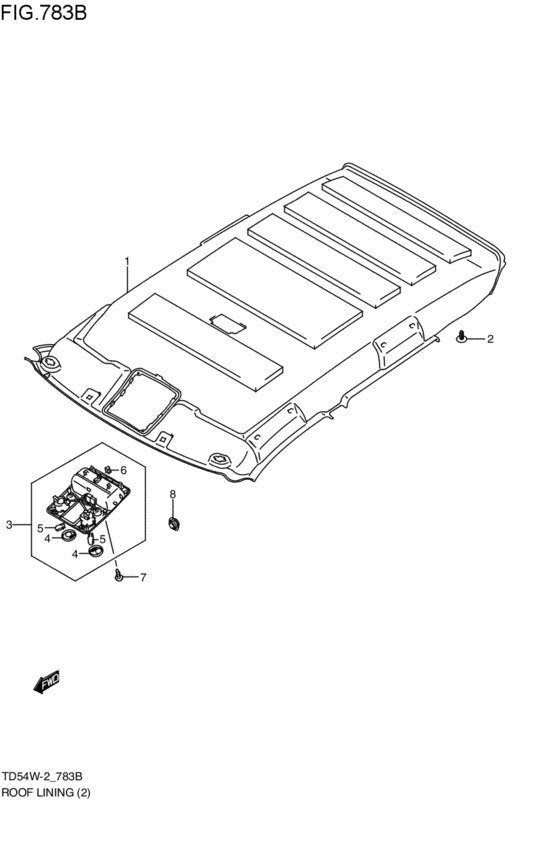

roof lining (5DR:(XG,XS):6AB; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XG
- number of the gears
- 4AT
- air bag
- 6AB
- esp
- ESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
78110-65J04-6GS HEADLINING ASSY,ROOFグレ-; 5DR:(XG,XS):6AB; 2006-06-01~ |
78110-65J04-6GS |
US $787.20 |
||
|
2
|
2
09409-06326-6GS CLIP(GRAY)グレ-; 5DR:(XG,XS):6AB; 2006-06-01~ |
09409-06326-6GS |
from US $1.24 |
||
|
3
|
3
78170-65J10-6GS BOX,OVER HEADグレ-; 5DR:(XG,XS):6AB; 2006-06-01~ |
78170-65J10-6GS |
US $222.64 |
||
|
4
|
4
36232-65J01-000 LENS5DR:(XG,XS):6AB; 2006-06-01~ |
36232-65J01-000 |
US $9.64 |
||
|
5
|
5
09471-12113-000 BULB(12V8W)KOITO; 5DR:(XG,XS):6AB; 2006-06-01~ |
09471-12113-000 |
from US $1.49 |
||
|
6
|
6
09409-08325-000 CLIP5DR:(XG,XS):6AB; 2006-06-01~ |
09409-08325-000 |
from US $0.80 |
||
|
7
|
7
03141-0512A-000 SCREWScrew, belt cooling duct 5DR:(XG,XS):6AB; 2006-06-01~ |
03141-0512A-000 |
from US $0.76 |
||
|
8
|
8
09250-20015-000 CAP(OD:28.5)Cap, air con harness 5DR:(XG,XS):6AB; 2006-06-01~ |
09250-20015-000 |
from US $0.79 |
