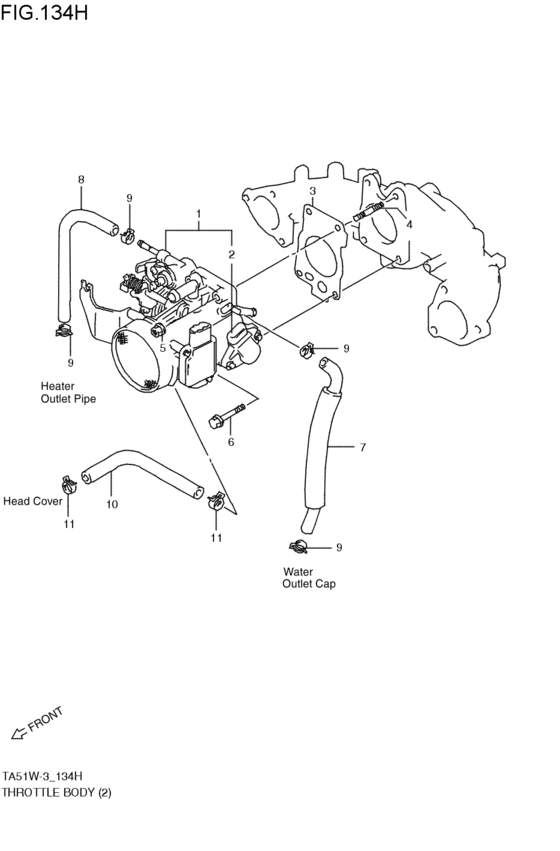

throttle body (H25A; 1996-10-01~1997-04-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- STD
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-77E00-000 BODY ASSY,THROTTLEH25A; 1996-10-01~1997-04-01 |
13400-77E00-000 |
from US $1,231.52 |
||
|
2
|
2
13420-77E00-000 SENSOR,THROTTLE POSITIONH25A; 1996-10-01~1997-04-01 |
13420-77E00-000 |
from US $224.08 |
||
|
3
|
3
13421-77E00-000 GASKET,THROTTLE BODYH25A; 1996-10-01~1997-04-01 |
13421-77E00-000 |
from US $4.96 |
||
|
4
|
4
01421-08353-000
Bolt, stud
H25A; 1996-10-01~1997-04-01 |
01421-08353-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0835A-000 BOLT,STUDStud bolt (8x35) H25A; 1996-10-01~1997-04-01 |
01421-0835A-000 |
from US $1.60 |
||
|
5
|
5
08316-10083-000
Nut
H25A; 1996-10-01~1997-04-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUTH25A; 1996-10-01~1997-04-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
01550-08403-000
Bolt
H25A; 1996-10-01~1997-04-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0840B-000 BoltH25A; 1996-10-01~1997-04-01 |
01550-0840B-000 |
from US $1.12 |
||
|
6
|
6
01550-0840A-000 BoltH25A; 1996-10-01~1997-04-01 |
01550-0840A-000 |
from US $1.12 |
||
|
7
|
7
13491-77E00-000
HOSE WTR THORT INLET
H25A; 1996-10-01~1997-04-01 |
13491-77E00-000 |
— | ||
| replacement | |||||
|
7
|
7
11190-77810-000 HOSE&PIPE SET,PCV H25H25A; 1996-10-01~1997-04-01 |
11190-77810-000 |
from US $97.20 |
||
|
8
|
8
09352-70131-600 HOSE(7X13X600)L:600>210; H25A; 1996-10-01~1997-04-01 |
09352-70131-600 |
US $9.92 |
||
|
9
|
9
09401-12404-000 CLIPClip H25A; 1996-10-01~1997-04-01 |
09401-12404-000 |
from US $1.10 |
||
|
10
|
10
09355-13207-600 HOSE(13X20X600)Hose, breather L:600>170; H25A; 1996-10-01~1997-04-01 |
09355-13207-600 |
from US $12.46 |
||
|
11
|
11
09401-18404-000 CLIPH25A; 1996-10-01~1997-04-01 |
09401-18404-000 |
from US $1.17 |
||
