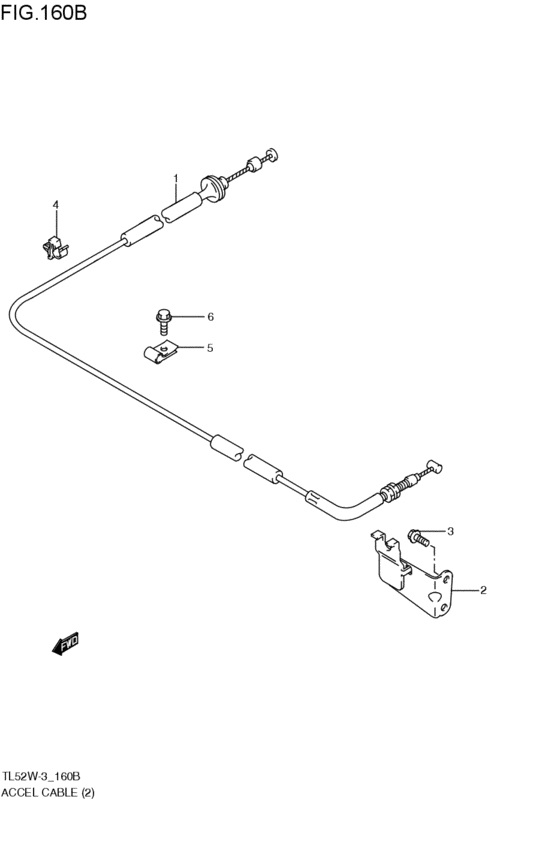

accelerator cable (H25A; 2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15910-67D40-000 CABLE ASSY,ACCELH25A; 2002-11-01~2003-05-01 |
15910-67D40-000 |
from US $48.76 |
||
|
2
|
2
15919-67D00-000
GUIDE,ACCEL CABLE
H25A; 2002-11-01~2003-05-01 |
15919-67D00-000 |
— | ||
|
3
|
3
09103-06152-000 BOLT(6X12)Bolt (6x12) H25A; 2002-11-01~2003-05-01 |
09103-06152-000 |
from US $2.21 |
||
| replacement | |||||
|
3
|
3
01550-06127-000 BoltBolt, rect H25A; 2002-11-01~2003-05-01 |
01550-06127-000 |
from US $0.68 |
||
|
4
|
4
09403-05313-000
Clip, band
H25A; 2002-11-01~2003-05-01 |
09403-05313-000 |
— | ||
| replacement | |||||
|
4
|
4
18214-75F00-000 CLAMPH25A; 2002-11-01~2003-05-01 |
18214-75F00-000 |
from US $1.82 |
||
|
5
|
5
09403-08404-000
CLAMP
H25A; 2002-11-01~2003-05-01 |
09403-08404-000 |
— | ||
| replacement | |||||
|
5
|
5
09403-08417-000 Clamp,rsvr HoseH25A; 2002-11-01~2003-05-01 |
09403-08417-000 |
from US $3.91 |
||
|
6
|
6
01550-06123-000
Bolt
H25A; 2002-11-01~2003-05-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0612B-000 BoltBolt, clamp H25A; 2002-11-01~2003-05-01 |
01550-0612B-000 |
from US $0.76 |
||
|
6
|
6
01550-0612A-000 BoltH25A; 2002-11-01~2003-05-01 |
01550-0612A-000 |
from US $0.76 |
||
