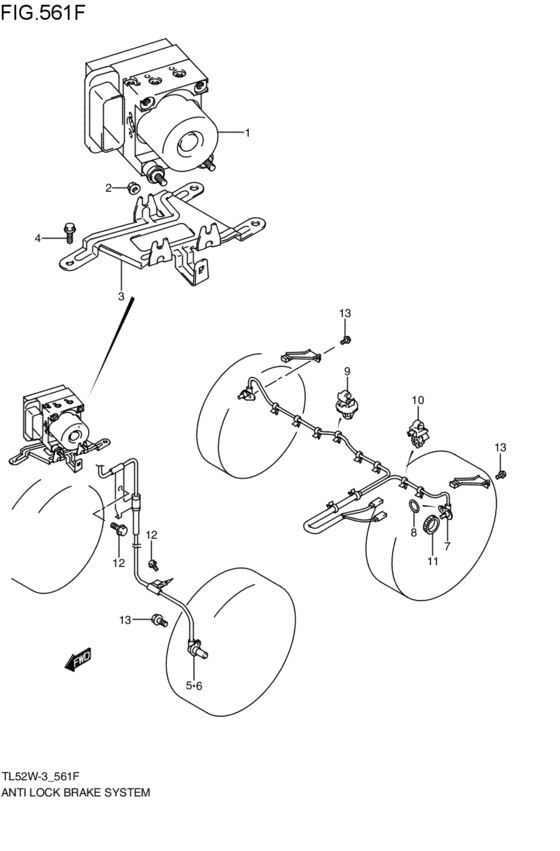

antilock brake system (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56100-65D22-000
Actuator assy,abs
2002-11-01~2005-02-01 |
56100-65D22-000 |
— | ||
| replacement | |||||
|
1
|
1
56100-65D23-000 ACTUATOR ASSY,ABS2002-11-01~2005-02-01 |
56100-65D23-000 |
US $3,408 |
||
|
2
|
2
08316-10063-000
Nut
2002-11-01~2005-02-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
2
|
2
08316-1006B-000 NUT2002-11-01~2005-02-01 |
08316-1006B-000 |
from US $0.76 |
||
|
3
|
3
56161-65D20-000
BRACKET,ACTUATOR
2002-11-01~2005-02-01 |
56161-65D20-000 |
— | ||
|
4
|
4
02162-06123-000
Bolt (6x12)
2002-11-01~2005-02-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
4
|
4
02162-0612B-000 SCREWBolt 2002-11-01~2005-02-01 |
02162-0612B-000 |
from US $0.80 |
||
|
4
|
4
02162-0612A-000 SCREWBolt, bracket 2002-11-01~2005-02-01 |
02162-0612A-000 |
from US $0.79 |
||
|
5
|
5
56210-52D00-000 SENSOR,FR WHEEL,RH2002-11-01~2005-02-01 |
56210-52D00-000 |
from US $179.96 |
||
|
6
|
6
56220-52D00-000 SENSOR,FR WHEEL,LH2002-11-01~2005-02-01 |
56220-52D00-000 |
from US $125.10 |
||
|
7
|
7
56310-65D00-000 SENSOR,RR WHEEL2002-11-01~2005-02-01 |
56310-65D00-000 |
from US $254.45 |
||
|
8
|
8
51399-65D00-000 O-RING,RR WHEEL SENSOR2002-11-01~2005-02-01 |
51399-65D00-000 |
from US $2.14 |
||
|
9
|
9
51397-65D00-000 CLAMP,RR WHEEL SENSOR2002-11-01~2005-02-01 |
51397-65D00-000 |
from US $2.32 |
||
|
10
|
10
51398-65D00-000 CLAMP,RR WHEEL SENSOR2002-11-01~2005-02-01 |
51398-65D00-000 |
from US $2.32 |
||
|
11
|
11
56451-65D00-000 RING,RR WHEEL SENSOR2002-11-01~2005-02-01 |
56451-65D00-000 |
from US $53.60 |
||
|
12
|
12
02162-06163-000
Screw
2002-11-01~2005-02-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
02162-0616B-000 SCREWBolt, adjust 2002-11-01~2005-02-01 |
02162-0616B-000 |
from US $0.96 |
||
|
13
|
13
01550-08123-000
Bolt
2002-11-01~2005-02-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0812B-000 BoltPlug, drain 2002-11-01~2005-02-01 |
01550-0812B-000 |
from US $0.96 |
||
|
13
|
13
01550-0812A-000 Bolt2002-11-01~2005-02-01 |
01550-0812A-000 |
from US $0.91 |
||
