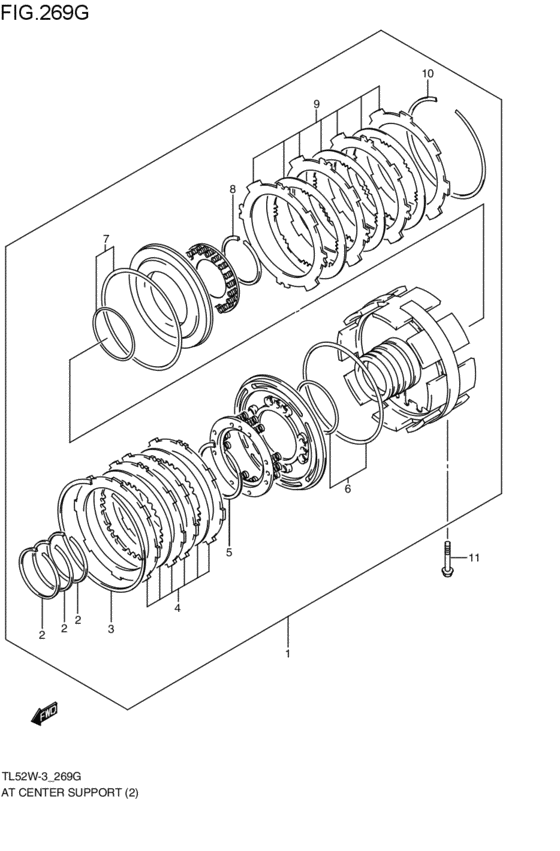

at - center support (H25A:AT; 2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26900-67D30-000 BRAKE ASSY,DRIVE&2NDH25A:AT; 2002-11-01~2003-05-01 |
26900-67D30-000 |
from US $1,189.58 |
||
|
2
|
2
29797-65D30-000 RING,SEAL B1 BRAKE FRH25A:AT; 2002-11-01~2003-05-01 |
29797-65D30-000 |
from US $16.65 |
||
|
3
|
3
26692-57B10-000 RING,DIRECT CLUTCHH25A:AT; 2002-11-01~2003-05-01 |
26692-57B10-000 |
from US $7.97 |
||
|
4
|
4
26911-65DT0-000 DISC SET,B1 BRAKEH25A:AT; 2002-11-01~2003-05-01 |
26911-65DT0-000 |
from US $182.39 |
||
|
5
|
5
28949-57B00-000 RING,SNAP B1 BRAKEH25A:AT; 2002-11-01~2003-05-01 |
28949-57B00-000 |
from US $7.20 |
||
|
6
|
6
29743-65DT0-000 O-RING SET,B1 BRAKE PISTONH25A:AT; 2002-11-01~2003-05-01 |
29743-65DT0-000 |
from US $22.14 |
||
|
7
|
7
29742-65DT0-000 O-RING SET,B2 BRAKE PISTONH25A:AT; 2002-11-01~2003-05-01 |
29742-65DT0-000 |
from US $19.87 |
||
|
8
|
8
28949-57B00-000 RING,SNAP B1 BRAKEH25A:AT; 2002-11-01~2003-05-01 |
28949-57B00-000 |
from US $7.20 |
||
|
9
|
9
26913-65DU0-000 DISC SET,B2 BRAKEH25A:AT; 2002-11-01~2003-05-01 |
26913-65DU0-000 |
from US $329.74 |
||
|
10
|
10
26692-57B10-000 RING,DIRECT CLUTCHH25A:AT; 2002-11-01~2003-05-01 |
26692-57B10-000 |
from US $7.97 |
||
|
11
|
11
29997-57B00-000 BOLT,CTR SPRT T/M CASEH25A:AT; 2002-11-01~2003-05-01 |
29997-57B00-000 |
from US $4.79 |
