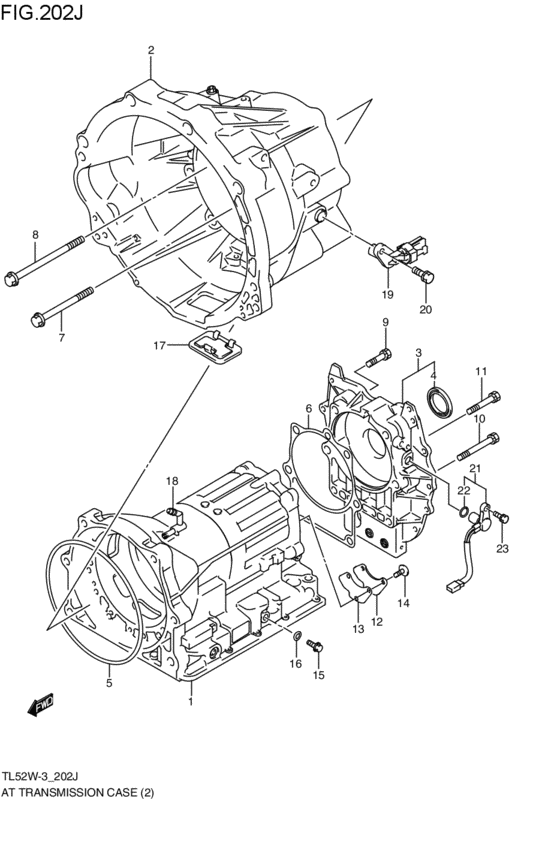

at - transmission case (H25A:AT; 2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24712-57X50-000
ケース,トランスミッション
H25A:AT; 2002-11-01~2003-05-01 |
24712-57X50-000 |
— | ||
| replacement | |||||
|
1
|
1
24712-65DV0-000 CASE,T/MH25A:AT; 2002-11-01~2003-05-01 |
24712-65DV0-000 |
US $1,723.44 |
||
|
2
|
2
24711-67D10-000
HOUSING,TORQUE CONVERTER
H25A:AT; 2002-11-01~2003-05-01 |
24711-67D10-000 |
— | ||
|
3
|
3
24710-57B01-000 CASE ASSY,ADAPTORH25A:AT; 2002-11-01~2003-05-01 |
24710-57B01-000 |
from US $625.37 |
||
|
4
|
4
29792-57B01-000 SEAL,OIL ADAPTOR CASEH25A:AT; 2002-11-01~2003-05-01 |
29792-57B01-000 |
from US $26.40 |
||
|
5
|
5
29736-57B00-000 O-RING,HSG T/M CASEH25A:AT; 2002-11-01~2003-05-01 |
29736-57B00-000 |
from US $23.18 |
||
|
6
|
6
24784-57B00-000 GASKET,ADAPTOR T/M CASEH25A:AT; 2002-11-01~2003-05-01 |
24784-57B00-000 |
from US $23.20 |
||
|
7
|
7
29995-57B00-000 BOLT,HSG&CASE NO.2H25A:AT; 2002-11-01~2003-05-01 |
29995-57B00-000 |
from US $9.05 |
||
|
8
|
8
29996-57B00-000 BOLT,HSG&CASE NO.1H25A:AT; 2002-11-01~2003-05-01 |
29996-57B00-000 |
from US $8.17 |
||
|
9
|
9
01570-10453-000
Bolt, upper bracket
H25A:AT; 2002-11-01~2003-05-01 |
01570-10453-000 |
— | ||
| replacement | |||||
|
9
|
9
01570-1045A-000 BoltH25A:AT; 2002-11-01~2003-05-01 |
01570-1045A-000 |
US $19.50 |
||
|
10
|
10
29972-57B00-000 BOLT,ADAPTOR&T/M CASE NO.3H25A:AT; 2002-11-01~2003-05-01 |
29972-57B00-000 |
from US $9.56 |
||
|
11
|
11
29991-57B00-000
BOLT,ADAPTOR&T/M CASE NO.2
H25A:AT; 2002-11-01~2003-05-01 |
29991-57B00-000 |
— | ||
|
12
|
12
24761-57B00-000 COVER,PLATEH25A:AT; 2002-11-01~2003-05-01 |
24761-57B00-000 |
from US $7.31 |
||
|
13
|
13
24783-57B00-000 GASKET,OIL GALLERY COVERH25A:AT; 2002-11-01~2003-05-01 |
24783-57B00-000 |
from US $4.41 |
||
|
14
|
14
29994-57B00-000 SCREW,OIL GALLERY COVERH25A:AT; 2002-11-01~2003-05-01 |
29994-57B00-000 |
from US $3.60 |
||
|
15
|
15
29849-57B00-000 PLUG,T/M CASEH25A:AT; 2002-11-01~2003-05-01 |
29849-57B00-000 |
from US $3.78 |
||
|
16
|
16
29738-57B00-000 O-RINGH25A:AT; 2002-11-01~2003-05-01 |
29738-57B00-000 |
from US $2.40 |
||
|
17
|
17
22641-61A01-000 CAP,T/C,HOUSINGH25A:AT; 2002-11-01~2003-05-01 |
22641-61A01-000 |
from US $11.39 |
||
|
18
|
18
24772-57B00-000 ADAPTER,BREATHERH25A:AT; 2002-11-01~2003-05-01 |
24772-57B00-000 |
from US $14.29 |
||
|
19
|
19
26141-65D00-000 SENSOR,INPUT SPEEDH25A:AT; 2002-11-01~2003-05-01 |
26141-65D00-000 |
from US $95.63 |
||
|
20
|
20
26599-65D10-000 BOLT,INPUT SPEED SENSORH25A:AT; 2002-11-01~2003-05-01 |
26599-65D10-000 |
from US $1.33 |
||
|
21
|
21
24791-57B00-000 SENSOR,SPEEDH25A:AT; 2002-11-01~2003-05-01 |
24791-57B00-000 |
from US $111.22 |
||
|
22
|
22
29725-57B00-000 O-RING,SPEED SENSORH25A:AT; 2002-11-01~2003-05-01 |
29725-57B00-000 |
from US $1.91 |
||
|
23
|
23
29989-57B00-000 BoltH25A:AT; 2002-11-01~2003-05-01 |
29989-57B00-000 |
from US $3.60 |
||
