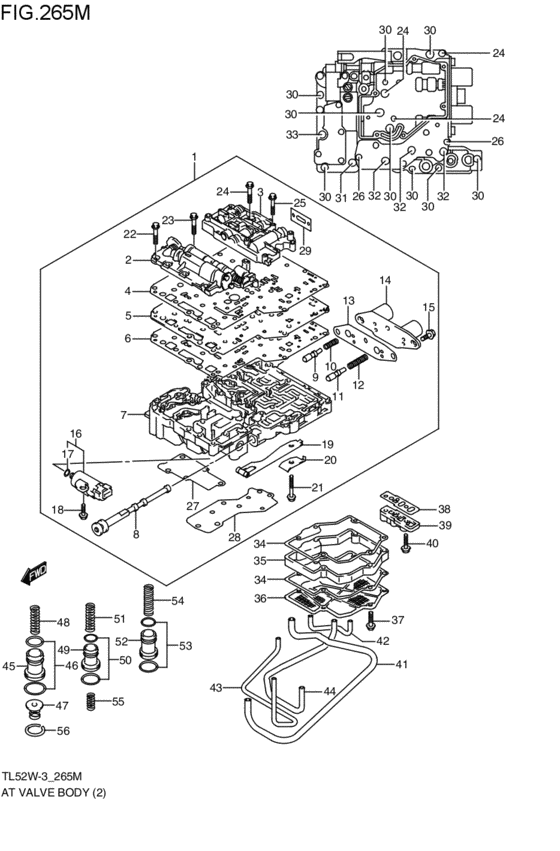

at - valve (H25A:AT; 2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26500-67D90-000
Body assy,control valve
H25A:AT; 2002-11-01~2003-05-01 |
26500-67D90-000 |
— | ||
|
2
|
2
26530-67D30-000 BODY ASSY,CONT VALVE FR UPRH25A:AT; 2002-11-01~2003-05-01 |
26530-67D30-000 |
US $686.40 |
||
|
3
|
3
26520-77ED0-000 BODY ASSY,CONT VALVE RR UPRH25A:AT; 2002-11-01~2003-05-01 |
26520-77ED0-000 |
US $672.32 |
||
|
4
|
4
26584-57B01-000 GASKET,UPR VALVE BODYH25A:AT; 2002-11-01~2003-05-01 |
26584-57B01-000 |
from US $13.91 |
||
|
5
|
5
26522-67D90-000
PLATE,SEPARATOR
H25A:AT; 2002-11-01~2003-05-01 |
26522-67D90-000 |
— | ||
|
6
|
6
26585-57B01-000 GASKET,LWR VALVE BODYH25A:AT; 2002-11-01~2003-05-01 |
26585-57B01-000 |
from US $15.28 |
||
|
7
|
7
26510-67D30-000
BODY ASSY,CONT VALVE LWR
H25A:AT; 2002-11-01~2003-05-01 |
26510-67D30-000 |
— | ||
|
8
|
8
26552-57B00-000
VALVE,MANUAL
H25A:AT; 2002-11-01~2003-05-01 |
26552-57B00-000 |
— | ||
|
9
|
9
26538-57B00-000 VALVE,INTMD COAST MODH25A:AT; 2002-11-01~2003-05-01 |
26538-57B00-000 |
US $17.52 |
||
|
10
|
10
29627-77ED0-000 SPRING,INTER COAST MOD VALVEH25A:AT; 2002-11-01~2003-05-01 |
29627-77ED0-000 |
US $8.21 |
||
|
11
|
11
26538-57B00-000 VALVE,INTMD COAST MODH25A:AT; 2002-11-01~2003-05-01 |
26538-57B00-000 |
US $17.52 |
||
|
12
|
12
29628-57B00-000 SPRING,LOW COAST MOD VALVEH25A:AT; 2002-11-01~2003-05-01 |
29628-57B00-000 |
US $7.25 |
||
|
13
|
13
26589-57B00-000 GASKET,SOLENOIDH25A:AT; 2002-11-01~2003-05-01 |
26589-57B00-000 |
from US $7.04 |
||
|
14
|
14
26591-57B00-000 SOLENOID,T/M NO.1H25A:AT; 2002-11-01~2003-05-01 |
26591-57B00-000 |
from US $487.44 |
||
|
15
|
15
29973-57B00-000 BOLT,SOLENOID NO.1H25A:AT; 2002-11-01~2003-05-01 |
29973-57B00-000 |
US $7.80 |
||
|
16
|
16
26592-57BT0-000 SOLENOID SET,T/M NO.2H25A:AT; 2002-11-01~2003-05-01 |
26592-57BT0-000 |
from US $201.04 |
||
|
17
|
17
29728-57B00-000 O-RING,SOLENOIDH25A:AT; 2002-11-01~2003-05-01 |
29728-57B00-000 |
from US $4.14 |
||
|
18
|
18
29983-57B00-000 BOLT,SOLENOID NO.2H25A:AT; 2002-11-01~2003-05-01 |
29983-57B00-000 |
US $5.85 |
||
|
19
|
19
26541-85FA0-000 SPRING,DETENTH25A:AT; 2002-11-01~2003-05-01 |
26541-85FA0-000 |
US $20.61 |
||
|
20
|
20
26523-85FA0-000 PLATE,DETENT SPRINGH25A:AT; 2002-11-01~2003-05-01 |
26523-85FA0-000 |
US $9.46 |
||
|
21
|
21
29974-57B00-000 BOLT,DETENT SPRINGH25A:AT; 2002-11-01~2003-05-01 |
29974-57B00-000 |
US $6.48 |
||
|
22
|
22
29979-65D10-000 BOLT,UPR&LWR VALVE BODY NO.1H25A:AT; 2002-11-01~2003-05-01 |
29979-65D10-000 |
US $5.85 |
||
|
23
|
23
29978-65D10-000 BOLT,UPR&LWR VALVE BODY NO.2H25A:AT; 2002-11-01~2003-05-01 |
29978-65D10-000 |
US $5.85 |
||
|
24
|
24
29977-57B00-000 BOLT,UPR&LWR VALVE BODY NO.3H25A:AT; 2002-11-01~2003-05-01 |
29977-57B00-000 |
from US $3.53 |
||
|
25
|
25
29976-57B00-000 BOLT,UPR&LWR VALVE BODY NO.4H25A:AT; 2002-11-01~2003-05-01 |
29976-57B00-000 |
from US $3.69 |
||
|
26
|
26
29975-57B00-000 BOLT,UPR&LWR VALVE BODY NO.5H25A:AT; 2002-11-01~2003-05-01 |
29975-57B00-000 |
US $6.73 |
||
|
27
|
27
26586-57B00-000 GASKET,LOCK UP CONT VALVEH25A:AT; 2002-11-01~2003-05-01 |
26586-57B00-000 |
from US $3.85 |
||
|
28
|
28
26587-57B00-000 GASKET,LWR VALVE BODY PLATEH25A:AT; 2002-11-01~2003-05-01 |
26587-57B00-000 |
from US $9.77 |
||
|
29
|
29
26588-57B00-000 GASKET,RR UPR VALVE BODY PLATEH25A:AT; 2002-11-01~2003-05-01 |
26588-57B00-000 |
from US $2.77 |
||
|
30
|
30
29986-57B00-000 BOLT,BRAKE APPLYH25A:AT; 2002-11-01~2003-05-01 |
29986-57B00-000 |
from US $3.71 |
||
|
31
|
31
29985-57B00-000 BoltH25A:AT; 2002-11-01~2003-05-01 |
29985-57B00-000 |
US $5.59 |
||
|
32
|
32
29984-57B00-000 BOLT,VALVE BODY T/M CASE NO.3H25A:AT; 2002-11-01~2003-05-01 |
29984-57B00-000 |
US $7.54 |
||
|
33
|
33
29987-57B00-000 BOLT,VALVE BODY T/M CASE NO.4H25A:AT; 2002-11-01~2003-05-01 |
29987-57B00-000 |
from US $4.16 |
||
|
34
|
34
26583-57B00-000 GASKET,OIL SCREENH25A:AT; 2002-11-01~2003-05-01 |
26583-57B00-000 |
from US $17.42 |
||
|
35
|
35
26565-57B00-000 SPACER,OIL SCREENH25A:AT; 2002-11-01~2003-05-01 |
26565-57B00-000 |
from US $52.61 |
||
|
36
|
36
26582-57B00-000 SCREEN,OILH25A:AT; 2002-11-01~2003-05-01 |
26582-57B00-000 |
from US $67.12 |
||
|
37
|
37
29977-57B00-000 BOLT,UPR&LWR VALVE BODY NO.3H25A:AT; 2002-11-01~2003-05-01 |
29977-57B00-000 |
from US $3.53 |
||
|
38
|
38
26581-57B00-000 GASKET,BRAKE APPLY COVERH25A:AT; 2002-11-01~2003-05-01 |
26581-57B00-000 |
from US $5.87 |
||
|
39
|
39
26521-57B00-000 COVER,BRAKE APPLYH25A:AT; 2002-11-01~2003-05-01 |
26521-57B00-000 |
from US $18.92 |
||
|
40
|
40
29986-57B00-000 BOLT,BRAKE APPLYH25A:AT; 2002-11-01~2003-05-01 |
29986-57B00-000 |
from US $3.71 |
||
|
41
|
41
26533-57B00-000 TUBE,FORWARD CL APPLYH25A:AT; 2002-11-01~2003-05-01 |
26533-57B00-000 |
US $38.64 |
||
|
42
|
42
26532-57B00-000 TUBE,REVERSE BRAKE APPLYH25A:AT; 2002-11-01~2003-05-01 |
26532-57B00-000 |
US $21.34 |
||
|
43
|
43
26534-57B00-000 TUBE,O/D BRAKE APPLYH25A:AT; 2002-11-01~2003-05-01 |
26534-57B00-000 |
US $29.62 |
||
|
44
|
44
26531-57B00-000 TUBE,LUBE APPLYH25A:AT; 2002-11-01~2003-05-01 |
26531-57B00-000 |
US $29.62 |
||
|
45
|
45
29721-85FA0-000 PISTON,2ND BRAKE ACCH25A:AT; 2002-11-01~2003-05-01 |
29721-85FA0-000 |
from US $15.55 |
||
|
46
|
46
29733-57BT0-000 O-RING SET,2ND BK ACC PSTNH25A:AT; 2002-11-01~2003-05-01 |
29733-57BT0-000 |
from US $11.50 |
||
|
47
|
47
29644-85FA0-000 SPRING,2ND BRAKE ACC NO.1H25A:AT; 2002-11-01~2003-05-01 |
29644-85FA0-000 |
from US $8.89 |
||
|
48
|
48
29645-57B10-000
SPRING,2ND BRAKE ACC NO,2
H25A:AT; 2002-11-01~2003-05-01 |
29645-57B10-000 |
— | ||
|
49
|
49
29722-85FA0-000 PISTON,DIRECT CLH25A:AT; 2002-11-01~2003-05-01 |
29722-85FA0-000 |
from US $13.21 |
||
|
50
|
50
29732-57BT0-000 O-RING SET,DIRECT CL ACC PSTNH25A:AT; 2002-11-01~2003-05-01 |
29732-57BT0-000 |
from US $11.18 |
||
|
51
|
51
29643-85FA0-000 SPRING,DIRECT CL ACCH25A:AT; 2002-11-01~2003-05-01 |
29643-85FA0-000 |
US $11.56 |
||
|
52
|
52
29723-77ED0-000 PISTON,FWD CLUTCH ACCH25A:AT; 2002-11-01~2003-05-01 |
29723-77ED0-000 |
from US $36.77 |
||
|
53
|
53
29731-57BT0-000 O-RING,FORWARD CL ACC PSTNH25A:AT; 2002-11-01~2003-05-01 |
29731-57BT0-000 |
from US $10.06 |
||
|
54
|
54
29641-77ED0-000 SPRING,FORWARD CL ACC NO.1H25A:AT; 2002-11-01~2003-05-01 |
29641-77ED0-000 |
US $17.15 |
||
|
55
|
55
29642-85FD0-000 SPRING,DIRECT CL ACC NO.1H25A:AT; 2002-11-01~2003-05-01 |
29642-85FD0-000 |
US $15.04 |
||
|
56
|
56
26412-57B00-000 CIRCLIP,FWD CL ACC PSTNH25A:AT; 2002-11-01~2003-05-01 |
26412-57B00-000 |
from US $3.40 |
