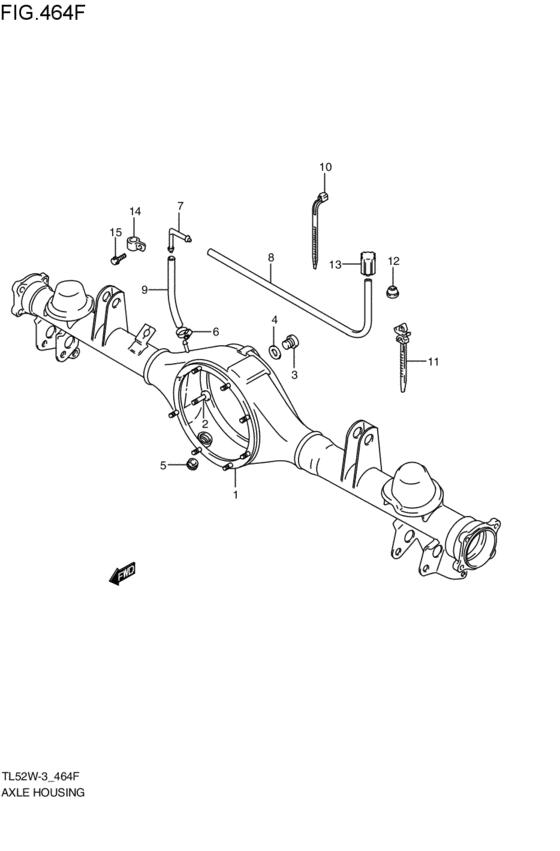

axle housing (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46500-65D70-000 HOUSING,RR AXLE2002-11-01~2005-02-01 |
46500-65D70-000 |
from US $702.81 |
||
|
2
|
2
09119-10057-000 Bolt2002-11-01~2005-02-01 |
09119-10057-000 |
from US $0.97 |
||
|
3
|
3
09248-20003-000 PLUG2002-11-01~2005-02-01 |
09248-20003-000 |
from US $2.81 |
||
|
4
|
4
09168-20003-000 GASKET(20X27X2)Gasket (20x27x2) 2002-11-01~2005-02-01 |
09168-20003-000 |
from US $2.28 |
||
|
5
|
5
09246-16010-000 PLUG2002-11-01~2005-02-01 |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
5
|
5
09246-16021-000 Plug,t/m Oil Drain2002-11-01~2005-02-01 |
09246-16021-000 |
from US $4.37 |
||
|
6
|
6
09400-16304-000 CLAMP2002-11-01~2005-02-01 |
09400-16304-000 |
from US $1.98 |
||
|
7
|
7
09367-08003-000 UNION2002-11-01~2005-02-01 |
09367-08003-000 |
US $42.70 |
||
|
8
|
8
46545-65D00-000 HOSE,BREATHER L:14802002-11-01~2005-02-01 |
46545-65D00-000 |
from US $11.30 |
||
|
9
|
9
46546-65D00-000 HOSE,BREATHER L:3102002-11-01~2005-02-01 |
46546-65D00-000 |
from US $5.27 |
||
|
10
|
10
09407-19401-000 CLAMP(L:190)2002-11-01~2005-02-01 |
09407-19401-000 |
from US $4.17 |
||
|
11
|
11
09407-14408-000 CLAMP(L:120)2002-11-01~2005-02-01 |
09407-14408-000 |
US $9.20 |
||
| replacement | |||||
|
11
|
11
09407-17402-000 CLAMP2002-11-01~2005-02-01 |
09407-17402-000 |
from US $1.98 |
||
|
12
|
12
09308-11009-000 GROMMET2002-11-01~2005-02-01 |
09308-11009-000 |
US $28 |
||
|
13
|
13
27991-65D01-000 PLUG,BREATHER2002-11-01~2005-02-01 |
27991-65D01-000 |
from US $1.92 |
||
|
14
|
14
09403-14408-000 CLAMP2002-11-01~2005-02-01 |
09403-14408-000 |
from US $4.62 |
||
|
15
|
15
02162-06123-000
Bolt (6x12)
2002-11-01~2005-02-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
02162-0612B-000 SCREWBolt 2002-11-01~2005-02-01 |
02162-0612B-000 |
from US $0.80 |
||
|
15
|
15
02162-0612A-000 SCREWBolt, bracket 2002-11-01~2005-02-01 |
02162-0612A-000 |
from US $0.79 |
||
