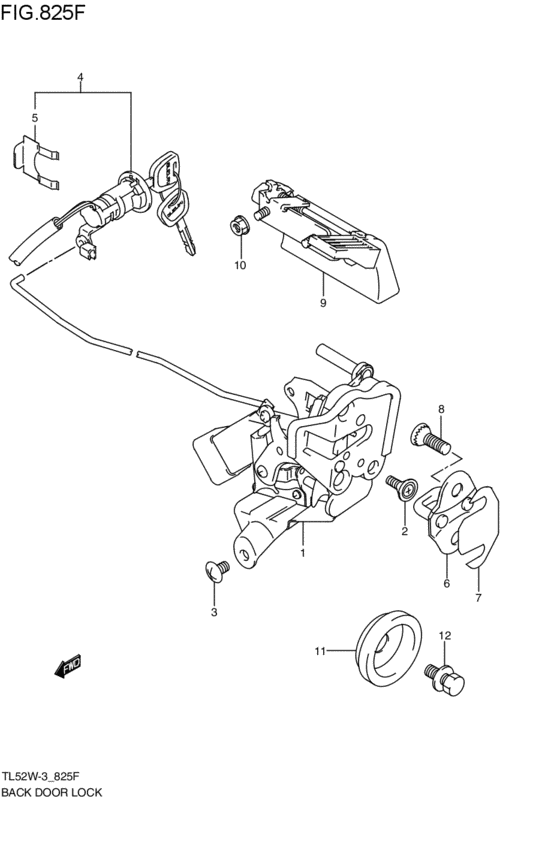

back door lock (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82510-65D10-000
LATCH BACK DOOR
2002-11-01~2005-02-01 |
82510-65D10-000 |
— | ||
| replacement | |||||
|
1
|
1
82510-65D11-000 LATCH ASSY,BACK DR2002-11-01~2005-02-01 |
82510-65D11-000 |
from US $267.30 |
||
|
2
|
2
82581-52D00-000
スクリュ,ドアラッチ
2002-11-01~2005-02-01 |
82581-52D00-000 |
— | ||
| replacement | |||||
|
2
|
2
82581-52D02-000 SCREW,DOOR LATCH2002-11-01~2005-02-01 |
82581-52D02-000 |
US $2.17 |
||
|
3
|
3
02142-06103-000
Screw
2002-11-01~2005-02-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
02142-0610B-000 SCREWStopper, cl rlse cam shaft 2002-11-01~2005-02-01 |
02142-0610B-000 |
from US $0.76 |
||
|
3
|
3
02142-0610A-000 SCREW2002-11-01~2005-02-01 |
02142-0610A-000 |
from US $0.96 |
||
|
4
|
4
82500-65860-000 CYLINDER,BACK DR LATCH LOCK2002-11-01~2005-02-01 |
82500-65860-000 |
from US $44.71 |
||
|
5
|
5
82291-52D00-000 RETAINER,FR DOOR CYLINDER2002-11-01~2005-02-01 |
82291-52D00-000 |
from US $2.25 |
||
|
6
|
6
82610-60A01-000 STRIKER,FR DOOR LATCH2002-11-01~2005-02-01 |
82610-60A01-000 |
from US $10.71 |
||
|
7
|
7
78199-78000-000 SPACER,DOOR LOCK STRIKER2002-11-01~2005-02-01 |
78199-78000-000 |
from US $0.68 |
||
|
8
|
8
09137-08011-000 SCREW(8X18)2002-11-01~2005-02-01 |
09137-08011-000 |
from US $1.40 |
||
|
9
|
9
82850-65D00-5PK HANDLE, BACK DOOR OUTER (BLACK)ブラック; 2002-11-01~2005-02-01 |
82850-65D00-5PK |
from US $42.89 |
||
|
10
|
10
08316-10063-000
Nut
2002-11-01~2005-02-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT2002-11-01~2005-02-01 |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
82761-61A00-000 MALE,BACK DR STOP DR2002-11-01~2005-02-01 |
82761-61A00-000 |
from US $15.44 |
||
|
12
|
12
09118-08128-000 BOLT(8X16)Bolt, front fender, front 2002-11-01~2005-02-01 |
09118-08128-000 |
US $1.44 |
||
