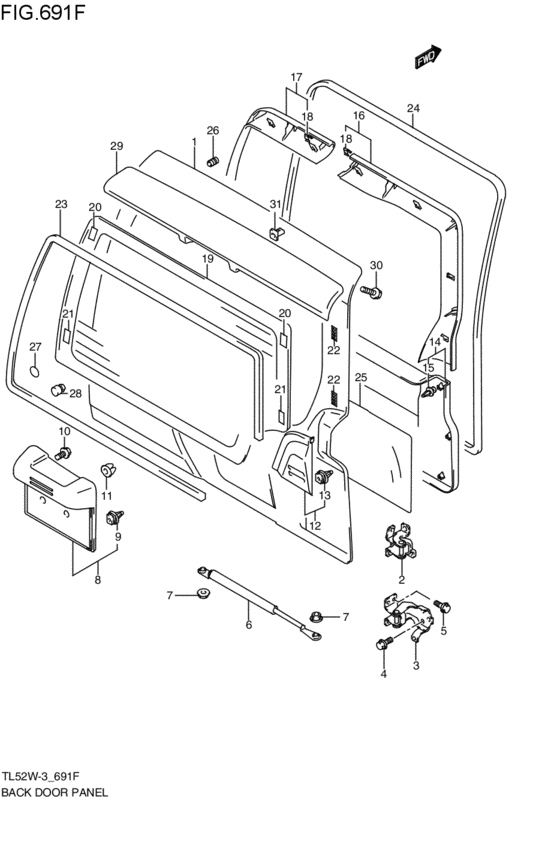

back door panel (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
69100-52822-000 PANEL,BACK DOOR2002-11-01~2005-02-01 |
69100-52822-000 |
from US $642.67 |
||
|
2
|
2
69510-65D00-000 HINGE,BACK DOOR UPR2002-11-01~2005-02-01 |
69510-65D00-000 |
from US $43.09 |
||
|
3
|
3
69520-65D10-000 HINGE,BACK DOOR LWR2002-11-01~2005-02-01 |
69520-65D10-000 |
from US $39.92 |
||
|
4
|
4
01551-08253-000
Bolt
2002-11-01~2005-02-01 |
01551-08253-000 |
— | ||
| replacement | |||||
|
4
|
4
01551-0825A-000 Bolt2002-11-01~2005-02-01 |
01551-0825A-000 |
from US $1.12 |
||
|
5
|
5
01551-08253-000
Bolt
2002-11-01~2005-02-01 |
01551-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01551-0825A-000 Bolt2002-11-01~2005-02-01 |
01551-0825A-000 |
from US $1.12 |
||
|
6
|
6
81851-65D00-000 UNIT,BACK DR BALANCER2002-11-01~2005-02-01 |
81851-65D00-000 |
from US $104.90 |
||
|
7
|
7
09159-06076-000 NUT2002-11-01~2005-02-01 |
09159-06076-000 |
from US $0.99 |
||
|
8
|
8
83930-65D01-5PK GARNISH,RR LIC PLATEブラック; 2002-11-01~2005-02-01 |
83930-65D01-5PK |
from US $119.54 |
||
|
9
|
9
83942-61A02-000 CLIP2002-11-01~2005-02-01 |
83942-61A02-000 |
from US $0.68 |
||
| replacement | |||||
|
9
|
9
83942-65D00-000 CLIP2002-11-01~2005-02-01 |
83942-65D00-000 |
from US $1.52 |
||
|
10
|
10
09132-06006-000 SCREW(6X12)2002-11-01~2005-02-01 |
09132-06006-000 |
from US $0.88 |
||
|
11
|
11
09148-06007-000 NUT2002-11-01~2005-02-01 |
09148-06007-000 |
from US $0.91 |
||
|
12
|
12
83940-65D10-5PK COVER,BACK DR HINGEブラック; 2002-11-01~2005-02-01 |
83940-65D10-5PK |
from US $27.90 |
||
|
13
|
13
83942-65D00-000 CLIP2002-11-01~2005-02-01 |
83942-65D00-000 |
from US $1.52 |
||
|
14
|
14
83770-65D00-R8H TRIM,BACK DOORベ-ジュ; 2002-11-01~2005-02-01 |
83770-65D00-R8H |
from US $99.05 |
||
|
14
|
14
83770-65D00-R8J TRIM,BACK DOORグレ-; 2002-11-01~2005-02-01 |
83770-65D00-R8J |
from US $125.08 |
||
|
15
|
15
09409-08320-000 CLIP2002-11-01~2005-02-01 |
09409-08320-000 |
from US $1.15 |
||
|
16
|
16
83780-65D00-R8H TRIM,BACK DOOR UPPER,Rベ-ジュ; 2002-11-01~2005-02-01 |
83780-65D00-R8H |
from US $29.27 |
||
|
16
|
16
83780-65D00-6GS TRIM,BACK DOOR UPPER,Rグレ-; 2002-11-01~2005-02-01 |
83780-65D00-6GS |
from US $42.53 |
||
|
17
|
17
83790-65D00-R8H TRIM,BACK DOOR UPPER,Lベ-ジュ; 2002-11-01~2005-02-01 |
83790-65D00-R8H |
from US $35.87 |
||
|
17
|
17
83790-65D00-6GS TRIM,BACK DOOR UPPER,Lグレ-; 2002-11-01~2005-02-01 |
83790-65D00-6GS |
from US $26.24 |
||
|
18
|
18
09409-10308-000 CLIPスチール; 2002-11-01~2005-02-01 |
09409-10308-000 |
from US $1.60 |
||
|
19
|
19
84580-65D21-000 GLASS,BACK DR WINDOWダークグレー,ASAHI; 2002-11-01~2005-02-01 |
84580-65D21-000 |
US $598.19 |
||
|
20
|
20
84512-65D00-000 MALE,GLASS FASTENER NO.12002-11-01~2005-02-01 |
84512-65D00-000 |
from US $3.04 |
||
|
21
|
21
84513-65D00-000 MALE,GLASS FASTENER NO.22002-11-01~2005-02-01 |
84513-65D00-000 |
from US $2.13 |
||
|
22
|
22
84515-65D00-000 FEMALE,GLASS FASTENER NO.22002-11-01~2005-02-01 |
84515-65D00-000 |
from US $3.60 |
||
|
23
|
23
84623-65D00-5PK MOLDING,BACK WDOブラック; 2002-11-01~2005-02-01 |
84623-65D00-5PK |
from US $76.03 |
||
|
24
|
24
84681-65D10-5PK
Weatherstrip,back door opening
ブラック; 2002-11-01~2005-02-01 |
84681-65D10-5PK |
— | ||
| replacement | |||||
|
24
|
24
84681-65D00-5PK WEATHERSTRIP,BACK DR OPNGブラック; 2002-11-01~2005-02-01 |
84681-65D00-5PK |
from US $67.93 |
||
|
25
|
25
83911-60X51-000
Cover, door sealing (600x1200)
2002-11-01~2005-02-01 |
83911-60X51-000 |
— | ||
| replacement | |||||
|
25
|
25
83911-60X52-000 COVER,DR SEALING2002-11-01~2005-02-01 |
83911-60X52-000 |
US $6.06 |
||
|
26
|
26
82683-60B10-000 CUSHION2002-11-01~2005-02-01 |
82683-60B10-000 |
from US $1.92 |
||
|
27
|
27
77191-76F00-000 FILM2002-11-01~2005-02-01 |
77191-76F00-000 |
from US $1.60 |
||
|
28
|
28
76684-65D00-000 STOPPER,BACK DOOR LOWER2002-11-01~2005-02-01 |
76684-65D00-000 |
from US $1.82 |
||
|
29
|
29
83980-65D00-ZA4
SPOILER,BACK DOOR
ベ-ジュ; 2002-11-01~2005-02-01 |
83980-65D00-ZA4 |
— | ||
|
29
|
29
83980-65D00-ZA5 SPOILER,BACK DOORホワイト; 2002-11-01~2005-02-01 |
83980-65D00-ZA5 |
from US $432.25 |
||
|
29
|
29
83980-65D00-Z2S SPOILER,BACK DOORシルバ-; 2002-11-01~2005-02-01 |
83980-65D00-Z2S |
from US $354.69 |
||
|
29
|
29
83980-65D00-Z2U SPOILER,BACK DOORブル-; 2002-11-01~2005-02-01 |
83980-65D00-Z2U |
US $517.44 |
||
|
30
|
30
01560-06163-000
Bolt
2002-11-01~2005-02-01 |
01560-06163-000 |
— | ||
| replacement | |||||
|
30
|
30
01560-0616A-000 Bolt2002-11-01~2005-02-01 |
01560-0616A-000 |
US $0.96 |
||
|
31
|
31
09410-00076-000 CLIP2002-11-01~2005-02-01 |
09410-00076-000 |
from US $1.33 |
||
