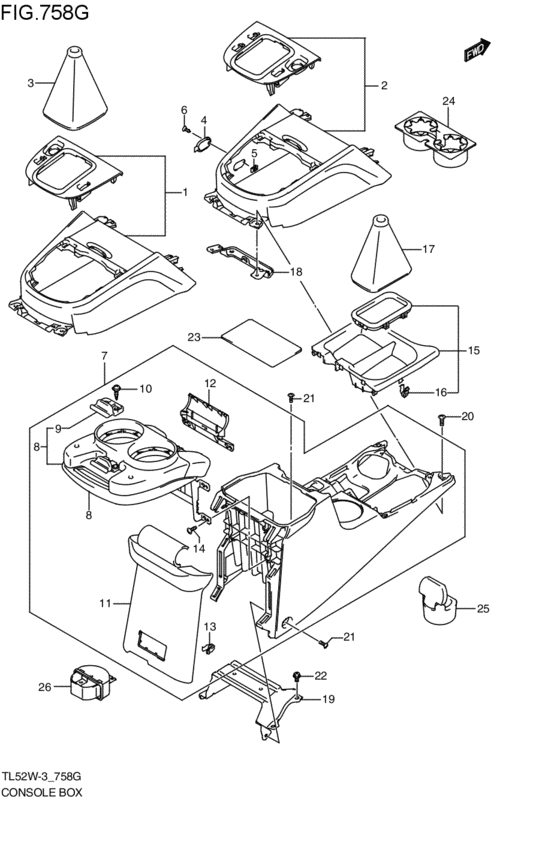

console box (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
75810-50J20-ME2
BOX,FLOOR CONSOLE FR
グレー/シルバー; AT; 2002-11-01~2005-02-01 |
75810-50J20-ME2 |
— | ||
|
2
|
2
75810-50J20-ME3
BOX,FLOOR CONSOLE FR
ベージュ/シルバー; AT; 2002-11-01~2005-02-01 |
75810-50J20-ME3 |
— | ||
|
4
|
4
75818-60E30-R8H
CAP,CTR CONSOLE FR
ベ-ジュ; AT; 2002-11-01~2005-02-01 |
75818-60E30-R8H |
— | ||
|
4
|
4
75818-60E30-R8J
Cap,center console front(gray)
グレ-; AT; 2002-11-01~2005-02-01 |
75818-60E30-R8J |
— | ||
|
5
|
5
09148-05045-000 NUTAT; 2002-11-01~2005-02-01 |
09148-05045-000 |
from US $0.79 |
||
|
6
|
6
03222-05123-000
スクリュ
AT; 2002-11-01~2005-02-01 |
03222-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
03222-0512B-000 SCREWAT; 2002-11-01~2005-02-01 |
03222-0512B-000 |
US $0.80 |
||
|
7
|
7
75910-50J00-KV2
BOX,FLOOR CONSOLE RR
グレー/ブラック; 2002-11-01~2005-02-01 |
75910-50J00-KV2 |
— | ||
|
7
|
7
75910-50J00-KV3
BOX,FLOOR CONSOLE RR
ベージュ/ブラック; 2002-11-01~2005-02-01 |
75910-50J00-KV3 |
— | ||
|
8
|
8
75912-50J00-KV2 ARMREST,RR CONSOLE(GRAY/BLACK)グレー/ブラック; 2002-11-01~2005-02-01 |
75912-50J00-KV2 |
from US $216.09 |
||
|
8
|
8
75912-50J00-KV3
ARMREST,RR CONSOLE
ベージュ/ブラック; 2002-11-01~2005-02-01 |
75912-50J00-KV3 |
— | ||
|
9
|
9
75917-50J00-000 LOCK,ARMREST2002-11-01~2005-02-01 |
75917-50J00-000 |
from US $12.96 |
||
|
10
|
10
75918-50J00-000 SCREW,ARMREST LOCK2002-11-01~2005-02-01 |
75918-50J00-000 |
from US $1.80 |
||
|
11
|
11
75914-50J00-R8H
PANEL,FLOOR CONSOLE RR
ベージュ; 2002-11-01~2005-02-01 |
75914-50J00-R8H |
— | ||
|
11
|
11
75914-50J00-R8J PANEL,FLOOR CONSOLE RRグレー; 2002-11-01~2005-02-01 |
75914-50J00-R8J |
US $37.17 |
||
|
12
|
12
75915-50J00-R8H
GARNISH,FL CSL RR
ベージュ; 2002-11-01~2005-02-01 |
75915-50J00-R8H |
— | ||
|
12
|
12
75915-50J00-R8J GARNISH,FL CSL RRグレー; 2002-11-01~2005-02-01 |
75915-50J00-R8J |
US $18.33 |
||
|
13
|
13
09409-08326-000 CLIP2002-11-01~2005-02-01 |
09409-08326-000 |
from US $0.76 |
||
|
14
|
14
03541-05163-000
Screw
2002-11-01~2005-02-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
14
|
14
03541-0516A-000 SCREW2002-11-01~2005-02-01 |
03541-0516A-000 |
from US $0.76 |
||
|
15
|
15
75920-50J00-KM6
COVER,CONSOLE BOX
グレー/クローム; 2002-11-01~2005-02-01 |
75920-50J00-KM6 |
— | ||
|
15
|
15
75920-50J00-KM7
COVER,CONSOLE BOX
ベージュ/クローム; 2002-11-01~2005-02-01 |
75920-50J00-KM7 |
— | ||
|
16
|
16
09409-08326-000 CLIP2002-11-01~2005-02-01 |
09409-08326-000 |
from US $0.76 |
||
|
17
|
17
75930-50J00-5PK BOOT,TRANSFER LEVERブラック; 2002-11-01~2005-02-01 |
75930-50J00-5PK |
from US $37.31 |
||
|
18
|
18
75851-50J00-000 BRACKET,FLOOR CONSOLE BOX,FRMT,H25A; 2002-11-01~2005-02-01 |
75851-50J00-000 |
US $11.22 |
||
|
19
|
19
75951-50J00-000 BRACKET,FLOOR CONSOLE BOX,RR2002-11-01~2005-02-01 |
75951-50J00-000 |
from US $10.44 |
||
|
20
|
20
02142-05123-000
Screw 5x12
2002-11-01~2005-02-01 |
02142-05123-000 |
— | ||
| replacement | |||||
|
20
|
20
02142-0512A-000 SCREWScrew, lower 2002-11-01~2005-02-01 |
02142-0512A-000 |
from US $0.96 |
||
|
21
|
21
02142-05123-000
Screw 5x12
2002-11-01~2005-02-01 |
02142-05123-000 |
— | ||
| replacement | |||||
|
21
|
21
02142-0512A-000 SCREWScrew, lower 2002-11-01~2005-02-01 |
02142-0512A-000 |
from US $0.96 |
||
|
22
|
22
02162-06123-000
Bolt (6x12)
2002-11-01~2005-02-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02162-0612B-000 SCREWBolt 2002-11-01~2005-02-01 |
02162-0612B-000 |
from US $0.80 |
||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket 2002-11-01~2005-02-01 |
02162-0612A-000 |
from US $0.79 |
||
|
23
|
23
75961-50J00-000 SHEET,CONSOLE BOX INNER2002-11-01~2005-02-01 |
75961-50J00-000 |
US $4.16 |
||
|
24
|
24
75820-50J00-5PK HOLDER,CUPブラック; 2002-11-01~2005-02-01 |
75820-50J00-5PK |
from US $34.79 |
||
|
25
|
25
89810-50J01-5PK
ASHTRAY COMPFRONT
ブラック; 2002-11-01~2005-02-01 |
89810-50J01-5PK |
— | ||
| replacement | |||||
|
25
|
25
89810-50J02-5PK ASHTRAY,FRブラック; 2002-11-01~2005-02-01 |
89810-50J02-5PK |
from US $36.11 |
||
|
26
|
26
89850-50J00-R8H
ASHTRAY,RR
ベージュ; 2002-11-01~2005-02-01 |
89850-50J00-R8H |
— | ||
|
26
|
26
89850-50J00-R8J ASHTRAY,RRグレ-; 2002-11-01~2005-02-01 |
89850-50J00-R8J |
from US $11.18 |
||
