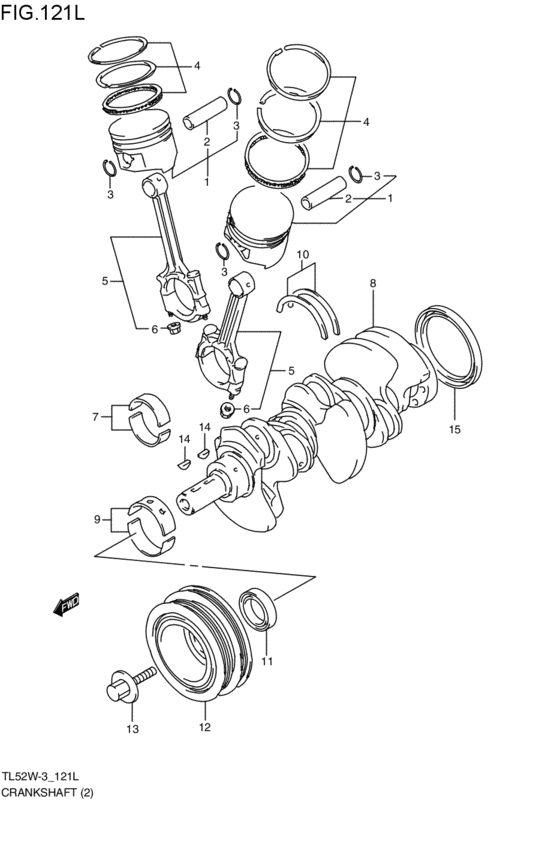

crankshaft (H25A; 2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-86831-0A0 PISTON SET,STD MARK 1マ-ク 1; H25A; 2002-11-01~2003-05-01 |
12100-86831-0A0 |
from US $94.41 |
||
|
1
|
1
12100-86831-0B0 PISTON SET,STD MARK 2マ-ク 2; H25A; 2002-11-01~2003-05-01 |
12100-86831-0B0 |
from US $62.01 |
||
|
2
|
2
12151-86FA0-000 PIN,PISTONH25A; 2002-11-01~2003-05-01 |
12151-86FA0-000 |
from US $8.71 |
||
|
3
|
3
09381-21002-000 RING,SNAPH25A; 2002-11-01~2003-05-01 |
09381-21002-000 |
from US $0.93 |
||
|
4
|
4
12140-86FA0-000 RING SET,PISTON STDH25A; 2002-11-01~2003-05-01 |
12140-86FA0-000 |
from US $56 |
||
|
5
|
5
12160-86FA1-000
Connrod assy
H25A; 2002-11-01~2003-05-01 |
12160-86FA1-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-86FB0-000 CONNROD ASSYH25A; 2002-11-01~2003-05-01 |
12160-86FB0-000 |
from US $129.90 |
||
|
6
|
6
09159-09005-000 NUTH25A; 2002-11-01~2003-05-01 |
09159-09005-000 |
from US $1.44 |
||
|
7
|
7
12100-85824-0A0 BEARING SET,CONNROD, GREENGreen グリーン; H25A; 2002-11-01~2003-05-01 |
12100-85824-0A0 |
from US $23.40 |
||
|
7
|
7
12100-85824-0B0 BEARING SET,CONNROD, BLACKBlack ブラック; H25A; 2002-11-01~2003-05-01 |
12100-85824-0B0 |
from US $24.01 |
||
|
7
|
7
12100-85824-0C0 BEARING SET,CONNROD, NO COLORColor: None カラー:ナシ; H25A; 2002-11-01~2003-05-01 |
12100-85824-0C0 |
from US $21.26 |
||
|
7
|
7
12100-85824-0D0 BEARING SET,CONNROD, YELLOWYellow イエロー; H25A; 2002-11-01~2003-05-01 |
12100-85824-0D0 |
from US $20.70 |
||
|
7
|
7
12100-85824-0E0 BEARING SET,CONNROD, BLUEBlue ブルー; H25A; 2002-11-01~2003-05-01 |
12100-85824-0E0 |
from US $28.33 |
||
|
7
|
7
12100-85824-025 BEARING SET,CONNROD US:0.25Red レッド; H25A; 2002-11-01~2003-05-01 |
12100-85824-025 |
from US $19.32 |
||
|
8
|
8
12221-86FA1-000 CRANKSHAFTH25A; 2002-11-01~2003-05-01 |
12221-86FA1-000 |
from US $998.73 |
||
|
9
|
9
12300-86812-0BA BEARING SET,CRANKSHAFT USBearing set, crankshaft (red/black) レッド/ブラック; H25A; 2002-11-01~2003-05-01 |
12300-86812-0BA |
from US $23.74 |
||
|
9
|
9
12300-86812-0CA BEARING SET,CRANKSHAFT USRed レッド; H25A; 2002-11-01~2003-05-01 |
12300-86812-0CA |
from US $23.74 |
||
|
9
|
9
12300-86812-0DA BEARING SET,CRANKSHAFT USBearing set, crankshaft (red/yellow) レッド/イエロー; H25A; 2002-11-01~2003-05-01 |
12300-86812-0DA |
from US $22.32 |
||
|
9
|
9
12300-86812-0EA BEARING SET,CRANKSHAFT USBearing set, crankshaft (red/blue) レッド/ブルー; H25A; 2002-11-01~2003-05-01 |
12300-86812-0EA |
from US $22.07 |
||
|
9
|
9
12300-86812-0FA BEARING SET,CRANKSHAFT USBearing set, crankshaft (red/pink) レッド/ピンク; H25A; 2002-11-01~2003-05-01 |
12300-86812-0FA |
from US $15.05 |
||
|
9
|
9
12340-86FA2-0B0 BEARING SET,CRANKSHAFT STDブラック; H25A; 2002-11-01~2003-05-01 |
12340-86FA2-0B0 |
from US $27.65 |
||
|
9
|
9
12340-86FA2-0C0 BEARING SET,CRANKSHAFT STDカラー:ナシ; H25A; 2002-11-01~2003-05-01 |
12340-86FA2-0C0 |
from US $25.55 |
||
|
9
|
9
12340-86FA2-0D0 BEARING SET,CRANKSHAFT STDBearing set, crankshaft (yellow) イエロー; H25A; 2002-11-01~2003-05-01 |
12340-86FA2-0D0 |
from US $25.55 |
||
|
9
|
9
12340-86FA2-0E0 BEARING SET,CRANKSHAFT STDBlue ブルー; H25A; 2002-11-01~2003-05-01 |
12340-86FA2-0E0 |
from US $25.55 |
||
|
9
|
9
12340-86FA2-0F0 BEARING SET,CRANKSHAFT STDPink ピンク; H25A; 2002-11-01~2003-05-01 |
12340-86FA2-0F0 |
from US $28.42 |
||
|
10
|
10
12300-85830-012 BEARING SET,CRANK THRUST OSBearing set, crank thrust (os:0.12) H25A; 2002-11-01~2003-05-01 |
12300-85830-012 |
from US $20.81 |
||
|
10
|
10
12300-85830-000 BEARING SET,CRANK THRUSTH25A; 2002-11-01~2003-05-01 |
12300-85830-000 |
from US $14.22 |
||
|
11
|
11
09283-45012-000 SEAL,OIL(45X63X7.5)H25A; 2002-11-01~2003-05-01 |
09283-45012-000 |
from US $15.48 |
||
|
12
|
12
12610-85FA1-000 PULLEY,CRANKSHAFTH25A; 2002-11-01~2003-05-01 |
12610-85FA1-000 |
from US $318.89 |
||
|
13
|
13
12615-85FA0-000 BOLT,CRANK PULLEYH25A; 2002-11-01~2003-05-01 |
12615-85FA0-000 |
from US $13.97 |
||
|
14
|
14
08341-31059-000 KEYKey H25A; 2002-11-01~2003-05-01 |
08341-31059-000 |
from US $1.53 |
||
|
15
|
15
09283-98002-000 SEAL,OIL(98X116X10)H25A; 2002-11-01~2003-05-01 |
09283-98002-000 |
from US $46.17 |
||
