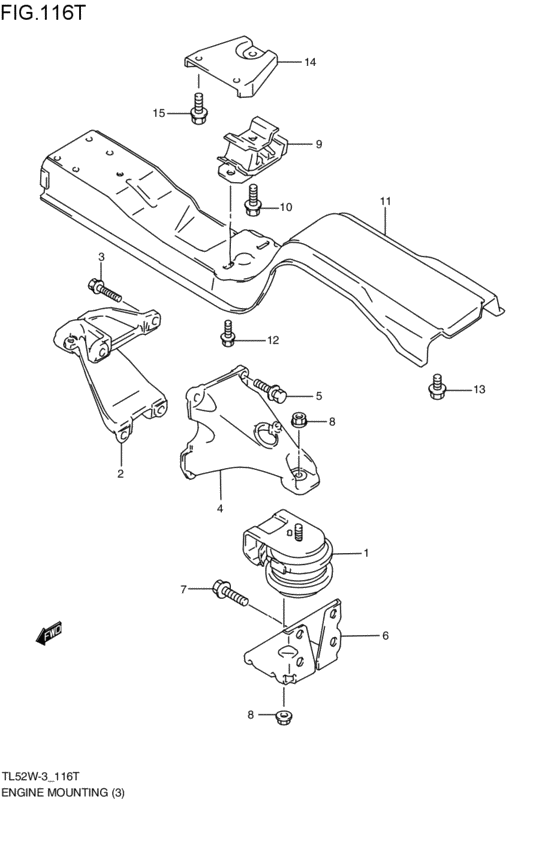

engine mounting (H25A; 2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-67D00-000 MOUNTING,ENG FRH25A; 2002-11-01~2003-05-01 |
11610-67D00-000 |
from US $154.94 |
||
|
2
|
2
11641-67D10-000 BRACKET,ENG FR MTG,RH25A; 2002-11-01~2003-05-01 |
11641-67D10-000 |
from US $69.84 |
||
|
3
|
3
01560-10303-000
ボルト
H25A; 2002-11-01~2003-05-01 |
01560-10303-000 |
— | ||
| replacement | |||||
|
3
|
3
01560-1030A-000 BoltH25A; 2002-11-01~2003-05-01 |
01560-1030A-000 |
US $1.12 |
||
|
4
|
4
11651-67D00-000 BRACKET,ENG FR MTG,LH25A; 2002-11-01~2003-05-01 |
11651-67D00-000 |
from US $60.39 |
||
|
5
|
5
01560-10303-000
ボルト
H25A; 2002-11-01~2003-05-01 |
01560-10303-000 |
— | ||
| replacement | |||||
|
5
|
5
01560-1030A-000 BoltH25A; 2002-11-01~2003-05-01 |
01560-1030A-000 |
US $1.12 |
||
|
6
|
6
11661-65D00-000 BRACKET,ENG FR MTG FRAME SIDEH25A; 2002-11-01~2003-05-01 |
11661-65D00-000 |
from US $17.33 |
||
|
7
|
7
09112-12001-000 BOLT(12X35)H25A; 2002-11-01~2003-05-01 |
09112-12001-000 |
US $22.40 |
||
|
8
|
8
08316-10103-000
Nut
H25A; 2002-11-01~2003-05-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1010B-000 NUTH25A; 2002-11-01~2003-05-01 |
08316-1010B-000 |
from US $0.80 |
||
|
9
|
9
11710-65D03-000 MOUNTING,ENG RRH25A; 2002-11-01~2003-04-01 |
11710-65D03-000 |
from US $97.52 |
||
|
10
|
10
01560-10253-000
SCHRAUBE
H25A; 2002-11-01~2003-05-01 |
01560-10253-000 |
— | ||
| replacement | |||||
|
10
|
10
01560-1025A-000 BoltH25A; 2002-11-01~2003-05-01 |
01560-1025A-000 |
from US $1.07 |
||
|
11
|
11
11730-68D02-000 MEMBER,ENG RRH25A; 2002-11-01~2003-05-01 |
11730-68D02-000 |
from US $132.95 |
||
|
12
|
12
01560-10163-000
ボルト
H25A; 2002-11-01~2003-05-01 |
01560-10163-000 |
— | ||
| replacement | |||||
|
12
|
12
01560-1016A-000 BoltH25A; 2002-11-01~2003-05-01 |
01560-1016A-000 |
US $0.96 |
||
|
13
|
13
09112-10006-000 BOLT(10X25)H25A; 2002-11-01~2003-05-01 |
09112-10006-000 |
US $1.38 |
||
|
14
|
14
11741-77E11-000 BRACKET,ENG RR MTGH25A; 2002-11-01~2003-05-01 |
11741-77E11-000 |
from US $10.94 |
||
|
15
|
15
01560-10253-000
SCHRAUBE
H25A; 2002-11-01~2003-05-01 |
01560-10253-000 |
— | ||
| replacement | |||||
|
15
|
15
01560-1025A-000 BoltH25A; 2002-11-01~2003-05-01 |
01560-1025A-000 |
from US $1.07 |
||
