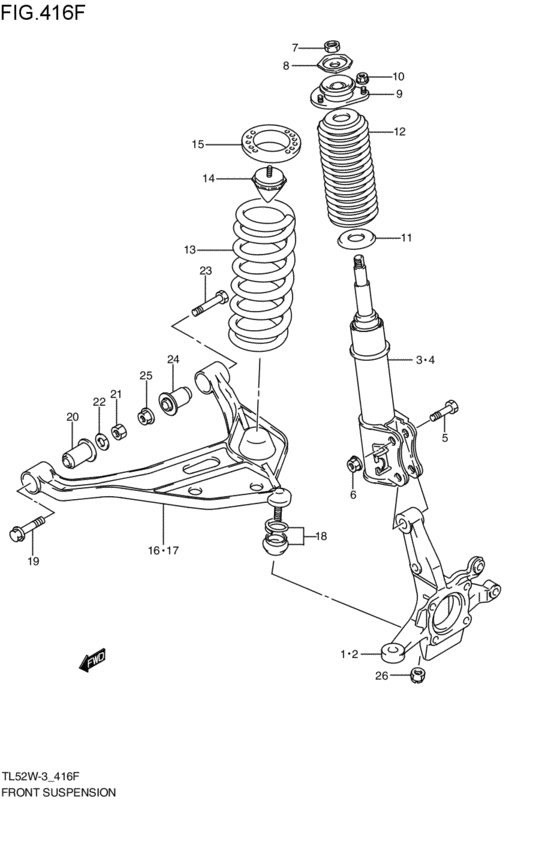

front suspension (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45111-65DV1-000 KNUCKLE,STEERING,R2002-11-01~2005-02-01 |
45111-65DV1-000 |
from US $320.16 |
||
|
2
|
2
45151-65DV1-000 KNUCKLE,STEERING,L2002-11-01~2005-02-01 |
45151-65DV1-000 |
from US $264.17 |
||
|
3
|
3
41601-65D10-000 STRUT ASSY,FR SUSPENSION,R2002-11-01~2005-02-01 |
41601-65D10-000 |
from US $285.20 |
||
|
4
|
4
41602-65D10-000 STRUT ASSY,FR SUSPENSION,L2002-11-01~2005-02-01 |
41602-65D10-000 |
from US $225.45 |
||
|
5
|
5
09100-12057-000 BOLT(12X61)2002-11-01~2005-02-01 |
09100-12057-000 |
from US $2.72 |
||
|
6
|
6
08316-10123-000
Nut
2002-11-01~2005-02-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1012A-000 NUT2002-11-01~2005-02-01 |
08316-1012A-000 |
from US $0.96 |
||
|
7
|
7
09159-14015-000 NUT2002-11-01~2005-02-01 |
09159-14015-000 |
from US $2.08 |
||
|
8
|
8
41841-65D00-000 SEAT,FRONT STRUT UPPER2002-11-01~2005-02-01 |
41841-65D00-000 |
from US $3.83 |
||
|
9
|
9
41810-65D11-000 SUPPORT,FRONT STRUT2002-11-01~2005-02-01 |
41810-65D11-000 |
from US $107.93 |
||
|
10
|
10
09159-10106-000
NUT
2002-11-01~2005-02-01 |
09159-10106-000 |
— | ||
|
11
|
11
41842-60A00-000 SEAT,FRONT STRUT LOWER2002-11-01~2005-02-01 |
41842-60A00-000 |
from US $7.40 |
||
|
12
|
12
41850-65D00-000 BOOT,FR STRUT DUST2002-11-01~2005-02-01 |
41850-65D00-000 |
from US $22.23 |
||
|
13
|
13
41111-65D30-000 SPRING,FRONT COILH25A; 2002-11-01~2003-05-01 |
41111-65D30-000 |
from US $88.65 |
||
|
14
|
14
42110-60A10-000 STOPPER,BUMP2002-11-01~2005-02-01 |
42110-60A10-000 |
from US $22.39 |
||
|
15
|
15
41211-60A00-000 SEAT,COIL SPRING RUBBER2002-11-01~2005-02-01 |
41211-60A00-000 |
from US $17.26 |
||
|
16
|
16
45201-67D01-000 ARM ASSY,FR SPNSN,R2002-11-01~2005-02-01 |
45201-67D01-000 |
from US $283.16 |
||
|
17
|
17
45202-67D01-000 ARM ASSY,FR SPNSN,L2002-11-01~2005-02-01 |
45202-67D01-000 |
from US $279.14 |
||
|
18
|
18
45706-60A00-000
SEAL SET,SPNSN ARM
2002-11-01~2005-02-01 |
45706-60A00-000 |
— | ||
| replacements | |||||
|
18
|
18
45706-60A01-000
Seal Set,spnsn Arm
2002-11-01~2005-02-01 |
45706-60A01-000 |
— | ||
|
18
|
18
45700-60810-000 Seal Set,suspension Arm2002-11-01~2005-02-01 |
45700-60810-000 |
from US $23.20 |
||
|
19
|
19
09103-12048-000 BOLT(12X90)2002-11-01~2005-02-01 |
09103-12048-000 |
from US $6.17 |
||
|
20
|
20
45261-65D01-000 BUSHING,SPNSN ARM,FR2002-11-01~2005-02-01 |
45261-65D01-000 |
from US $45.56 |
||
|
21
|
21
08310-00123-000
Nut
2002-11-01~2005-02-01 |
08310-00123-000 |
— | ||
| replacement | |||||
|
21
|
21
08310-0012A-000 NUT2002-11-01~2005-02-01 |
08310-0012A-000 |
from US $0.76 |
||
|
22
|
22
08321-01123-000
Washer
2002-11-01~2005-02-01 |
08321-01123-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-0112A-000 WASHER,LOCK2002-11-01~2005-02-01 |
08321-0112A-000 |
from US $0.76 |
||
|
23
|
23
09100-14003-000 BOLT(14X98)2002-11-01~2005-02-01 |
09100-14003-000 |
from US $8.53 |
||
|
24
|
24
45262-65D01-000 BUSHING,SPNSN ARM,RR2002-11-01~2005-02-01 |
45262-65D01-000 |
from US $40.82 |
||
|
25
|
25
09159-14015-000 NUT2002-11-01~2005-02-01 |
09159-14015-000 |
from US $2.08 |
||
|
26
|
26
45717-65D00-000
NUT BALL JOINT STUD CAULKING
2002-11-01~2005-02-01 |
45717-65D00-000 |
— | ||
| replacement | |||||
|
26
|
26
09159-14029-000 NUT2002-11-01~2005-02-01 |
09159-14029-000 |
from US $1.94 |
||
