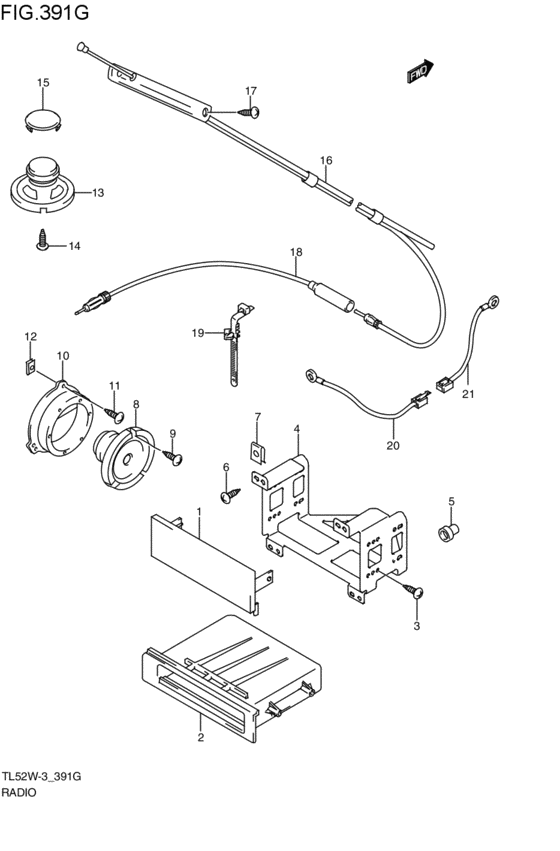

radio (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39161-74G00-000 COVER,RADIO HOLE2002-11-01~2005-02-01 |
39161-74G00-000 |
US $8.65 |
||
|
2
|
2
39182-70E51-000 POCKET,TUNER2002-11-01~2005-02-01 |
39182-70E51-000 |
from US $13.93 |
||
|
3
|
3
03242-05123-000
Screw, inner cover
2002-11-01~2005-02-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
3
|
3
03241-0512A-000 SCREW2002-11-01~2005-02-01 |
03241-0512A-000 |
from US $0.68 |
||
|
4
|
4
39321-50J11-000
ブラケット,チューナ
2002-11-01~2005-02-01 |
39321-50J11-000 |
— | ||
| replacement | |||||
|
4
|
4
39321-50J02-000 BRACKET,TUNER2002-11-01~2005-02-01 |
39321-50J02-000 |
US $69.60 |
||
|
5
|
5
34955-60E00-000 BUSH2002-11-01~2005-02-01 |
34955-60E00-000 |
US $2.40 |
||
|
6
|
6
03142-05123-000
Screw
2002-11-01~2005-02-01 |
03142-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
03141-0512A-000 SCREWScrew, belt cooling duct 2002-11-01~2005-02-01 |
03141-0512A-000 |
from US $0.76 |
||
|
7
|
7
09148-05045-000 NUT2002-11-01~2005-02-01 |
09148-05045-000 |
from US $0.79 |
||
|
8
|
8
39102-82D00-000 SPEAKER ASSYCLARION; 2002-11-01~2005-02-01 |
39102-82D00-000 |
US $63.66 |
||
|
9
|
9
03142-05163-000
Screw
2002-11-01~2005-02-01 |
03142-05163-000 |
— | ||
| replacement | |||||
|
9
|
9
03141-0516A-000 SCREW2002-11-01~2005-02-01 |
03141-0516A-000 |
from US $0.80 |
||
|
10
|
10
39350-82D00-000 BRACKET,FR SPKRフロント; 2002-11-01~2005-02-01 |
39350-82D00-000 |
US $17.19 |
||
|
11
|
11
03242-06163-000
Screw
2002-11-01~2005-02-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
03241-0616C-000 SCREW2002-11-01~2005-02-01 |
03241-0616C-000 |
from US $0.76 |
||
|
12
|
12
09148-06007-000 NUT2002-11-01~2005-02-01 |
09148-06007-000 |
from US $0.91 |
||
|
13
|
13
39102-63G12-000 SPEAKER ASSYリヤ,CLARION; 2002-11-01~2005-02-01 |
39102-63G12-000 |
from US $25.34 |
||
|
14
|
14
03142-05123-000
Screw
2002-11-01~2005-02-01 |
03142-05123-000 |
— | ||
| replacement | |||||
|
14
|
14
03141-0512A-000 SCREWScrew, belt cooling duct 2002-11-01~2005-02-01 |
03141-0512A-000 |
from US $0.76 |
||
|
15
|
15
39239-50J00-000 CAP,TWEETER HOLE2002-11-01~2005-02-01 |
39239-50J00-000 |
US $2.69 |
||
|
16
|
16
39250-67D00-000 ANTENNA ASSY2002-11-01~2005-02-01 |
39250-67D00-000 |
from US $51.05 |
||
|
17
|
17
39259-50J00-000 SCREW,ANTENNA2002-11-01~2005-02-01 |
39259-50J00-000 |
US $1.88 |
||
|
18
|
18
39270-50J00-000
Feeder comp,pillar antenna
2002-11-01~2005-02-01 |
39270-50J00-000 |
— | ||
| replacement | |||||
|
18
|
18
39270-50JA0-000 FEEDER,PILLAR ANT2002-11-01~2005-02-01 |
39270-50JA0-000 |
US $28.52 |
||
|
19
|
19
09407-12404-000 CLAMP(L:140)2002-11-01~2005-02-01 |
09407-12404-000 |
from US $1.33 |
||
|
20
|
20
39312-65D00-000 WIRE,NOISE SUPPR2002-11-01~2005-02-01 |
39312-65D00-000 |
US $3.90 |
||
|
21
|
21
39312-60B11-000
WIRENOISE SUPPRNO1
2002-11-01~2005-02-01 |
39312-60B11-000 |
— | ||
| replacement | |||||
|
21
|
21
39312-60G00-000 WIRE,NOISE SUPPR2002-11-01~2005-02-01 |
39312-60G00-000 |
from US $3.44 |
||
