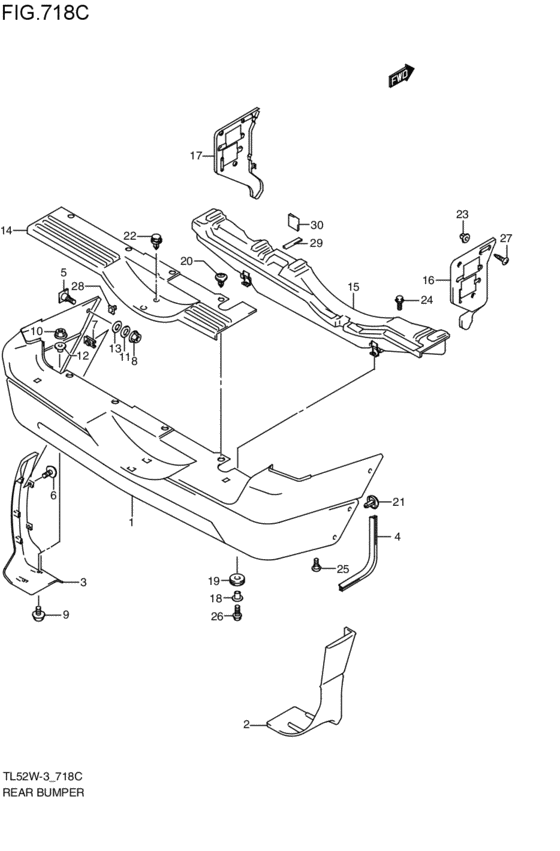

rear bumper (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
71811-65DC1-799 BUMPER,RR(PRIMARY)プライマリ-; 2002-11-01~2005-02-01 |
71811-65DC1-799 |
from US $457.72 |
||
|
2
|
2
71851-65DA0-ZA4
GUARD,RR BUMPER SPL,R
ベ-ジュ; 2002-11-01~2005-02-01 |
71851-65DA0-ZA4 |
— | ||
| replacement | |||||
|
2
|
2
71851-65DA0-799 GUARD,RR BUMPER,Rベ-ジュ; 2002-11-01~2005-02-01 |
71851-65DA0-799 |
US $129.54 |
||
|
2
|
2
71851-65DA0-Z2S GUARD,RR BUMPER SPL,Rシルバ-; 2002-11-01~2005-02-01 |
71851-65DA0-Z2S |
from US $101.36 |
||
|
3
|
3
71861-65DA0-ZA4 GUARD,RR BUMPER SPL,Lベ-ジュ; 2002-11-01~2005-02-01 |
71861-65DA0-ZA4 |
from US $110.32 |
||
|
3
|
3
71861-65DA0-Z2S GUARD,RR BUMPER SPL,Lシルバ-; 2002-11-01~2005-02-01 |
71861-65DA0-Z2S |
from US $92.09 |
||
|
4
|
4
71852-65DB0-ZA4 PROTECTOR,BUMPER SPLベ-ジュ; 2002-11-01~2005-02-01 |
71852-65DB0-ZA4 |
from US $8.51 |
||
|
4
|
4
71852-65DB0-Z2S PROTECTOR,BUMPER SPLシルバ-; 2002-11-01~2005-02-01 |
71852-65DB0-Z2S |
from US $7.54 |
||
|
5
|
5
71745-52E00-000 BOLT,FR BUMPER CTR GRILLE2002-11-01~2005-02-01 |
71745-52E00-000 |
from US $1.76 |
||
|
6
|
6
09136-05060-000 SCREW(5X16)2002-11-01~2005-02-01 |
09136-05060-000 |
from US $0.81 |
||
|
7
|
7
09148-05038-000 NUTNut, inner 2002-11-01~2005-02-01 |
09148-05038-000 |
from US $0.91 |
||
|
8
|
8
08316-10053-000
Nut
2002-11-01~2005-02-01 |
08316-10053-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1005A-000 NUT2002-11-01~2005-02-01 |
08316-1005A-000 |
from US $0.96 |
||
|
9
|
9
09136-06126-000 SCREW(6X25)Bolt 2002-11-01~2005-02-01 |
09136-06126-000 |
from US $4.28 |
||
|
10
|
10
08316-10063-000
Nut
2002-11-01~2005-02-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT2002-11-01~2005-02-01 |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
09160-05045-000 WASHER(5.5X18X1)Washer, vacuum sw valve 2002-11-01~2005-02-01 |
09160-05045-000 |
from US $0.92 |
||
|
12
|
12
09169-06062-000 WASHERWasher 2002-11-01~2005-02-01 |
09169-06062-000 |
from US $1.12 |
||
|
13
|
13
09161-06022-000 WASHER(6.2X19X3)2002-11-01~2005-02-01 |
09161-06022-000 |
from US $1.17 |
||
|
14
|
14
71812-65D01-5PK GARNISH,RR BPRブラック; 2002-11-01~2005-02-01 |
71812-65D01-5PK |
from US $91.46 |
||
|
15
|
15
71820-65D32-000 MEMBER,RR BUMPER2002-11-01~2005-02-01 |
71820-65D32-000 |
US $264.96 |
||
|
16
|
16
71831-65DA0-000 BRACKET,RR BUMPER SIDE,R2002-11-01~2005-02-01 |
71831-65DA0-000 |
from US $69.17 |
||
|
17
|
17
71841-65DA0-000 BRACKET,RR BUMPER SIDE,L2002-11-01~2005-02-01 |
71841-65DA0-000 |
from US $68.60 |
||
|
18
|
18
09169-06062-000 WASHERWasher 2002-11-01~2005-02-01 |
09169-06062-000 |
from US $1.12 |
||
|
19
|
19
09320-09502-000 CUSHIONCushion, leg guard 2002-11-01~2005-02-01 |
09320-09502-000 |
from US $1.62 |
||
|
20
|
20
09409-07325-5PK CLIP(BLACK)ブラック; 2002-11-01~2005-02-01 |
09409-07325-5PK |
from US $1.76 |
||
|
21
|
21
09409-07332-000 CLIP2002-11-01~2005-02-01 |
09409-07332-000 |
from US $1.44 |
||
|
22
|
22
09409-08327-000 CLIP2002-11-01~2005-02-01 |
09409-08327-000 |
from US $1.33 |
||
|
23
|
23
09148-06007-000 NUT2002-11-01~2005-02-01 |
09148-06007-000 |
from US $0.91 |
||
|
24
|
24
01551-08163-000
Bolt
2002-11-01~2005-02-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
24
|
24
01551-0816C-000 Bolt2002-11-01~2005-02-01 |
01551-0816C-000 |
from US $0.96 |
||
|
24
|
24
01551-0816A-000
ボルト
2002-11-01~2005-02-01 |
01551-0816A-000 |
— | ||
|
25
|
25
09122-66004-000
Screw,6x14
2002-11-01~2005-02-01 |
09122-66004-000 |
— | ||
| replacement | |||||
|
25
|
25
09122-66007-000 SCREW(6X14)2002-11-01~2005-02-01 |
09122-66007-000 |
from US $0.80 |
||
|
26
|
26
02162-06203-000
Bolt
2002-11-01~2005-02-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
26
|
26
02162-0620C-000 SCREW2002-11-01~2005-02-01 |
02162-0620C-000 |
from US $0.83 |
||
|
27
|
27
03242-06163-000
Screw
2002-11-01~2005-02-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
27
|
27
03241-0616C-000 SCREW2002-11-01~2005-02-01 |
03241-0616C-000 |
from US $0.76 |
||
|
28
|
28
09410-00076-000 CLIP2002-11-01~2005-02-01 |
09410-00076-000 |
from US $1.33 |
||
|
29
|
29
71881-65D01-000 PAD2002-11-01~2005-02-01 |
71881-65D01-000 |
from US $1.91 |
||
|
30
|
30
71882-65D00-000 PAD2002-11-01~2005-02-01 |
71882-65D00-000 |
from US $1.60 |
||
