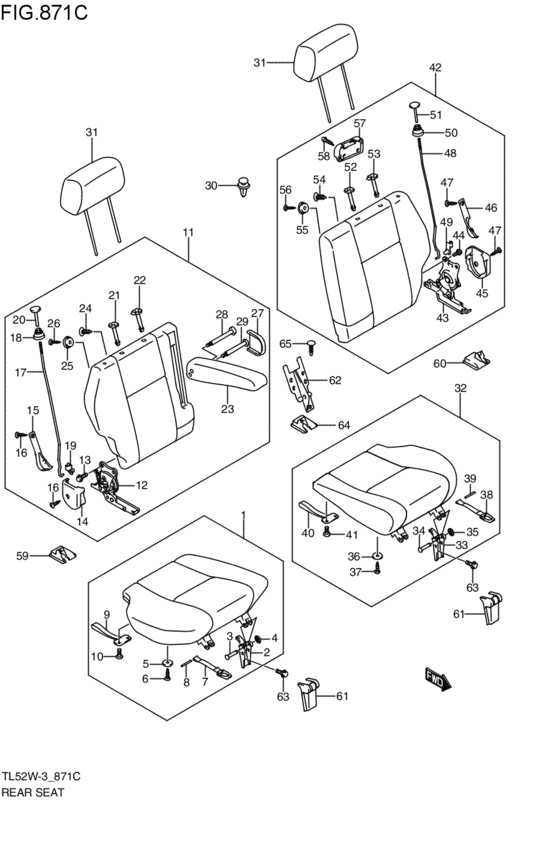

rear seat (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-50JA1-BZE
Cushion assy,rr r
グレー; 2002-11-01~2005-02-01 |
87101-50JA1-BZE |
— | ||
|
1
|
1
87101-50JA1-KK7
Cushion assy,rr r(beige)
ベージュ; 2002-11-01~2005-02-01 |
87101-50JA1-KK7 |
— | ||
|
2
|
2
87151-65DL0-000
LEG,RR CUSH
2002-11-01~2005-02-01 |
87151-65DL0-000 |
— | ||
|
3
|
3
87259-65DL0-000
PIN,REAR CUSH
2002-11-01~2005-02-01 |
87259-65DL0-000 |
— | ||
| replacement | |||||
|
3
|
3
87259-65DL1-000
PIN,REAR CUSH
2002-11-01~2005-02-01 |
87259-65DL1-000 |
— | ||
|
4
|
4
09148-08002-000 NUT2002-11-01~2005-02-01 |
09148-08002-000 |
US $11 |
||
|
5
|
5
87159-65DA0-000 CUSHION,RR CUSH2002-11-01~2005-02-01 |
87159-65DA0-000 |
from US $2.18 |
||
|
6
|
6
03541-05163-000
Screw
2002-11-01~2005-02-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0516A-000 SCREW2002-11-01~2005-02-01 |
03541-0516A-000 |
from US $0.76 |
||
|
7
|
7
87420-65DA0-000 BAND,RR STOPPER2002-11-01~2005-02-01 |
87420-65DA0-000 |
US $18.77 |
||
|
8
|
8
87423-65DA0-000 PIN,REAR STOPPER BAND2002-11-01~2005-02-01 |
87423-65DA0-000 |
US $1.60 |
||
|
9
|
9
87460-65DA0-000 LOCK,RR CUSH2002-11-01~2004-05-01 |
87460-65DA0-000 |
US $29.62 |
||
|
9
|
9
87460-81A00-000 LOCK,RR CUSH2004-06-01~2005-02-01 |
87460-81A00-000 |
US $27.42 |
||
|
10
|
10
03242-05123-000
Screw, inner cover
2002-11-01~2005-02-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0512A-000 SCREW2002-11-01~2005-02-01 |
03241-0512A-000 |
from US $0.68 |
||
|
11
|
11
87301-50JC0-BZE
バックアッシ,リヤ,ライト(グレー)
グレー; 2002-11-01~2005-02-01 |
87301-50JC0-BZE |
— | ||
|
11
|
11
87301-50JC0-KK7
バックアッシ,リヤ,ライト(ベージュ)
ベージュ; 2002-11-01~2005-02-01 |
87301-50JC0-KK7 |
— | ||
|
12
|
12
87210-65D31-000
RECLINING ASSY,RR,R
2002-11-01~2005-02-01 |
87210-65D31-000 |
— | ||
|
13
|
13
01550-10203-000
Bolt
2002-11-01~2005-02-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
13
|
13
01550-1020A-000 BoltBolt, bal sprocket 2002-11-01~2005-02-01 |
01550-1020A-000 |
from US $0.96 |
||
|
14
|
14
87221-65DL0-R8H
COVER,RCLNG OUTSIDE,R
ベ-ジュ; 2002-11-01~2005-02-01 |
87221-65DL0-R8H |
— | ||
|
14
|
14
87221-65DL0-R8J
Cover,rclng outside,r(gray)
グレ-; 2002-11-01~2005-02-01 |
87221-65DL0-R8J |
— | ||
|
15
|
15
87222-65DL0-R8H
COVER,RR RECL INSIDE,R
ベ-ジュ; 2002-11-01~2005-02-01 |
87222-65DL0-R8H |
— | ||
|
15
|
15
87222-65DL0-R8J
COVER,RR RECL INSIDE,R
グレ-; 2002-11-01~2005-02-01 |
87222-65DL0-R8J |
— | ||
|
16
|
16
03242-05103-000
Screw
2002-11-01~2005-02-01 |
03242-05103-000 |
— | ||
| replacements | |||||
|
16
|
16
03242-0510B-000 SCREW2002-11-01~2005-02-01 |
03242-0510B-000 |
US $0.76 |
||
|
16
|
16
03241-0510A-000 SCREW2002-11-01~2005-02-01 |
03241-0510A-000 |
from US $0.80 |
||
|
17
|
17
87215-65DL0-000
ROD,RR RCLNG
2002-11-01~2005-02-01 |
87215-65DL0-000 |
— | ||
|
18
|
18
87319-80G00-000 SILENCER,RR RECLINING ROD2002-11-01~2005-02-01 |
87319-80G00-000 |
from US $1.64 |
||
|
19
|
19
09403-04306-000 CLAMPConnector, choke rod 2002-11-01~2005-02-01 |
09403-04306-000 |
US $20.20 |
||
|
20
|
20
87211-74G00-R8J
Knob,3rd rclng(gray)
グレ-; J20A,H25A; 2002-11-01~2004-09-01 |
87211-74G00-R8J |
— | ||
| replacement | |||||
|
20
|
20
87211-74G10-R8J KNOB,RR BACKグレ-; J20A,H25A; 2002-11-01~2004-09-01 |
87211-74G10-R8J |
from US $2.84 |
||
|
20
|
20
87211-74G00-R8H
Knob,3rd rclng
ベ-ジュ; 2002-11-01~2005-02-01 |
87211-74G00-R8H |
— | ||
| replacement | |||||
|
20
|
20
87211-74G10-R8H KNOB,RR BACKベ-ジュ; 2002-11-01~2005-02-01 |
87211-74G10-R8H |
US $5.76 |
||
|
21
|
21
85341-81A00-R8H GUIDE,HEADRESTRAINTベ-ジュ; 2002-11-01~2005-02-01 |
85341-81A00-R8H |
US $6.04 |
||
|
21
|
21
85341-81A00-R8J GUIDE,HEADRESTRAINTグレ-; J20A,H25A; 2002-11-01~2004-09-01 |
85341-81A00-R8J |
US $6.04 |
||
|
22
|
22
85840-81A10-R8H GUIDE,HEADRESTRAINTベ-ジュ; 2002-11-01~2005-02-01 |
85840-81A10-R8H |
US $11.63 |
||
|
22
|
22
85840-81A10-R8J
GUIDE,HEADRESTRAINT
グレ-; J20A,H25A; 2002-11-01~2004-09-01 |
85840-81A10-R8J |
— | ||
|
23
|
23
87501-65DC0-R9L
アームレストアッシ,リヤ,ライト(グレー)
グレ-; 2002-11-01~2005-02-01 |
87501-65DC0-R9L |
— | ||
|
23
|
23
87501-65DC0-R9N
アームレストアッシ,リヤ,ライト(ベージュ)
ベ-ジュ; 2002-11-01~2005-02-01 |
87501-65DC0-R9N |
— | ||
|
24
|
24
09409-10302-T01 CLIP(GRAY)グレ-; 2002-11-01~2005-02-01 |
09409-10302-T01 |
from US $0.81 |
||
|
25
|
25
87429-65DA0-R8H
GUIDE,STOPPER BAND
ベ-ジュ; 2002-11-01~2005-02-01 |
87429-65DA0-R8H |
— | ||
|
25
|
25
87429-65DA0-R8J
GUIDE,STOPPER BAND
グレ-; 2002-11-01~2005-02-01 |
87429-65DA0-R8J |
— | ||
|
26
|
26
03242-05103-000
Screw
2002-11-01~2005-02-01 |
03242-05103-000 |
— | ||
| replacements | |||||
|
26
|
26
03242-0510B-000 SCREW2002-11-01~2005-02-01 |
03242-0510B-000 |
US $0.76 |
||
|
26
|
26
03241-0510A-000 SCREW2002-11-01~2005-02-01 |
03241-0510A-000 |
from US $0.80 |
||
|
27
|
27
87552-65DC0-R8H
カバー,リヤバックアーム,ライト(ベージュ)
ベージュ; 2002-11-01~2005-02-01 |
87552-65DC0-R8H |
— | ||
|
27
|
27
87552-65DC0-R8J
COVER,RR BACK ARM R
グレー; 2002-11-01~2005-02-01 |
87552-65DC0-R8J |
— | ||
|
28
|
28
87571-65DC0-000
SHAFT,ARMREST
2002-11-01~2005-02-01 |
87571-65DC0-000 |
— | ||
|
29
|
29
87572-65DC0-000
SHAFT,ARMREST LOCK
2002-11-01~2005-02-01 |
87572-65DC0-000 |
— | ||
|
30
|
30
09409-07329-000 CLIP2002-11-01~2005-02-01 |
09409-07329-000 |
from US $1.48 |
||
|
31
|
31
86401-55G70-R9L
ヘッドレストレイントアッシ(グレー)
グレ-; 2002-11-01~2005-02-01 |
86401-55G70-R9L |
— | ||
| replacement | |||||
|
31
|
31
86401-55G71-R9L
HEADRESTRAINT ASSY
グレ-; 2002-11-01~2005-02-01 |
86401-55G71-R9L |
— | ||
|
31
|
31
86401-55G70-R9N
ヘッドレストレイントアッシ(ベージュ)
ベ-ジュ; 2002-11-01~2005-02-01 |
86401-55G70-R9N |
— | ||
| replacement | |||||
|
31
|
31
86401-55G71-R9N
HEADRESTRAINT ASSY
ベ-ジュ; 2002-11-01~2005-02-01 |
86401-55G71-R9N |
— | ||
|
32
|
32
87102-50JA1-BZE
Cushion assy,rr l
グレー; 2002-11-01~2005-02-01 |
87102-50JA1-BZE |
— | ||
|
32
|
32
87102-50JA1-KK7
Cushion assy,rr l(beige)
ベージュ; 2002-11-01~2005-02-01 |
87102-50JA1-KK7 |
— | ||
|
33
|
33
87151-65DL0-000
LEG,RR CUSH
2002-11-01~2005-02-01 |
87151-65DL0-000 |
— | ||
|
34
|
34
87259-65DL0-000
PIN,REAR CUSH
2002-11-01~2005-02-01 |
87259-65DL0-000 |
— | ||
| replacement | |||||
|
34
|
34
87259-65DL1-000
PIN,REAR CUSH
2002-11-01~2005-02-01 |
87259-65DL1-000 |
— | ||
|
35
|
35
09148-08002-000 NUT2002-11-01~2005-02-01 |
09148-08002-000 |
US $11 |
||
|
36
|
36
87159-65DA0-000 CUSHION,RR CUSH2002-11-01~2005-02-01 |
87159-65DA0-000 |
from US $2.18 |
||
|
37
|
37
03541-05163-000
Screw
2002-11-01~2005-02-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
37
|
37
03541-0516A-000 SCREW2002-11-01~2005-02-01 |
03541-0516A-000 |
from US $0.76 |
||
|
38
|
38
87420-65DA0-000 BAND,RR STOPPER2002-11-01~2005-02-01 |
87420-65DA0-000 |
US $18.77 |
||
|
39
|
39
87423-65DA0-000 PIN,REAR STOPPER BAND2002-11-01~2005-02-01 |
87423-65DA0-000 |
US $1.60 |
||
|
40
|
40
87460-65DA0-000 LOCK,RR CUSH2002-11-01~2004-05-01 |
87460-65DA0-000 |
US $29.62 |
||
|
40
|
40
87460-81A00-000 LOCK,RR CUSH2004-06-01~2005-02-01 |
87460-81A00-000 |
US $27.42 |
||
|
41
|
41
03242-05123-000
Screw, inner cover
2002-11-01~2005-02-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
41
|
41
03241-0512A-000 SCREW2002-11-01~2005-02-01 |
03241-0512A-000 |
from US $0.68 |
||
|
42
|
42
87302-50JB0-BZE
バックアッシ,リヤ,レフト(ベージュ)
グレー; 2002-11-01~2005-02-01 |
87302-50JB0-BZE |
— | ||
|
42
|
42
87302-50JB0-KK7
バックアッシ,リヤ,レフト(ベージュ)
ベージュ; 2002-11-01~2005-02-01 |
87302-50JB0-KK7 |
— | ||
|
43
|
43
87710-65D31-000
RECLINING ASSY,RR,L
2002-11-01~2005-02-01 |
87710-65D31-000 |
— | ||
|
44
|
44
01550-10203-000
Bolt
2002-11-01~2005-02-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
44
|
44
01550-1020A-000 BoltBolt, bal sprocket 2002-11-01~2005-02-01 |
01550-1020A-000 |
from US $0.96 |
||
|
45
|
45
87721-65DL0-R8J
COVER,RCLNG OUTSIDE,L
グレ-; 2002-11-01~2005-02-01 |
87721-65DL0-R8J |
— | ||
|
45
|
45
87721-65DL0-R8H
COVER,RCLNG OUTSIDE,L
ベ-ジュ; 2002-11-01~2005-02-01 |
87721-65DL0-R8H |
— | ||
|
46
|
46
87722-65DL0-R8H
COVER,RR RECL INSIDE,L
ベ-ジュ; 2002-11-01~2005-02-01 |
87722-65DL0-R8H |
— | ||
|
46
|
46
87722-65DL0-R8J
COVER,RR RECL INSIDE,L
グレ-; 2002-11-01~2005-02-01 |
87722-65DL0-R8J |
— | ||
|
47
|
47
03242-05103-000
Screw
2002-11-01~2005-02-01 |
03242-05103-000 |
— | ||
| replacements | |||||
|
47
|
47
03242-0510B-000 SCREW2002-11-01~2005-02-01 |
03242-0510B-000 |
US $0.76 |
||
|
47
|
47
03241-0510A-000 SCREW2002-11-01~2005-02-01 |
03241-0510A-000 |
from US $0.80 |
||
|
48
|
48
87715-65DL0-000
ROD,RR RCLNG,L
2002-11-01~2005-02-01 |
87715-65DL0-000 |
— | ||
|
49
|
49
09403-04306-000 CLAMPConnector, choke rod 2002-11-01~2005-02-01 |
09403-04306-000 |
US $20.20 |
||
|
50
|
50
87319-80G00-000 SILENCER,RR RECLINING ROD2002-11-01~2005-02-01 |
87319-80G00-000 |
from US $1.64 |
||
|
51
|
51
87211-74G00-R8H
Knob,3rd rclng
ベ-ジュ; 2002-11-01~2005-02-01 |
87211-74G00-R8H |
— | ||
| replacement | |||||
|
51
|
51
87211-74G10-R8H KNOB,RR BACKベ-ジュ; 2002-11-01~2005-02-01 |
87211-74G10-R8H |
US $5.76 |
||
|
51
|
51
87211-74G00-R8J
Knob,3rd rclng(gray)
グレ-; 2002-11-01~2005-02-01 |
87211-74G00-R8J |
— | ||
| replacement | |||||
|
51
|
51
87211-74G10-R8J KNOB,RR BACKグレ-; 2002-11-01~2005-02-01 |
87211-74G10-R8J |
from US $2.84 |
||
|
52
|
52
85341-81A00-R8H GUIDE,HEADRESTRAINTベ-ジュ; 2002-11-01~2005-02-01 |
85341-81A00-R8H |
US $6.04 |
||
|
52
|
52
85341-81A00-R8J GUIDE,HEADRESTRAINTグレ-; J20A,H25A; 2002-11-01~2004-09-01 |
85341-81A00-R8J |
US $6.04 |
||
|
53
|
53
85840-81A10-R8H GUIDE,HEADRESTRAINTベ-ジュ; 2002-11-01~2005-02-01 |
85840-81A10-R8H |
US $11.63 |
||
|
53
|
53
85840-81A10-R8J
GUIDE,HEADRESTRAINT
グレ-; J20A,H25A; 2002-11-01~2004-09-01 |
85840-81A10-R8J |
— | ||
|
54
|
54
09409-10302-R8H CLIP(BEIGE)ベ-ジュ; 2002-11-01~2005-02-01 |
09409-10302-R8H |
US $17.30 |
||
|
54
|
54
09409-10302-R8J CLIP(GRAY)グレ-; 2002-11-01~2005-02-01 |
09409-10302-R8J |
US $12.90 |
||
|
55
|
55
87429-65DA0-R8H
GUIDE,STOPPER BAND
ベ-ジュ; 2002-11-01~2005-02-01 |
87429-65DA0-R8H |
— | ||
|
55
|
55
87429-65DA0-R8J
GUIDE,STOPPER BAND
グレ-; 2002-11-01~2005-02-01 |
87429-65DA0-R8J |
— | ||
|
56
|
56
03242-05103-000
Screw
2002-11-01~2005-02-01 |
03242-05103-000 |
— | ||
| replacements | |||||
|
56
|
56
03242-0510B-000 SCREW2002-11-01~2005-02-01 |
03242-0510B-000 |
US $0.76 |
||
|
56
|
56
03241-0510A-000 SCREW2002-11-01~2005-02-01 |
03241-0510A-000 |
from US $0.80 |
||
|
57
|
57
87428-65DA0-000
ストライカ,トノカバー
2002-11-01~2005-02-01 |
87428-65DA0-000 |
— | ||
|
58
|
58
03242-05103-000
Screw
2002-11-01~2005-02-01 |
03242-05103-000 |
— | ||
| replacements | |||||
|
58
|
58
03242-0510B-000 SCREW2002-11-01~2005-02-01 |
03242-0510B-000 |
US $0.76 |
||
|
58
|
58
03241-0510A-000 SCREW2002-11-01~2005-02-01 |
03241-0510A-000 |
from US $0.80 |
||
|
59
|
59
87222-65D10-R8H
COVER,RR RECL BKT,R
ベ-ジュ; 2002-11-01~2005-02-01 |
87222-65D10-R8H |
— | ||
|
59
|
59
87222-65D10-R8J
COVER,RR RECL BKT,R
グレ-; 2002-11-01~2005-02-01 |
87222-65D10-R8J |
— | ||
|
60
|
60
87722-65D10-R8H
COVER,RR RECL BKT,L
ベ-ジュ; 2002-11-01~2005-02-01 |
87722-65D10-R8H |
— | ||
|
60
|
60
87722-65D10-R8J
COVER,RR RECL BKT,L
グレ-; 2002-11-01~2005-02-01 |
87722-65D10-R8J |
— | ||
|
61
|
61
87285-65D11-R8H COVER,RR CUSH LEGベ-ジュ; 2002-11-01~2005-02-01 |
87285-65D11-R8H |
US $6.84 |
||
|
61
|
61
87285-65D11-R8J
COVER,RR CUSH LEG
グレ-; 2002-11-01~2005-02-01 |
87285-65D11-R8J |
— | ||
|
62
|
62
87950-65D10-000 HINGE,RR BACK CTR2002-11-01~2005-02-01 |
87950-65D10-000 |
US $32.20 |
||
|
63
|
63
01551-10203-000
Bolt, 3rd striker
2002-11-01~2005-02-01 |
01551-10203-000 |
— | ||
| replacement | |||||
|
63
|
63
01551-1020A-000 Bolt2002-11-01~2005-02-01 |
01551-1020A-000 |
US $17.30 |
||
|
64
|
64
87995-65D10-R8H
COVER,RR CENTER HINGE
ベ-ジュ; 2002-11-01~2005-02-01 |
87995-65D10-R8H |
— | ||
|
64
|
64
87995-65D10-R8J
COVER,RR CENTER HINGE
グレ-; 2002-11-01~2005-02-01 |
87995-65D10-R8J |
— | ||
|
65
|
65
09409-10302-R8H CLIP(BEIGE)ベ-ジュ; 2002-11-01~2005-02-01 |
09409-10302-R8H |
US $17.30 |
||
|
65
|
65
09409-10302-R8J CLIP(GRAY)グレ-; 2002-11-01~2005-02-01 |
09409-10302-R8J |
US $12.90 |
||
