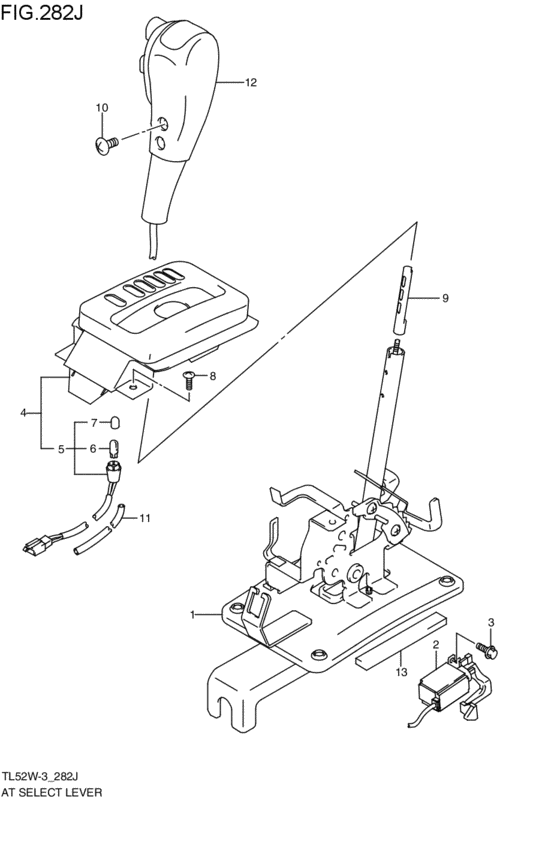

select lever (AT; 2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-50J92-000
レバーアッシ,セレクト
AT; 2002-11-01~2005-02-01 |
28110-50J92-000 |
— | ||
|
2
|
2
28610-54G10-000 SOLENOID,SHIFT LOCKAT; 2002-11-01~2005-02-01 |
28610-54G10-000 |
from US $52.63 |
||
|
3
|
3
09118-05006-000 BOLT(5X8)AT; 2002-11-01~2005-02-01 |
09118-05006-000 |
US $19.90 |
||
|
4
|
4
28150-50J70-000
INDICATOR ASSY,SELECT LEVER
AT; 2002-11-01~2005-02-01 |
28150-50J70-000 |
— | ||
|
5
|
5
28180-50J10-000 LAMP ASSY,SELECT LEVER ILLUMAT; 2002-11-01~2005-02-01 |
28180-50J10-000 |
from US $8.17 |
||
|
6
|
6
09471-12195-000 BULB(12V5W)AT; 2002-11-01~2005-02-01 |
09471-12195-000 |
from US $1.40 |
||
|
7
|
7
28182-50J10-000 FILTER,ILLUM LAMP BULBAT; 2002-11-01~2005-02-01 |
28182-50J10-000 |
US $2.95 |
||
|
8
|
8
02142-05103-000
Screw 5x10
AT; 2002-11-01~2005-02-01 |
02142-05103-000 |
— | ||
| replacement | |||||
|
8
|
8
02142-0510B-000 SCREWBolt AT; 2002-11-01~2005-02-01 |
02142-0510B-000 |
from US $0.72 |
||
|
9
|
9
28164-50J10-000 GUIDE,DETENT RELEASEAT; 2002-11-01~2005-02-01 |
28164-50J10-000 |
US $7.13 |
||
|
10
|
10
28177-50J10-000 SCREW,SELECT LEVER KNOBAT; 2002-11-01~2005-02-01 |
28177-50J10-000 |
US $0.88 |
||
|
11
|
11
28118-64B61-000 TUBE,SWITCH WIRE HARNESSAT; 2002-11-01~2005-02-01 |
28118-64B61-000 |
US $1.88 |
||
|
12
|
12
28160-50JN0-KN3
ノブアッシ,セレクトレバー
シルバー/ブラック/クローム; AT:H25A; 2002-11-01~2003-05-01 |
28160-50JN0-KN3 |
— | ||
|
13
|
13
28176-50J30-000 TAPE,SEALAT; 2002-11-01~2005-02-01 |
28176-50J30-000 |
from US $1.04 |
||
