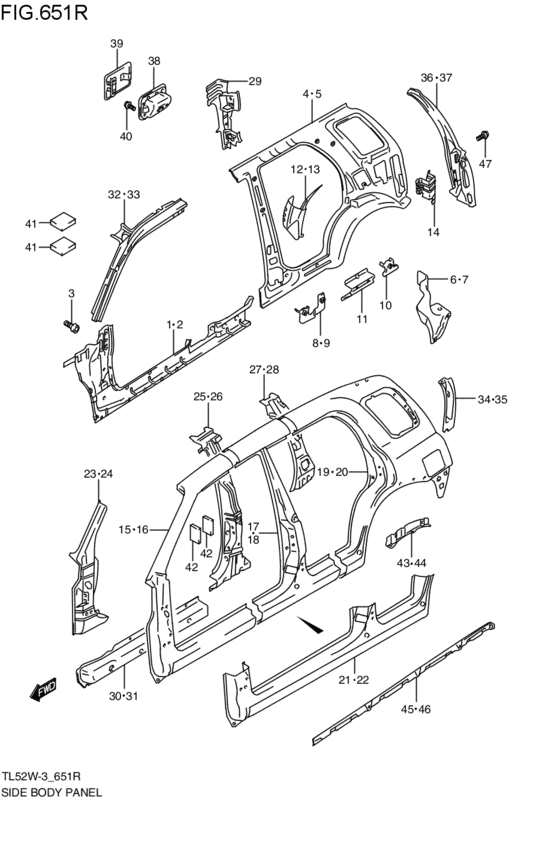

side body panel (ブンカツパネル; 2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61480-65D70-000 PANEL,FR PILLAR INNER LWR,R2002-11-01~2005-02-01 |
61480-65D70-000 |
US $215.28 |
||
|
2
|
2
61580-65D90-000
PANEL,FR PILLAR INNER LWR,L
2002-11-01~2005-02-01 |
61580-65D90-000 |
— | ||
|
3
|
3
09119-06090-000 Bolt2002-11-01~2005-02-01 |
09119-06090-000 |
US $11.40 |
||
|
4
|
4
63111-65D31-000 PANEL,SIDE BODY INNER,R2002-11-01~2005-02-01 |
63111-65D31-000 |
from US $277.61 |
||
|
5
|
5
63511-65D11-000 PANEL,SIDE BODY INNER,L2002-11-01~2005-02-01 |
63511-65D11-000 |
from US $305.17 |
||
|
6
|
6
63121-65D00-000 PANEL,RR WHEEL HSG OTR RR,R2002-11-01~2005-02-01 |
63121-65D00-000 |
from US $35.57 |
||
|
7
|
7
63521-65D00-000 PANEL,RR WHEEL HSG OTR RR,L2002-11-01~2005-02-01 |
63521-65D00-000 |
from US $38.41 |
||
|
8
|
8
63131-65D00-000 REINF,CTR PILLAR RETRACTOR,R2002-11-01~2005-02-01 |
63131-65D00-000 |
US $10.75 |
||
|
9
|
9
63531-65D00-000 REINFORCEMENT,CTR PLR RETR,L2002-11-01~2005-02-01 |
63531-65D00-000 |
US $10.75 |
||
|
10
|
10
63141-65D00-000 REINFORCEMENT,SEAT BELT RETR2002-11-01~2005-02-01 |
63141-65D00-000 |
US $5.48 |
||
|
11
|
11
63151-65D10-000 REINFORCEMENT,SIDE SILL RR2002-11-01~2005-02-01 |
63151-65D10-000 |
US $16.80 |
||
|
12
|
12
63210-65D00-000 EXT,RR WHL HSG OTR,R2002-11-01~2005-02-01 |
63210-65D00-000 |
from US $21.40 |
||
|
13
|
13
63610-65D00-000 EXT,RR WHL HSG OTR,L2002-11-01~2005-02-01 |
63610-65D00-000 |
from US $21.83 |
||
|
14
|
14
63551-65D01-000 BRACKET,JACK2002-11-01~2005-02-01 |
63551-65D01-000 |
US $42.69 |
||
|
15
|
15
64111-65DV0-P11
PANEL,A-PILLAR,R
2002-11-01~2005-02-01 |
64111-65DV0-P11 |
— | ||
|
16
|
16
64511-65DV0-P11
PANEL,A-PILLAR,L
2002-11-01~2005-02-01 |
64511-65DV0-P11 |
— | ||
|
17
|
17
64111-65D13-P21 PANEL,B-PILLAR,R2002-11-01~2005-02-01 |
64111-65D13-P21 |
from US $196.85 |
||
|
18
|
18
64511-65D13-P21 PANEL,B-PILLAR,L2002-11-01~2005-02-01 |
64511-65D13-P21 |
from US $153.23 |
||
|
19
|
19
64111-65DV0-P32 PANEL,QUARTER,R2002-11-01~2005-02-01 |
64111-65DV0-P32 |
from US $267.46 |
||
|
20
|
20
64511-65DV0-P32 PANEL,QUARTER,L2002-11-01~2005-02-01 |
64511-65DV0-P32 |
from US $325.98 |
||
|
21
|
21
64111-65D13-P41 PANEL,SIDE SILL,R2002-11-01~2005-02-01 |
64111-65D13-P41 |
from US $262.15 |
||
|
22
|
22
64511-65D13-P41 PANEL,SIDE SILL,L2002-11-01~2005-02-01 |
64511-65D13-P41 |
from US $258.44 |
||
|
23
|
23
64120-65D01-000 REINFORCEMENT,FR PILLAR,R2002-11-01~2005-02-01 |
64120-65D01-000 |
from US $82.40 |
||
|
24
|
24
64520-65D01-000 REINFORCEMENT,FR PILLAR,L2002-11-01~2005-02-01 |
64520-65D01-000 |
from US $82.40 |
||
|
25
|
25
64130-65D03-000 REINFORCEMENT,CTR PILLAR,R2002-11-01~2005-02-01 |
64130-65D03-000 |
from US $119.77 |
||
|
26
|
26
64530-65D03-000 REINFORCEMENT,CTR PILLAR,L2002-11-01~2005-02-01 |
64530-65D03-000 |
from US $188.39 |
||
|
27
|
27
64140-65D01-000 REINFORCEMENT,RR PILLAR,R2002-11-01~2005-02-01 |
64140-65D01-000 |
from US $70.25 |
||
|
28
|
28
64540-65D01-000 REINFORCEMENT,RR PILLAR,L2002-11-01~2005-02-01 |
64540-65D01-000 |
from US $70.25 |
||
|
29
|
29
64150-65D10-000 REINFORCEMENT,BACK PILLAR,R2002-11-01~2005-02-01 |
64150-65D10-000 |
US $117.39 |
||
|
30
|
30
64161-65D11-000 REINFORCEMENT,SIDE SILL,R2002-11-01~2005-02-01 |
64161-65D11-000 |
from US $44.30 |
||
|
31
|
31
64561-65D11-000 REINFORCEMENT,SIDE SILL,L2002-11-01~2005-02-01 |
64561-65D11-000 |
from US $69.12 |
||
|
32
|
32
64210-65D02-000
パネル,フロントピラーインナ,ライト
H25A; 2002-11-01~2003-05-01 |
64210-65D02-000 |
— | ||
| replacements | |||||
|
32
|
32
64210-65D03-000 PANEL,FR PILLAR INNER,RH25A; 2002-11-01~2003-05-01 |
64210-65D03-000 |
US $143.89 |
||
|
32
|
32
36930-82010-000 COVER,HARNESSCover, roof wire H25A; 2002-11-01~2003-05-01 |
36930-82010-000 |
from US $1.51 |
||
|
33
|
33
64610-65D02-000
パネル,フロントピラーインナ,レフト
H25A; 2002-11-01~2003-05-01 |
64610-65D02-000 |
— | ||
| replacements | |||||
|
33
|
33
64610-65D03-000 PANEL,FR PILLAR INNER,LH25A; 2002-11-01~2003-05-01 |
64610-65D03-000 |
US $143.89 |
||
|
33
|
33
36930-82010-000 COVER,HARNESSCover, roof wire H25A; 2002-11-01~2003-05-01 |
36930-82010-000 |
from US $1.51 |
||
|
34
|
34
64221-65D01-000 PANEL,AIR OUTLET,R2002-11-01~2005-02-01 |
64221-65D01-000 |
from US $7.92 |
||
|
35
|
35
64621-65D01-000 PANEL,AIR OUTLET,L2002-11-01~2005-02-01 |
64621-65D01-000 |
from US $7.92 |
||
|
36
|
36
64231-65D12-000 PANEL,BACK PILLAR OUTER,R2002-11-01~2005-02-01 |
64231-65D12-000 |
from US $81.79 |
||
|
37
|
37
64630-52D01-000
PANEL COMPBACK PILLAR OTRL
2002-11-01~2005-02-01 |
64630-52D01-000 |
— | ||
| replacement | |||||
|
37
|
37
64630-52D02-000 PANEL,BACK PILLAR OUTER,L2002-11-01~2005-02-01 |
64630-52D02-000 |
from US $106.54 |
||
|
38
|
38
64241-65D00-000 BOX,FUEL INLET2002-11-01~2005-02-01 |
64241-65D00-000 |
from US $23.20 |
||
|
39
|
39
65950-65D04-000 LID,FUEL INLET2002-11-01~2005-02-01 |
65950-65D04-000 |
from US $53.48 |
||
|
40
|
40
02162-05103-000
Screw
2002-11-01~2005-02-01 |
02162-05103-000 |
— | ||
| replacement | |||||
|
40
|
40
02162-0510A-000 SCREW2002-11-01~2005-02-01 |
02162-0510A-000 |
from US $2.82 |
||
|
41
|
41
83921-82C00-000 PAD2002-11-01~2005-02-01 |
83921-82C00-000 |
from US $2.34 |
||
|
42
|
42
83921-82C00-000 PAD2002-11-01~2005-02-01 |
83921-82C00-000 |
from US $2.34 |
||
|
43
|
43
64251-65DA1-000 HOLDER,RR QTR SPLASH,R2002-11-01~2005-02-01 |
64251-65DA1-000 |
from US $9.29 |
||
|
44
|
44
64651-65DA1-000 HOLDER,RR QTR SPLASH,L2002-11-01~2005-02-01 |
64651-65DA1-000 |
from US $9.07 |
||
|
45
|
45
64252-65DA1-000 HOLDER,SIDE SILL SPLASH,R2002-11-01~2005-02-01 |
64252-65DA1-000 |
from US $28.64 |
||
|
46
|
46
64652-65DA1-000 HOLDER,SIDE SILL SPLASH,L2002-11-01~2005-02-01 |
64652-65DA1-000 |
from US $32.06 |
||
|
47
|
47
09122-76003-000 SCREW(6X16)Bolt (6x16) 2002-11-01~2005-02-01 |
09122-76003-000 |
from US $0.74 |
||
