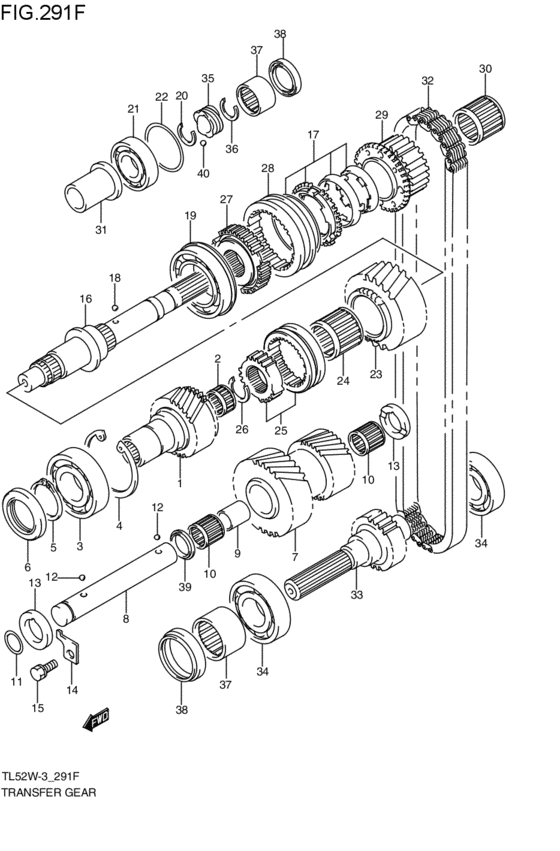

transfer gear (2002-11-01~2005-02-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2003
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
29110-60A03-000 GEAR,T/F INPUT2002-11-01~2005-02-01 |
29110-60A03-000 |
from US $188.10 |
||
|
2
|
2
09263-24022-000 BEARING(24X30X17)2002-11-01~2005-02-01 |
09263-24022-000 |
from US $12.56 |
||
|
3
|
3
09262-35051-000 BEARING(35X72X17)2002-11-01~2005-02-01 |
09262-35051-000 |
from US $26.91 |
||
|
4
|
4
09381-72001-000 RING,SNAP2002-11-01~2005-02-01 |
09381-72001-000 |
from US $14.02 |
||
|
5
|
5
08331-31356-000
Circlip 35mm
2002-11-01~2005-02-01 |
08331-31356-000 |
— | ||
| replacement | |||||
|
5
|
5
08331-31359-000 CIRCLIP2002-11-01~2005-02-01 |
08331-31359-000 |
from US $1.62 |
||
|
6
|
6
09282-35002-000 SEAL,OIL(35X55X9)2002-11-01~2005-02-01 |
09282-35002-000 |
from US $10.73 |
||
|
7
|
7
29121-78E00-000 GEAR,T/F COUNTER2002-11-01~2005-02-01 |
29121-78E00-000 |
from US $135.41 |
||
|
8
|
8
29131-60A02-000 SHAFT,T/F COUNTER2002-11-01~2005-02-01 |
29131-60A02-000 |
from US $23.69 |
||
|
9
|
9
09180-26004-000 SPACER(26X31X33.7)2002-11-01~2005-02-01 |
09180-26004-000 |
from US $3.89 |
||
|
10
|
10
09263-25051-000 BEARING(25.4X33.3X31.7)2002-11-01~2005-02-01 |
09263-25051-000 |
from US $25.60 |
||
|
11
|
11
09280-21008-000 O RING(D:2.5,ID:21)O ring (d:2.5,id:21) 2002-11-01~2005-02-01 |
09280-21008-000 |
from US $1.51 |
||
|
12
|
12
06111-06003-000 BALL2002-11-01~2005-02-01 |
06111-06003-000 |
from US $0.76 |
||
|
13
|
13
09166-25012-000 WASHER2002-11-01~2005-02-01 |
09166-25012-000 |
from US $10.24 |
||
|
14
|
14
29136-60A01-000 PLATE,T/F COUNTER SHAFT2002-11-01~2005-02-01 |
29136-60A01-000 |
from US $0.72 |
||
|
15
|
15
01570-08163-000
Bolt
2002-11-01~2005-02-01 |
01570-08163-000 |
— | ||
| replacement | |||||
|
15
|
15
01570-0816A-000 Bolt2002-11-01~2005-02-01 |
01570-0816A-000 |
from US $1.12 |
||
|
16
|
16
29141-60A22-000 SHAFT,T/F OUTPUT RR2002-11-01~2005-02-01 |
29141-60A22-000 |
from US $92.05 |
||
|
17
|
17
24430-82D00-000 RING ASSY,T/F DRIVE SYNC2002-11-01~2005-02-01 |
24430-82D00-000 |
from US $96.44 |
||
|
18
|
18
06111-06003-000 BALL2002-11-01~2005-02-01 |
06111-06003-000 |
from US $0.76 |
||
|
19
|
19
08173-62100-000 BEARING2002-11-01~2005-02-01 |
08173-62100-000 |
from US $53.26 |
||
|
20
|
20
09380-30007-000 RING,SNAP2002-11-01~2005-02-01 |
09380-30007-000 |
from US $1.67 |
||
|
21
|
21
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r 2002-11-01~2005-02-01 |
09262-30077-000 |
from US $39.20 |
||
|
22
|
22
09181-62003-000 SHIM(62X71X0.1)2002-11-01~2005-02-01 |
09181-62003-000 |
from US $1.01 |
||
|
22
|
22
09181-62004-000 SHIM(62X71X0.3)2002-11-01~2005-02-01 |
09181-62004-000 |
from US $1.10 |
||
|
22
|
22
09181-62008-000 SHIM(62X71X0.2)2002-11-01~2005-02-01 |
09181-62008-000 |
from US $1.76 |
||
|
23
|
23
29211-78E00-000 GEAR,T/F OUTPUT LOW2002-11-01~2005-02-01 |
29211-78E00-000 |
from US $103.59 |
||
|
24
|
24
09263-38006-000 BEARING(38.1X47.6X44.4)2002-11-01~2005-02-01 |
09263-38006-000 |
from US $49.25 |
||
|
25
|
25
29230-60A01-000 HUB ASSY,REDUCTION2002-11-01~2005-02-01 |
29230-60A01-000 |
from US $69.86 |
||
|
26
|
26
09380-34003-000 CIRCLIP2002-11-01~2005-02-01 |
09380-34003-000 |
from US $0.97 |
||
|
27
|
27
29231-82D00-000 HUB,FR DRIVE CLUTCH2002-11-01~2005-02-01 |
29231-82D00-000 |
from US $35.82 |
||
|
28
|
28
29241-82D00-000 SLEEVE,FRONT DRIVE CLUTCH2002-11-01~2005-02-01 |
29241-82D00-000 |
from US $61.74 |
||
|
29
|
29
29221-85F52-000 SPROCKET,T/F DRIVE2002-11-01~2005-02-01 |
29221-85F52-000 |
from US $78.80 |
||
|
30
|
30
09263-38007-000 BEARING(38.1X47.43X51.1)2002-11-01~2005-02-01 |
09263-38007-000 |
from US $25.65 |
||
|
31
|
31
29222-60A10-000 BUSH,T/F SPROCKET2002-11-01~2005-02-01 |
29222-60A10-000 |
from US $24.19 |
||
|
32
|
32
29225-78E00-000 CHAIN,T/F DRIVE2002-11-01~2005-02-01 |
29225-78E00-000 |
from US $412.81 |
||
|
33
|
33
29151-78E10-000 SHAFT,T/F OUTPUT FR2002-11-01~2005-02-01 |
29151-78E10-000 |
from US $107.69 |
||
|
34
|
34
09262-30077-000 BEARING(30X72X19)Bearing, sub t/m output, r 2002-11-01~2005-02-01 |
09262-30077-000 |
from US $39.20 |
||
|
35
|
35
29411-85F10-000 GEAR,SPDOM DRIVE2002-11-01~2005-02-01 |
29411-85F10-000 |
from US $7.81 |
||
|
36
|
36
09380-27002-000 CIRCLIP2002-11-01~2005-02-01 |
09380-27002-000 |
from US $2.07 |
||
|
37
|
37
09263-40006-000 BEARING(40X47X30)2002-11-01~2005-02-01 |
09263-40006-000 |
from US $38.81 |
||
|
38
|
38
09283-40021-000 SEAL,OIL(40X54X10)Oil seal, final drive,fr 2002-11-01~2005-02-01 |
09283-40021-000 |
from US $12.47 |
||
|
39
|
39
29133-60A00-000 RING,T/F COUNTER GEAR FRICTION2002-11-01~2005-02-01 |
29133-60A00-000 |
from US $8.12 |
||
|
40
|
40
06111-06003-000 BALL2002-11-01~2005-02-01 |
06111-06003-000 |
from US $0.76 |
||
