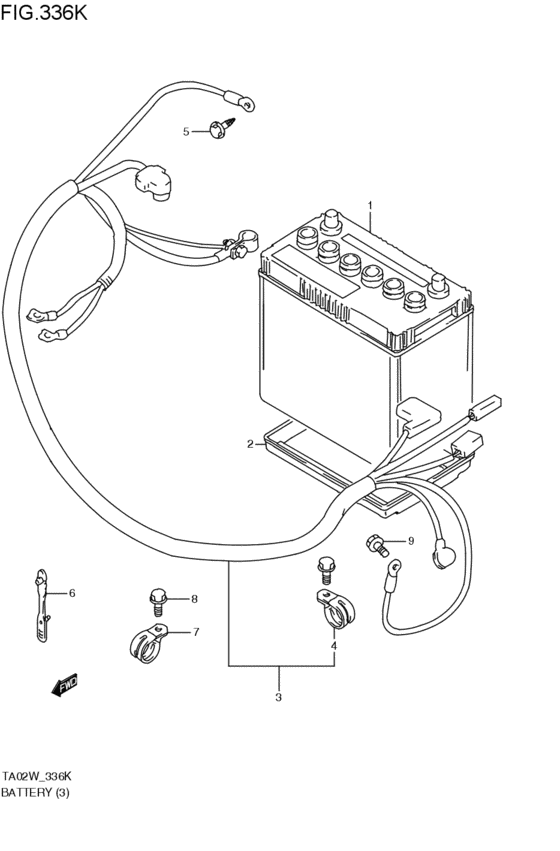

battery (H25A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-77E20-000
バッテリ,55D23LーMF,12V48AH/5HR,FB
FB; H25A; 1997-11-01~2000-03-01 |
33610-77E20-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-77EV8-000
BATTERY ASSY,75D23L (Cannot be supplied)
FB; H25A; 1997-11-01~2000-03-01 |
33610-77EV8-000 |
— | ||
|
2
|
2
33660-60G00-000 TRAY,BATTERYH25A; 1997-11-01~2000-03-01 |
33660-60G00-000 |
US $32 |
||
|
3
|
3
33800-67D10-000
CABLE ASSY,BTRY
H25A; 1998-02-01~2000-03-01 |
33800-67D10-000 |
— | ||
|
4
|
4
36991-77E00-000 CLAMP,CABLEH25A; 1998-02-01~2000-03-01 |
36991-77E00-000 |
US $3.72 |
||
|
5
|
5
09115-06001-000
Bolt, lh
H25A; 1998-02-01~2000-03-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
5
|
5
09115-06005-000 BOLT(6X16)H25A; 1998-02-01~2000-03-01 |
09115-06005-000 |
US $1.28 |
||
|
6
|
6
09407-05406-000 CLAMP(L:118)H25A; 1998-02-01~2000-03-01 |
09407-05406-000 |
from US $1.06 |
||
|
7
|
7
36649-67D00-000 CLAMP,BTRY CABLEH25A; 1998-05-01~2000-03-01 |
36649-67D00-000 |
US $3.39 |
||
|
7
|
7
36649-70E00-000
CLAMP,MAIN HARNESS
H25A; 1998-02-01~1998-05-01 |
36649-70E00-000 |
— | ||
|
8
|
8
02162-06123-000
Bolt (6x12)
H25A; 1998-02-01~2000-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt H25A; 1998-02-01~2000-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket H25A; 1998-02-01~2000-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
01550-08123-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0812B-000 BoltPlug, drain H25A; 1998-02-01~2000-03-01 |
01550-0812B-000 |
from US $0.96 |
||
|
9
|
9
01550-0812A-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-0812A-000 |
from US $0.91 |
||
