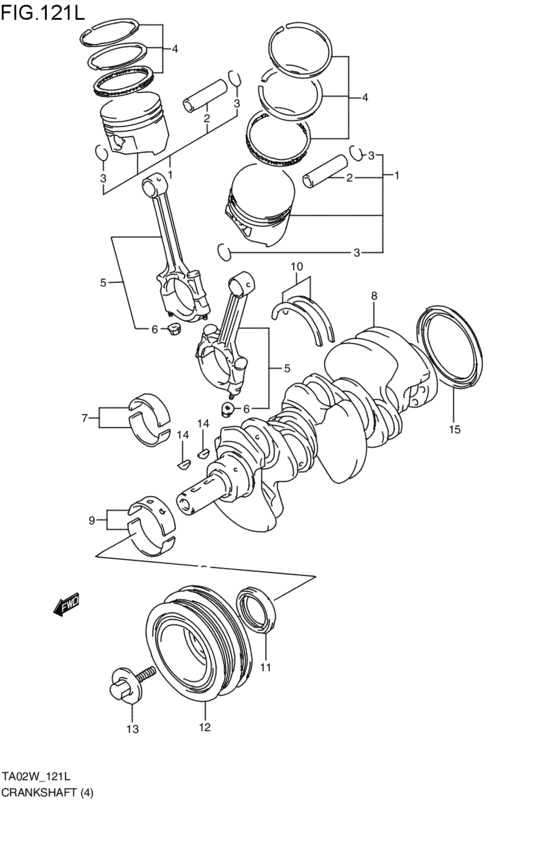

crankshaft (H25A; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-86830-0A0
ピストンセット,STD,マーク 1
マ-ク 1; H25A; 1998-02-01~2000-03-01 |
12100-86830-0A0 |
— | ||
| replacement | |||||
|
1
|
1
12100-86831-0A0 PISTON SET,STD MARK 1マ-ク 1; H25A; 1998-02-01~2000-03-01 |
12100-86831-0A0 |
US $192 |
||
|
1
|
1
12100-86830-0B0
ピストンセット,STD,マーク 2
マ-ク 2; H25A; 1998-02-01~2000-03-01 |
12100-86830-0B0 |
— | ||
| replacement | |||||
|
1
|
1
12100-86831-0B0 PISTON SET,STD MARK 2マ-ク 2; H25A; 1998-02-01~2000-03-01 |
12100-86831-0B0 |
US $192 |
||
|
2
|
2
12151-86FA0-000 PIN,PISTONH25A; 1998-02-01~2000-03-01 |
12151-86FA0-000 |
from US $10.06 |
||
|
3
|
3
09381-21002-000 RING,SNAPH25A; 1998-02-01~2000-03-01 |
09381-21002-000 |
from US $0.93 |
||
|
4
|
4
12140-86FA0-000 RING SET,PISTON STDH25A; 1998-02-01~2000-03-01 |
12140-86FA0-000 |
from US $68.90 |
||
|
5
|
5
12160-86FA1-000
Connrod assy
H25A; 1998-02-01~2000-03-01 |
12160-86FA1-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-86FB0-000 CONNROD ASSYH25A; 1998-02-01~2000-03-01 |
12160-86FB0-000 |
US $129.90 |
||
|
6
|
6
09159-09005-000 NUTH25A; 1998-02-01~2000-03-01 |
09159-09005-000 |
US $28.70 |
||
|
7
|
7
12100-85823-0A0
Bearing set, connecting rod (color: green)
H25A; 1998-02-01~2000-03-01 |
12100-85823-0A0 |
— | ||
| replacement | |||||
|
7
|
7
12100-85824-0A0 BEARING SET,CONNROD, GREENGreen H25A; 1998-02-01~2000-03-01 |
12100-85824-0A0 |
from US $21.65 |
||
|
7
|
7
12100-85823-025
ベアリングセット,コンロッド,カラー:レッド
H25A; 1998-02-01~2000-03-01 |
12100-85823-025 |
— | ||
| replacement | |||||
|
7
|
7
12100-85824-025 BEARING SET,CONNROD US:0.25Red H25A; 1998-02-01~2000-03-01 |
12100-85824-025 |
from US $19.32 |
||
|
8
|
8
12221-86FA0-000
クランクシャフト
H25A; 1998-02-01~2000-03-01 |
12221-86FA0-000 |
— | ||
| replacement | |||||
|
8
|
8
12221-86FA1-000 CRANKSHAFTH25A; 1998-02-01~2000-03-01 |
12221-86FA1-000 |
US $4,496 |
||
|
9
|
9
12300-86811-0DA
ベアリングセット,カラー:レッド/イエロー
カラ-:レツド/イエロ-; H25A; 1998-02-01~2000-03-01 |
12300-86811-0DA |
— | ||
| replacement | |||||
|
9
|
9
12300-86812-0DA BEARING SET,CRANKSHAFT USBearing set, crankshaft (red/yellow) カラ-:レツド/イエロ-; H25A; 1998-02-01~2000-03-01 |
12300-86812-0DA |
from US $23.74 |
||
|
9
|
9
12300-86811-0EA
ベアリングセット,カラー:レッド/ブルー
カラ-:レツド/ブル-; H25A; 1998-02-01~2000-03-01 |
12300-86811-0EA |
— | ||
| replacement | |||||
|
9
|
9
12300-86812-0EA BEARING SET,CRANKSHAFT USBearing set, crankshaft (red/blue) カラ-:レツド/ブル-; H25A; 1998-02-01~2000-03-01 |
12300-86812-0EA |
from US $22.07 |
||
|
9
|
9
12340-86FA1-0A0
Bearing set, Color: Green
カラー:グリーン; H25A; 1998-02-01~2000-03-01 |
12340-86FA1-0A0 |
— | ||
|
9
|
9
12340-86FA1-0B0
ベアリングセット,カラー:ブラック
カラー:ブラック; H25A; 1998-02-01~2000-03-01 |
12340-86FA1-0B0 |
— | ||
| replacement | |||||
|
9
|
9
12340-86FA2-0B0 BEARING SET,CRANKSHAFT STDカラー:ブラック; H25A; 1998-02-01~2000-03-01 |
12340-86FA2-0B0 |
from US $24.29 |
||
|
9
|
9
12340-86FA1-0C0
Bearing set, Color: None
カラー:ナシ; H25A; 1998-02-01~2000-03-01 |
12340-86FA1-0C0 |
— | ||
| replacement | |||||
|
9
|
9
12340-86FA2-0C0 BEARING SET,CRANKSHAFT STDカラー:ナシ; H25A; 1998-02-01~2000-03-01 |
12340-86FA2-0C0 |
from US $22.28 |
||
|
9
|
9
12340-86FA1-0D0
ベアリングセット,カラー:イエロー
カラー:イエロー; H25A; 1998-02-01~2000-03-01 |
12340-86FA1-0D0 |
— | ||
| replacement | |||||
|
9
|
9
12340-86FA2-0D0 BEARING SET,CRANKSHAFT STDBearing set, crankshaft (yellow) カラー:イエロー; H25A; 1998-02-01~2000-03-01 |
12340-86FA2-0D0 |
from US $25.55 |
||
|
9
|
9
12340-86FA1-0E0
ベアリングセット,カラー:ブルー
カラー:ブルー; H25A; 1998-02-01~2000-03-01 |
12340-86FA1-0E0 |
— | ||
| replacement | |||||
|
9
|
9
12340-86FA2-0E0 BEARING SET,CRANKSHAFT STDBlue カラー:ブルー; H25A; 1998-02-01~2000-03-01 |
12340-86FA2-0E0 |
from US $25.55 |
||
|
9
|
9
12300-86811-0AA
Bearing set, Color: Red / Green
カラ-:レツド/グリ-ン; H25A; 1998-02-01~2000-03-01 |
12300-86811-0AA |
— | ||
|
9
|
9
12300-86811-0BA
ベアリングセット,カラー:レッド/ブラック
カラ-:レツド/ブラツク; H25A; 1998-02-01~2000-03-01 |
12300-86811-0BA |
— | ||
| replacement | |||||
|
9
|
9
12300-86812-0BA BEARING SET,CRANKSHAFT USBearing set, crankshaft (red/black) カラ-:レツド/ブラツク; H25A; 1998-02-01~2000-03-01 |
12300-86812-0BA |
from US $23.74 |
||
|
9
|
9
12300-86811-0CA
ベアリングセット,カラー:レッド
カラ-:レツド; H25A; 1998-02-01~2000-03-01 |
12300-86811-0CA |
— | ||
| replacement | |||||
|
9
|
9
12300-86812-0CA BEARING SET,CRANKSHAFT USRed カラ-:レツド; H25A; 1998-02-01~2000-03-01 |
12300-86812-0CA |
from US $19.91 |
||
|
10
|
10
12300-85830-000 BEARING SET,CRANK THRUSTH25A; 1998-02-01~2000-03-01 |
12300-85830-000 |
from US $16 |
||
|
11
|
11
09283-45011-000
オイルシール,45X63X7.5
H25A; 1998-02-01~2000-03-01 |
09283-45011-000 |
— | ||
| replacement | |||||
|
11
|
11
09283-45012-000 SEAL,OIL(45X63X7.5)H25A; 1998-02-01~2000-03-01 |
09283-45012-000 |
from US $17.21 |
||
|
12
|
12
12610-85FA0-000
プーリ,クランクシャフト
H25A; 1998-02-01~2000-03-01 |
12610-85FA0-000 |
— | ||
| replacement | |||||
|
12
|
12
12610-85FA1-000 PULLEY,CRANKSHAFTH25A; 1998-02-01~2000-03-01 |
12610-85FA1-000 |
from US $291.85 |
||
|
13
|
13
12615-85FA0-000 BOLT,CRANK PULLEYH25A; 1998-02-01~2000-03-01 |
12615-85FA0-000 |
from US $12.40 |
||
|
14
|
14
08341-31059-000 KEYKey H25A; 1998-02-01~2000-03-01 |
08341-31059-000 |
from US $1.49 |
||
|
15
|
15
09283-98002-000 SEAL,OIL(98X116X10)H25A; 1998-02-01~2000-03-01 |
09283-98002-000 |
from US $46.17 |
||
