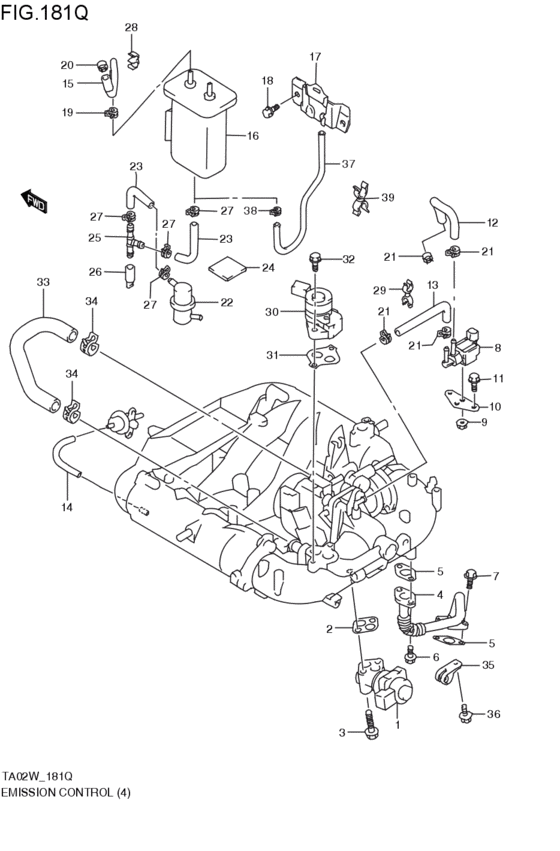

emission control (H25A; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18111-77E00-000
Valve, egr
H25A; 1998-02-01~2000-03-01 |
18111-77E00-000 |
— | ||
| replacement | |||||
|
1
|
1
18111-77E02-000 VALVE,EGRH25A; 1998-02-01~2000-03-01 |
18111-77E02-000 |
from US $282.71 |
||
|
2
|
2
18529-77E00-000
Gasket, egr valve
H25A; 1998-02-01~2000-03-01 |
18529-77E00-000 |
— | ||
| replacement | |||||
|
2
|
2
18529-77E01-000 GASKET,EGR VALVEH25A; 1998-02-01~2000-03-01 |
18529-77E01-000 |
from US $2.39 |
||
|
3
|
3
01550-08503-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0850B-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0850B-000 |
from US $1.22 |
||
|
4
|
4
18530-67D00-000 PIPE,EGRH25A; 1998-02-01~2000-03-01 |
18530-67D00-000 |
US $89.42 |
||
|
5
|
5
18533-77E00-000 GASKET,EGR PIPEH25A; 1998-02-01~2000-03-01 |
18533-77E00-000 |
US $2.28 |
||
|
6
|
6
01550-06203-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0620B-000 BOLTBolt, inspection cap H25A; 1998-02-01~2000-03-01 |
01550-0620B-000 |
from US $0.76 |
||
|
7
|
7
01550-06163-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0616B-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-0616B-000 |
from US $0.76 |
||
|
7
|
7
01550-0616A-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-0616A-000 |
from US $0.76 |
||
|
8
|
8
18117-65D00-000 VALVE,EVAP CANISTER PURGEH25A; 1998-02-01~2000-03-01 |
18117-65D00-000 |
US $161.60 |
||
|
9
|
9
08316-10063-000
Nut
H25A; 1998-02-01~2000-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1006B-000 NUTH25A; 1998-02-01~2000-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
10
|
10
18417-67D00-000
BRACKET,PURGE VALVE
H25A; 1998-02-01~2000-03-01 |
18417-67D00-000 |
— | ||
|
11
|
11
01550-06123-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp H25A; 1998-02-01~2000-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>200; H25A; 1998-02-01~2000-03-01 |
09355-54115-600 |
from US $7.20 |
||
|
13
|
13
09355-54115-600 HOSE(5.4X11.4X600)Hose, vacuum L:600>140; H25A; 1998-02-01~2000-03-01 |
09355-54115-600 |
from US $7.20 |
||
|
14
|
14
09355-35754-601
HOSE(3.5X7.5X601)
L:601>140; H25A; 1998-02-01~2000-03-01 |
09355-35754-601 |
— | ||
| replacement | |||||
|
14
|
14
09355-35006-601 Hose(3.5X7.5X601)L:601>140; H25A; 1998-02-01~2000-03-01 |
09355-35006-601 |
from US $5.78 |
||
|
15
|
15
09359-35751-600 HOSE(3.5X7.5X600)Hose, cstr purge L:600>260; H25A; 1998-02-01~2000-03-01 |
09359-35751-600 |
from US $11.20 |
||
|
16
|
16
18560-50G01-000
CANISTER
H25A; 1998-02-01~2000-03-01 |
18560-50G01-000 |
— | ||
|
17
|
17
18570-65D00-000
BRACKET,CANISTER
H25A; 1998-02-01~2000-03-01 |
18570-65D00-000 |
— | ||
| replacement | |||||
|
17
|
17
18570-65D40-000 BRACKET,CNSTRH25A; 1998-02-01~2000-03-01 |
18570-65D40-000 |
US $9.05 |
||
|
18
|
18
01550-08123-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0812B-000 BoltPlug, drain H25A; 1998-02-01~2000-03-01 |
01550-0812B-000 |
from US $0.96 |
||
|
18
|
18
01550-0812A-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-0812A-000 |
from US $0.91 |
||
|
19
|
19
09401-06405-000 CLIPH25A; 1998-02-01~2000-03-01 |
09401-06405-000 |
from US $1.12 |
||
|
20
|
20
09401-08411-000 CLIPH25A; 1998-02-01~2000-03-01 |
09401-08411-000 |
from US $0.91 |
||
|
21
|
21
09401-10409-000 CLIPH25A; 1998-02-01~2000-03-01 |
09401-10409-000 |
from US $1.12 |
||
|
22
|
22
18145-71C00-000
CHAMBER
H25A; 1998-02-01~1998-05-01 |
18145-71C00-000 |
— | ||
|
23
|
23
18582-78GA0-000 HOSE,AIR ASSIST VALVEH25A; 1998-02-01~1998-05-01 |
18582-78GA0-000 |
US $9.16 |
||
|
24
|
24
18579-65D00-000
TAPE,ADHERE
H25A; 1998-02-01~1998-05-01 |
18579-65D00-000 |
— | ||
|
25
|
25
09367-08004-000 3 WAY3 way (m8) H25A; 1998-02-01~1998-05-01 |
09367-08004-000 |
from US $2.24 |
||
|
26
|
26
18568-55F00-000 HOSE,DRAINH25A; 1998-02-01~1998-05-01 |
18568-55F00-000 |
US $2.36 |
||
|
27
|
27
09401-12404-000 CLIPClip H25A; 1998-02-01~1998-05-01 |
09401-12404-000 |
from US $1.52 |
||
|
28
|
28
09408-00033-000 CLAMPClamp H25A; 1998-02-01~2000-03-01 |
09408-00033-000 |
from US $1.60 |
||
|
29
|
29
09408-00138-000 CLAMPH25A; 1998-02-01~2000-03-01 |
09408-00138-000 |
US $27.20 |
||
|
30
|
30
18137-67D00-000 VALVE,IACH25A; 1998-02-01~2000-03-01 |
18137-67D00-000 |
US $397.76 |
||
|
31
|
31
18134-67D00-000 GASKET,IAC VALVEH25A; 1998-02-01~2000-03-01 |
18134-67D00-000 |
from US $2.24 |
||
|
32
|
32
01550-06253-000
Bolt (6x25)
H25A; 1998-02-01~2000-03-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
32
|
32
01550-0625B-000 BOLTBolt, head cover H25A; 1998-02-01~2000-03-01 |
01550-0625B-000 |
from US $0.91 |
||
|
32
|
32
01550-0625A-000 BOLTBolt H25A; 1998-02-01~2000-03-01 |
01550-0625A-000 |
from US $0.96 |
||
|
33
|
33
18141-67D00-000 HOSE,IAC VALVEH25A; 1998-02-01~2000-03-01 |
18141-67D00-000 |
US $26.40 |
||
|
34
|
34
09401-22404-000
Clip
H25A; 1998-02-01~2000-03-01 |
09401-22404-000 |
— | ||
| replacement | |||||
|
34
|
34
09401-22405-000 CLIPH25A; 1998-02-01~2000-03-01 |
09401-22405-000 |
US $20.20 |
||
|
35
|
35
18536-77EA0-000 CLAMP,EGR PIPEH25A; 1998-02-01~2000-03-01 |
18536-77EA0-000 |
US $3.61 |
||
|
36
|
36
01550-06123-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
36
|
36
01550-0612B-000 BOLTBolt, clamp H25A; 1998-02-01~2000-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
36
|
36
01550-0612A-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
37
|
37
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>460; H25A; 1998-05-01~2000-03-01 |
09355-70125-600 |
from US $5.51 |
||
| replacement | |||||
|
37
|
37
44421-12FR0-000 HOSEL:600>460; H25A; 1998-05-01~2000-03-01 |
44421-12FR0-000 |
from US $16.64 |
||
|
38
|
38
09401-12404-000 CLIPClip H25A; 1998-05-01~2000-03-01 |
09401-12404-000 |
from US $1.52 |
||
|
39
|
39
09408-00050-000 CLAMPH25A; 1998-05-01~2000-03-01 |
09408-00050-000 |
from US $1.28 |
||
