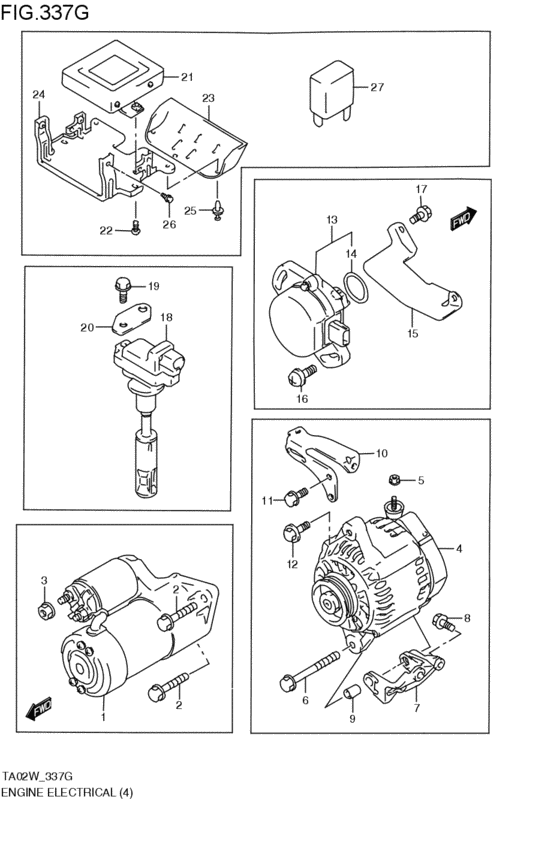

engine electrical (H25A; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-77E11-000 MOTOR ASSY,STARTINGH25A; 1998-02-01~2000-03-01 |
31100-77E11-000 |
US $661.76 |
||
|
2
|
2
01550-10503-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-10503-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-1050B-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-1050B-000 |
US $1.22 |
||
|
3
|
3
08316-10083-000
Nut
H25A; 1998-02-01~2000-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
3
|
3
08316-1008B-000 NUTH25A; 1998-02-01~2000-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
4
|
4
31400-77E12-000
ジェネレータアッシ
H25A; 1998-02-01~2000-03-01 |
31400-77E12-000 |
— | ||
| replacements | |||||
|
4
|
4
31400-77E11-REM
Alternator
H25A; 1998-02-01~2000-03-01 |
31400-77E11-REM |
— | ||
|
4
|
4
31400-52D10-REM
Generator assy
H25A; 1998-02-01~2000-03-01 |
31400-52D10-REM |
— | ||
|
4
|
4
31400-52D11-000 GENERATOR ASSYH25A; 1998-02-01~2000-03-01 |
31400-52D11-000 |
US $2,448 |
||
|
5
|
5
08316-10063-000
Nut
H25A; 1998-02-01~2000-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUTH25A; 1998-02-01~2000-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
01550-10853-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-10853-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-1085A-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-1085A-000 |
US $1.76 |
||
|
7
|
7
11551-77E00-000 BRACKET,GENERATORH25A; 1998-02-01~2000-03-01 |
11551-77E00-000 |
US $92.80 |
||
|
8
|
8
01550-08253-000
Bolt, rear
H25A; 1998-02-01~2000-03-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-0825B-000 |
from US $0.96 |
||
|
8
|
8
01550-0825A-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-0825A-000 |
from US $1.06 |
||
|
9
|
9
11555-60G00-000
Bush, generator
H25A; 1998-02-01~2000-03-01 |
11555-60G00-000 |
— | ||
| replacement | |||||
|
9
|
9
11555-60G01-000 BUSHH25A; 1998-02-01~2000-03-01 |
11555-60G01-000 |
US $3.68 |
||
|
10
|
10
11560-67D00-000
アーム,ジェネレータアジャスティング
H25A; 1998-02-01~2000-03-01 |
11560-67D00-000 |
— | ||
| replacement | |||||
|
10
|
10
11560-52D00-000 ARM,GENERATOR ADJUSTH25A; 1998-02-01~2000-03-01 |
11560-52D00-000 |
US $25.09 |
||
|
11
|
11
01550-10203-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1020A-000 BOLTBolt, bal sprocket H25A; 1998-02-01~2000-03-01 |
01550-1020A-000 |
from US $0.96 |
||
|
12
|
12
09118-08107-000 BOLT(8X25)H25A; 1998-02-01~2000-03-01 |
09118-08107-000 |
US $1.12 |
||
|
13
|
13
33100-77E10-000 SENSOR ASSY,CRANK ANGLEH25A; 1998-02-01~2000-03-01 |
33100-77E10-000 |
US $1,223.60 |
||
|
14
|
14
33278-77E10-000 O-RINGH25A; 1998-02-01~2000-03-01 |
33278-77E10-000 |
US $3.04 |
||
|
15
|
15
33328-77E00-000
カバー,クランクアングルセンサ
H25A; 1998-02-01~2000-03-01 |
33328-77E00-000 |
— | ||
| replacement | |||||
|
15
|
15
33328-77E01-000 COVER,CA SENSORH25A; 1998-02-01~2000-03-01 |
33328-77E01-000 |
US $5.74 |
||
|
16
|
16
09138-08003-000 SCREW(8X30)H25A; 1998-02-01~2000-03-01 |
09138-08003-000 |
from US $1.49 |
||
|
17
|
17
01550-06123-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0612B-000 BOLTBolt, clamp H25A; 1998-02-01~2000-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
17
|
17
01550-0612A-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
18
|
18
33410-77E21-000
コイルアッシ,イグニツシヨン
H25A; 1998-02-01~2000-03-01 |
33410-77E21-000 |
— | ||
| replacement | |||||
|
18
|
18
33410-77E22-000 COIL ASSY,IGNITIONH25A; 1998-02-01~2000-03-01 |
33410-77E22-000 |
US $348.80 |
||
|
19
|
19
01580-05203-000
ボルト
H25A; 1998-02-01~2000-03-01 |
01580-05203-000 |
— | ||
| replacement | |||||
|
19
|
19
01580-0520B-000 BOLTH25A; 1998-02-01~2000-03-01 |
01580-0520B-000 |
US $15.50 |
||
|
20
|
20
36995-77E90-000 BRACKET,ENG HARNH25A; 1998-02-01~2000-03-01 |
36995-77E90-000 |
US $2.83 |
||
|
21
|
21
33920-67D12-000
コントローラアッシ,インジェクション
H25A; 1998-02-01~2000-03-01 |
33920-67D12-000 |
— | ||
| replacement | |||||
|
21
|
21
33920-67D13-000
CONTROLLER ASSY,EPI
H25A; 1998-02-01~2000-03-01 |
33920-67D13-000 |
— | ||
|
22
|
22
02162-06103-000
Bolt
H25A; 1998-02-01~2000-03-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
22
|
22
02162-0610A-000 SCREWH25A; 1998-02-01~2000-03-01 |
02162-0610A-000 |
from US $0.64 |
||
|
23
|
23
33924-65D00-000 COVER,EPI CONTH25A; 1998-02-01~2000-03-01 |
33924-65D00-000 |
US $12.59 |
||
|
24
|
24
33924-65D00-000 COVER,EPI CONTH25A; 1998-02-01~2000-03-01 |
33924-65D00-000 |
US $12.59 |
||
|
25
|
25
09409-07332-000 CLIPH25A; 1998-02-01~2000-03-01 |
09409-07332-000 |
from US $1.28 |
||
|
26
|
26
02162-06103-000
Bolt
H25A; 1998-02-01~2000-03-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
26
|
26
02162-0610A-000 SCREWH25A; 1998-02-01~2000-03-01 |
02162-0610A-000 |
from US $0.64 |
||
|
27
|
27
38860-83E70-000
リレーアッシ
H25A; 1998-02-01~2000-03-01 |
38860-83E70-000 |
— | ||
| replacement | |||||
|
27
|
27
38860-76F01-000 RELAY ASSYRelay, starting motor H25A; 1998-02-01~2000-03-01 |
38860-76F01-000 |
from US $28.80 |
||
