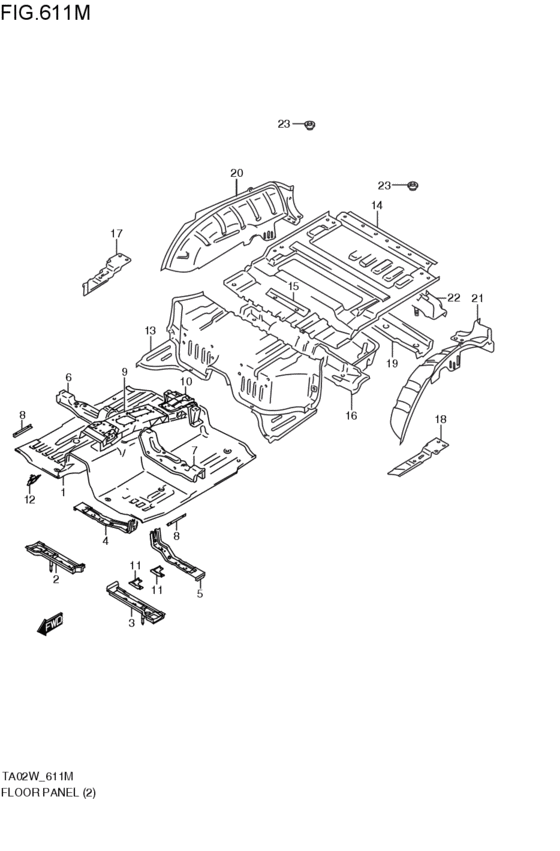

floor panel (5DR; 1997-11-01~) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61411-65DV0-000
PANEL,MAIN FLOOR
5DR; 1997-11-01~ |
61411-65DV0-000 |
— | ||
|
2
|
2
61420-65D00-000 MEMBER,FR FL NO.1,R5DR; 1997-11-01~ |
61420-65D00-000 |
US $96 |
||
|
3
|
3
61520-65D00-000
メンバ,フロントフロアNO.1,レフト
5DR; 1997-11-01~ |
61520-65D00-000 |
— | ||
| replacement | |||||
|
3
|
3
61520-65D01-000 MEMBER,FR FL N0.1,L5DR; 1997-11-01~ |
61520-65D01-000 |
US $104.80 |
||
|
4
|
4
61430-65D02-000
メンバ,フロントフロアNO.2,ライト
5DR; 1997-11-01~ |
61430-65D02-000 |
— | ||
| replacement | |||||
|
4
|
4
61430-52D00-000
MEMBER,FR FL NO.2,R
5DR; 1997-11-01~ |
61430-52D00-000 |
— | ||
|
5
|
5
61530-65D01-000
MEMBER,FR FL NO.2,L
5DR; 1997-11-01~ |
61530-65D01-000 |
— | ||
|
6
|
6
61441-65D10-000
メンバ,フロントシート,ライト
5DR; 1997-11-01~ |
61441-65D10-000 |
— | ||
| replacement | |||||
|
6
|
6
61441-65D20-000
MEMBER,FR SEAT,R
5DR; 1997-11-01~ |
61441-65D20-000 |
— | ||
|
7
|
7
61541-65D10-000
メンバ,フロントシート,レフト
5DR; 1997-11-01~ |
61541-65D10-000 |
— | ||
| replacement | |||||
|
7
|
7
61541-65D20-000
MEMBER,FR SEAT,L
5DR; 1997-11-01~ |
61541-65D20-000 |
— | ||
|
8
|
8
61461-65D00-000 REINFORCEMENT,FR FL SIDE5DR; 1997-11-01~ |
61461-65D00-000 |
US $4.56 |
||
|
9
|
9
61610-65D00-000
リンフォースメント,フロアトンネル
5DR; 1997-11-01~ |
61610-65D00-000 |
— | ||
| replacement | |||||
|
9
|
9
61610-65D30-000 REINFORCEMENT,FL TUNNEL5DR; 1997-11-01~ |
61610-65D30-000 |
US $86.11 |
||
|
10
|
10
61630-65D10-000
Bracket,parking brake
5DR; 1997-11-01~ |
61630-65D10-000 |
— | ||
|
11
|
11
61642-60A01-000
Bracket,heat protector
5DR; 1997-11-01~ |
61642-60A01-000 |
— | ||
|
12
|
12
61651-65D10-000
BRACKET,FOOTREST
5DR; 1997-11-01~ |
61651-65D10-000 |
— | ||
|
13
|
13
61700-65D00-000
パネルアッシ,センタフロア
5DR; 1997-11-01~ |
61700-65D00-000 |
— | ||
| replacement | |||||
|
13
|
13
61700-65D01-000 PANEL ASSY,CENTER FLOOR5DR; 1997-11-01~ |
61700-65D01-000 |
US $499.84 |
||
|
14
|
14
62111-65D10-000
パネル,リヤフロア
5DR; 1997-11-01~ |
62111-65D10-000 |
— | ||
| replacement | |||||
|
14
|
14
62111-65DV1-000
Panel,rear floor
5DR; 1997-11-01~ |
62111-65DV1-000 |
— | ||
|
15
|
15
62112-65D00-000 BRACKET,RR SEAT LOCK5DR; 1997-11-01~ |
62112-65D00-000 |
US $6.99 |
||
|
16
|
16
62120-65D20-000
パネル,リヤフロア,NO.1
5DR; 1997-11-01~ |
62120-65D20-000 |
— | ||
| replacement | |||||
|
16
|
16
62120-65D40-000
MEMBER,RR FL N0.1
5DR; 1997-11-01~ |
62120-65D40-000 |
— | ||
|
17
|
17
62131-65D00-000 REINF,RR SEAT BELT SIDE,R5DR; 1997-11-01~ |
62131-65D00-000 |
US $24.29 |
||
|
18
|
18
62132-65D00-000 REINF,RR SEAT BELT SIDE,L5DR; 1997-11-01~ |
62132-65D00-000 |
US $24.29 |
||
|
19
|
19
62141-65D10-000 MEMBER,RR FL NO.25DR; 1997-11-01~ |
62141-65D10-000 |
US $80.96 |
||
|
20
|
20
62210-65D00-000 PANEL,RR WHEEL HSG INR,R5DR; 1997-11-01~ |
62210-65D00-000 |
US $182.16 |
||
|
21
|
21
62310-65D00-000 PANEL,RR WHEEL HSG INR,L5DR; 1997-11-01~ |
62310-65D00-000 |
US $182.16 |
||
|
22
|
22
62510-65D00-000
MEMBER,RR FL TAIL
5DR; 1997-11-01~ |
62510-65D00-000 |
— | ||
|
23
|
23
65971-77E00-000
Cap, rear floor drain
5DR; 1997-11-01~ |
65971-77E00-000 |
— | ||
| replacement | |||||
|
23
|
23
65971-77E10-000 CAP,OD:305DR; 1997-11-01~ |
65971-77E10-000 |
US $2.24 |
||
