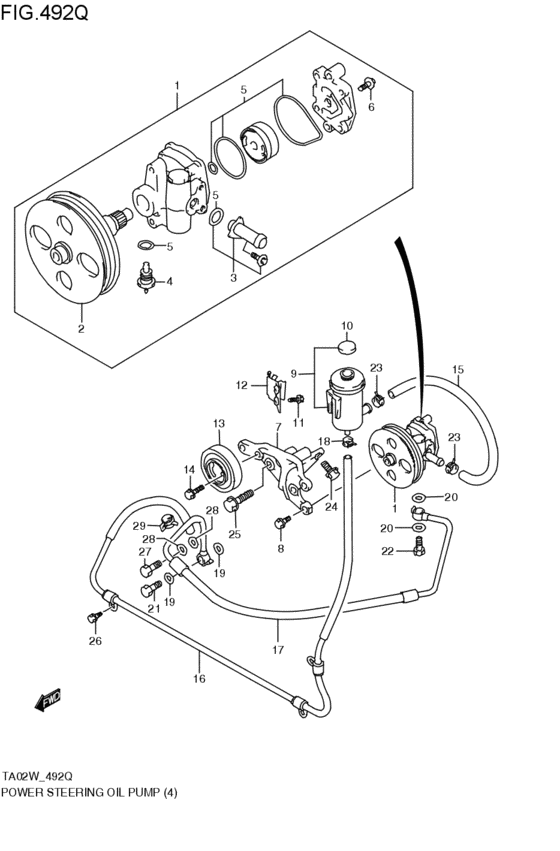

power steering oil pump (H25A; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-65D30-000 PUMP ASSY,POWER STEERINGH25A; 1998-02-01~2000-03-01 |
49100-65D30-000 |
US $880 |
||
|
2
|
2
49111-65D30-000 PULLEY SETH25A; 1998-02-01~2000-03-01 |
49111-65D30-000 |
US $140.58 |
||
|
3
|
3
49112-65D30-000 CONNECTOR SETH25A; 1998-02-01~2000-03-01 |
49112-65D30-000 |
US $42.32 |
||
|
4
|
4
49113-65D00-000 TERMINAL SETH25A; 1998-02-01~2000-03-01 |
49113-65D00-000 |
US $40.80 |
||
|
5
|
5
49114-56B30-000 SEAL SETH25A; 1998-02-01~2000-03-01 |
49114-56B30-000 |
from US $34.96 |
||
|
6
|
6
49115-56B30-000 BOLT SETH25A; 1998-02-01~2000-03-01 |
49115-56B30-000 |
US $10.56 |
||
|
7
|
7
49120-65D30-000 BRACKET,POWER STRG PUMPH25A; 1998-02-01~2000-03-01 |
49120-65D30-000 |
US $110.03 |
||
|
8
|
8
01550-08253-000
Bolt, rear
H25A; 1998-02-01~2000-03-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-0825B-000 |
from US $0.96 |
||
|
8
|
8
01550-0825A-000 BOLTH25A; 1998-02-01~2000-03-01 |
01550-0825A-000 |
from US $1.06 |
||
|
9
|
9
49140-65D00-000
タンクアッシ,パワーステアリングオイル
H25A; 1998-02-01~2000-03-01 |
49140-65D00-000 |
— | ||
| replacement | |||||
|
9
|
9
49140-54J01-000 TANK ASSY,POWER STRG OILH25A; 1998-02-01~2000-03-01 |
49140-54J01-000 |
from US $59.45 |
||
|
10
|
10
49142-65D00-000 CAP,PS OIL TANKH25A; 1998-02-01~2000-03-01 |
49142-65D00-000 |
from US $5.02 |
||
|
11
|
11
02162-06123-000
Bolt (6x12)
H25A; 1998-02-01~2000-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
02162-0612B-000 SCREWBolt H25A; 1998-02-01~2000-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
11
|
11
02162-0612A-000 SCREWBolt, bracket H25A; 1998-02-01~2000-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
12
|
12
49150-65D31-000 BRACKET,PS RESERVE TANKH25A; 1998-02-01~2000-03-01 |
49150-65D31-000 |
US $46.40 |
||
|
13
|
13
49160-77E00-000
プーリ,ベルトテンション
H25A; 1998-02-01~2000-03-01 |
49160-77E00-000 |
— | ||
| replacement | |||||
|
13
|
13
49160-77E01-000 PULLEY,BELT TENSIONH25A; 1998-02-01~2000-03-01 |
49160-77E01-000 |
from US $184.28 |
||
|
14
|
14
09103-08107-000 BOLT(8X33)Bolt,outer H25A; 1998-02-01~2000-03-01 |
09103-08107-000 |
from US $1.98 |
||
|
15
|
15
49214-65D30-000 HOSE,SUCTIONH25A; 1998-02-01~2000-03-01 |
49214-65D30-000 |
US $50.40 |
||
|
16
|
16
49220-65D30-000
HOSE ASSY,RETURN
H25A; 1998-02-01~2000-03-01 |
49220-65D30-000 |
— | ||
|
17
|
17
49230-65D30-000
ホース,プレッシャ
H25A; 1998-02-01~2000-03-01 |
49230-65D30-000 |
— | ||
| replacement | |||||
|
17
|
17
49230-65D31-000 HOSE,PRESSUREH25A; 1998-02-01~2000-03-01 |
49230-65D31-000 |
from US $177.12 |
||
|
18
|
18
09401-15404-000 CLIPH25A; 1998-02-01~2000-03-01 |
09401-15404-000 |
from US $1.06 |
||
|
19
|
19
09168-14014-000 GASKET(14X18X1.5)H25A; 1999-01-01~2000-03-01 |
09168-14014-000 |
from US $0.92 |
||
|
19
|
19
09168-14009-000
Washer
H25A; 1998-02-01~1999-01-01 |
09168-14009-000 |
— | ||
| replacements | |||||
|
19
|
19
09168-14014-000 GASKET(14X18X1.5)H25A; 1998-02-01~1999-01-01 |
09168-14014-000 |
from US $0.92 |
||
|
19
|
19
09168-14011-000 GASKET(14X20X1.5)H25A; 1998-02-01~1999-01-01 |
09168-14011-000 |
from US $0.72 |
||
|
20
|
20
09168-16002-000 GASKET(16X22X2)H25A; 1998-02-01~2000-03-01 |
09168-16002-000 |
from US $0.90 |
||
|
21
|
21
09360-14011-000 UNIONH25A; 1998-02-01~2000-03-01 |
09360-14011-000 |
US $13.44 |
||
|
22
|
22
09360-16003-000 UNIONH25A; 1998-02-01~2000-03-01 |
09360-16003-000 |
from US $5.94 |
||
|
23
|
23
09401-20405-000 CLIPClip, tank H25A; 1998-02-01~2000-03-01 |
09401-20405-000 |
from US $5.56 |
||
|
24
|
24
01550-10253-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-1025B-000 BoltBolt, rr swgarm bracket, l H25A; 1998-02-01~2000-03-01 |
01550-1025B-000 |
from US $5.59 |
||
|
24
|
24
01550-1025A-000 BOLTBolt, drive gear H25A; 1998-02-01~2000-03-01 |
01550-1025A-000 |
from US $1.06 |
||
|
25
|
25
01550-10603-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-1060B-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-1060B-000 |
US $1.60 |
||
|
25
|
25
01550-1060A-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-1060A-000 |
from US $1.60 |
||
|
26
|
26
02162-06203-000
Bolt
H25A; 1998-02-01~2000-03-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
26
|
26
02162-0620C-000 SCREWH25A; 1998-02-01~2000-03-01 |
02162-0620C-000 |
from US $0.80 |
||
|
27
|
27
09360-14011-000 UNIONH25A; 1998-02-01~2000-03-01 |
09360-14011-000 |
US $13.44 |
||
|
28
|
28
09168-14009-000
Washer
H25A; 1998-02-01~2000-03-01 |
09168-14009-000 |
— | ||
| replacements | |||||
|
28
|
28
09168-14014-000 GASKET(14X18X1.5)H25A; 1998-02-01~2000-03-01 |
09168-14014-000 |
from US $0.92 |
||
|
28
|
28
09168-14011-000 GASKET(14X20X1.5)H25A; 1998-02-01~2000-03-01 |
09168-14011-000 |
from US $0.72 |
||
|
29
|
29
49225-65D10-000 CLAMP,RETURN GEAR SIDEH25A; 1998-02-01~2000-03-01 |
49225-65D10-000 |
US $2.98 |
||
