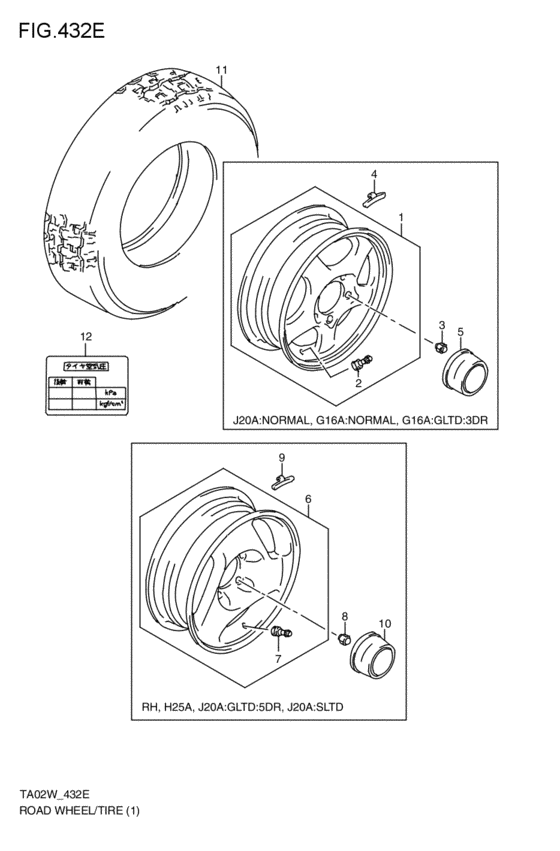

road wheel / tire (JZ; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
6
|
6
43200-56881-27S WHEEL SET,AL(16X7JJ)シルバ-; JZ:(RF,H25A); 1998-02-01~2000-03-01 |
43200-56881-27S |
US $556.16 |
||
|
7
|
7
43130-78030-000 VALVE,TIRE TR413 BSValve assy, wheel rim BS; JZ:(RF,H25A); 1998-02-01~2000-03-01 |
43130-78030-000 |
US $12.50 |
||
|
8
|
8
09159-12024-000 NUTJZ:(RF,H25A,J20A:(GLTD:5DR,SLTD)); 1997-11-01~2000-03-01 |
09159-12024-000 |
from US $2.40 |
||
|
9
|
9
43221-60E50-000 WEIGHT,WHEEL BALANCE 30GJZ:(RF,H25A,J20A:(GLTD:5DR,SLTD)); 1997-11-01~2000-03-01 |
43221-60E50-000 |
US $6.15 |
||
|
9
|
9
43232-60A30-000 WEIGHT,WHEEL BALANCE 10GJZ:(RF,H25A,J20A:(GLTD:5DR,SLTD)); 1997-11-01~2000-03-01 |
43232-60A30-000 |
US $4.45 |
||
|
9
|
9
43234-60A30-000 WEIGHT,WHEEL BALANCE 20GJZ:(RF,H25A,J20A:(GLTD:5DR,SLTD)); 1997-11-01~2000-03-01 |
43234-60A30-000 |
US $5.81 |
||
|
9
|
9
43238-60A30-000 WEIGHT,WHEEL BALANCE 40GJZ:(RF,H25A,J20A:(GLTD:5DR,SLTD)); 1997-11-01~2000-03-01 |
43238-60A30-000 |
US $5.63 |
||
|
10
|
10
43252-56B00-000 CAP,WHEEL,CENTERJZ:(RF,H25A,J20A:(GLTD:5DR,SLTD)); 1997-11-01~1999-06-01 |
43252-56B00-000 |
from US $13.28 |
||
|
10
|
10
43252-65D00-5PK CAP,WHEEL CENTERブラック; JZ:(RF,H25A,J20A:(GLTD:5DR,SLTD)); 1999-06-01~2000-03-01 |
43252-65D00-5PK |
from US $22.43 |
||
|
11
|
11
43110-65D30-000
TIRE(235/60R16)
JZ:(RF,H25A); 1998-02-01~2000-03-01 |
43110-65D30-000 |
— | ||
|
12
|
12
79161-65D00-000
PLACARD,TIRE INFORMATION
JZ:(RF,H25A); 1998-02-01~2000-03-01 |
79161-65D00-000 |
— |
