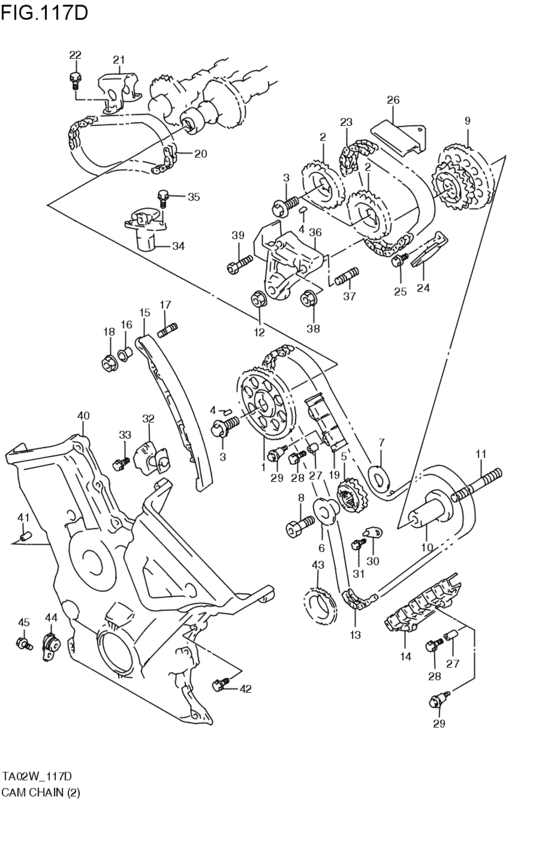

cam chain (H25A; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12741-85FA0-000 SPROCKET,CMSHFT TIMING INTK,RH25A; 1998-02-01~2000-03-01 |
12741-85FA0-000 |
from US $107.82 |
||
|
2
|
2
12742-85FA0-000 SPROCKET,CAMSHAFT TIMING,LHH25A; 1998-02-01~2000-03-01 |
12742-85FA0-000 |
from US $181.78 |
||
|
3
|
3
09103-12049-000 BOLT(12X25)Bolt (12x25) H25A; 1998-02-01~2000-03-01 |
09103-12049-000 |
from US $2.09 |
||
|
4
|
4
09206-05001-000 PIN(3.4X5X10)H25A; 1998-02-01~2000-03-01 |
09206-05001-000 |
from US $1.22 |
||
|
5
|
5
12745-85FA0-000 SPROCKET,IDLER NO.1H25A; 1998-02-01~2000-03-01 |
12745-85FA0-000 |
from US $112.03 |
||
|
6
|
6
12747-85FA0-000 SHAFT,SPROCKET IDLER NO.1H25A; 1998-02-01~2000-03-01 |
12747-85FA0-000 |
from US $22.77 |
||
|
7
|
7
12748-85FA0-000 WASHER,SPROCKET IDLER NO.1H25A; 1998-02-01~2000-03-01 |
12748-85FA0-000 |
from US $9.81 |
||
|
8
|
8
07130-10353-000
Bolt
H25A; 1998-02-01~2000-03-01 |
07130-10353-000 |
— | ||
| replacement | |||||
|
8
|
8
07130-1035B-000 BoltH25A; 1998-02-01~2000-03-01 |
07130-1035B-000 |
from US $1.68 |
||
|
9
|
9
12750-85FA0-000
スプロケット,アイドラ,NO.2
H25A; 1998-02-01~2000-03-01 |
12750-85FA0-000 |
— | ||
| replacement | |||||
|
9
|
9
12750-85FA1-000 SPROCKET,IDLER NO.2H25A; 1998-02-01~2000-03-01 |
12750-85FA1-000 |
from US $171.86 |
||
|
10
|
10
12752-85FA0-000 SHAFT,SPROCKET IDLER NO.2H25A; 1998-02-01~2000-03-01 |
12752-85FA0-000 |
from US $47.16 |
||
|
11
|
11
01421-10753-000
Bolt,stud
H25A; 1998-02-01~2000-03-01 |
01421-10753-000 |
— | ||
| replacement | |||||
|
11
|
11
01421-1075A-000 BOLT,STUDH25A; 1998-02-01~2000-03-01 |
01421-1075A-000 |
US $21 |
||
|
12
|
12
08316-10103-000
Nut
H25A; 1998-02-01~2000-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-1010B-000 NUTH25A; 1998-02-01~2000-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
13
|
13
12761-85FA0-000 CHAIN,TIMING 1STH25A; 1998-02-01~2000-03-01 |
12761-85FA0-000 |
from US $207.47 |
||
|
14
|
14
12771-85FA0-000 GUIDE,TIMING CHAIN,NO.1H25A; 1998-02-01~2000-03-01 |
12771-85FA0-000 |
from US $26.69 |
||
|
15
|
15
12811-85FA0-000 Tensioner, Timing ChainH25A; 1998-02-01~2000-03-01 |
12811-85FA0-000 |
from US $79.47 |
||
|
16
|
16
12812-73G00-000 SPACER TIMING CHAIN TENSIONEH25A; 1998-02-01~2000-03-01 |
12812-73G00-000 |
US $5.74 |
||
| replacement | |||||
|
16
|
16
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner H25A; 1998-02-01~2000-03-01 |
12812-73G10-000 |
from US $4.48 |
||
|
17
|
17
09108-08200-000
Stud bolt (8x20)
H25A; 1998-02-01~2000-03-01 |
09108-08200-000 |
— | ||
| replacement | |||||
|
17
|
17
09108-08255-000 BOLT,STUDH25A; 1998-02-01~2000-03-01 |
09108-08255-000 |
from US $1.52 |
||
|
18
|
18
08316-10083-000
Nut
H25A; 1998-02-01~2000-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUTH25A; 1998-02-01~2000-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
19
|
19
12772-85FA0-000 GUIDE,TIMING CHAIN,NO.2H25A; 1998-02-01~2000-03-01 |
12772-85FA0-000 |
from US $16.18 |
||
|
20
|
20
12762-85FA0-000 CHAIN,TIMING 2ND,RHH25A; 1998-02-01~2000-03-01 |
12762-85FA0-000 |
from US $59.51 |
||
|
21
|
21
12773-85FA0-000
ガイド,タイミングチェーン,NO.3
H25A; 1998-02-01~2000-03-01 |
12773-85FA0-000 |
— | ||
| replacement | |||||
|
21
|
21
12773-85FA1-000 GUIDE,TIMING CHAIN N0.3H25A; 1998-02-01~2000-03-01 |
12773-85FA1-000 |
from US $38.77 |
||
|
22
|
22
01550-06123-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
01550-0612B-000 BoltBolt, clamp H25A; 1998-02-01~2000-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
22
|
22
01550-0612A-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
23
|
23
12763-85FA0-000 CHAIN,TIMING 2ND,LHH25A; 1998-02-01~2000-03-01 |
12763-85FA0-000 |
from US $98.60 |
||
|
24
|
24
12774-85FA1-000 GUIDE,TIMING CHAIN,NO.4H25A; 1998-02-01~2000-03-01 |
12774-85FA1-000 |
from US $15.35 |
||
|
25
|
25
01550-06163-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0616B-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0616B-000 |
from US $0.76 |
||
|
25
|
25
01550-0616A-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0616A-000 |
from US $0.76 |
||
|
26
|
26
12775-85FA0-000 GUIDE,TIMING CHAIN,NO.5H25A; 1998-02-01~2000-03-01 |
12775-85FA0-000 |
from US $43.72 |
||
|
27
|
27
12777-85FA0-000
SPACER TIMING CHAIN
H25A; 1998-02-01~1998-04-01 |
12777-85FA0-000 |
— | ||
| replacement | |||||
|
27
|
27
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide H25A; 1998-02-01~1998-04-01 |
12776-85FA0-000 |
from US $3.04 |
||
|
28
|
28
01550-06253-000
Bolt (6x25)
H25A; 1998-02-01~1998-04-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0625B-000 BoltBolt, head cover H25A; 1998-02-01~1998-04-01 |
01550-0625B-000 |
from US $0.91 |
||
|
28
|
28
01550-0625A-000 BoltBolt H25A; 1998-02-01~1998-04-01 |
01550-0625A-000 |
from US $0.96 |
||
|
29
|
29
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide H25A; 1998-05-01~2000-03-01 |
12776-85FA0-000 |
from US $3.04 |
||
|
30
|
30
12780-85FA0-000 JET,TIMING CHAINH25A; 1998-02-01~2000-03-01 |
12780-85FA0-000 |
from US $8.53 |
||
|
31
|
31
01550-06123-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0612B-000 BoltBolt, clamp H25A; 1998-02-01~2000-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
31
|
31
01550-0612A-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
32
|
32
12831-85FA2-000
アジャスタアッシ,テンショナ,NO.1
H25A; 1998-02-01~2000-03-01 |
12831-85FA2-000 |
— | ||
| replacement | |||||
|
32
|
32
12831-85FA7-000 ADJUSTER ASSY,TENSIONER NO.1H25A; 1998-02-01~2000-03-01 |
12831-85FA7-000 |
from US $109.26 |
||
|
33
|
33
01550-06203-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
33
|
33
01550-0620B-000 BoltBolt, inspection cap H25A; 1998-02-01~2000-03-01 |
01550-0620B-000 |
from US $0.76 |
||
|
34
|
34
12832-85FA0-000 ADJUSTER ASSY,TENSIONER NO.2H25A; 1998-02-01~2000-03-01 |
12832-85FA0-000 |
from US $124.65 |
||
|
35
|
35
01550-06203-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
35
|
35
01550-0620B-000 BoltBolt, inspection cap H25A; 1998-02-01~2000-03-01 |
01550-0620B-000 |
from US $0.76 |
||
|
36
|
36
12833-85FA1-000 アジャスタアッシ,テンショナ,NO.3H25A; 1998-02-01~2000-03-01 |
12833-85FA1-000 |
US $110.30 |
||
| replacement | |||||
|
36
|
36
12833-85FA3-000 ADJUSTER ASSY,TENSIONER NO.3H25A; 1998-02-01~2000-03-01 |
12833-85FA3-000 |
from US $110.30 |
||
|
37
|
37
01421-10353-000
Stud 10x1.25x55
H25A; 1998-02-01~2000-03-01 |
01421-10353-000 |
— | ||
| replacements | |||||
|
37
|
37
01421-1035A-000 BOLT,STUDH25A; 1998-02-01~2000-03-01 |
01421-1035A-000 |
from US $4.13 |
||
|
37
|
37
01421-1035B-000 BOLT,STUDH25A; 1998-02-01~2000-03-01 |
01421-1035B-000 |
US $17.30 |
||
|
38
|
38
08316-10103-000
Nut
H25A; 1998-02-01~2000-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
38
|
38
08316-1010B-000 NUTH25A; 1998-02-01~2000-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
39
|
39
07120-06403-000
Bolt
H25A; 1998-02-01~2000-03-01 |
07120-06403-000 |
— | ||
| replacement | |||||
|
39
|
39
07120-0640B-000 BoltH25A; 1998-02-01~2000-03-01 |
07120-0640B-000 |
from US $1.12 |
||
|
40
|
40
11381-67D00-000
COVER TIMING CHAIN
H25A; 1998-02-01~2000-03-01 |
11381-67D00-000 |
— | ||
| replacement | |||||
|
40
|
40
11381-67D01-000 COVER,TIMING CHAINH25A; 1998-02-01~2000-03-01 |
11381-67D01-000 |
from US $230.54 |
||
|
41
|
41
09206-08001-000 PIN(8X11)H25A; 1998-02-01~2000-03-01 |
09206-08001-000 |
from US $1.53 |
||
|
42
|
42
01550-06303-000
Bolt (6x30)
H25A; 1998-02-01~2000-03-01 |
01550-06303-000 |
— | ||
| replacement | |||||
|
42
|
42
01550-0630A-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0630A-000 |
from US $1.12 |
||
|
43
|
43
12631-67D00-000 Sprocket, Crankshaft TimingH25A; 1998-02-01~2000-03-01 |
12631-67D00-000 |
from US $97.63 |
||
|
44
|
44
11215-67D00-000 PLUG,CYLINDERH25A; 1998-02-01~2000-03-01 |
11215-67D00-000 |
US $9.36 |
||
|
45
|
45
01550-06123-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
45
|
45
01550-0612B-000 BoltBolt, clamp H25A; 1998-02-01~2000-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
45
|
45
01550-0612A-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0612A-000 |
from US $0.76 |
||
