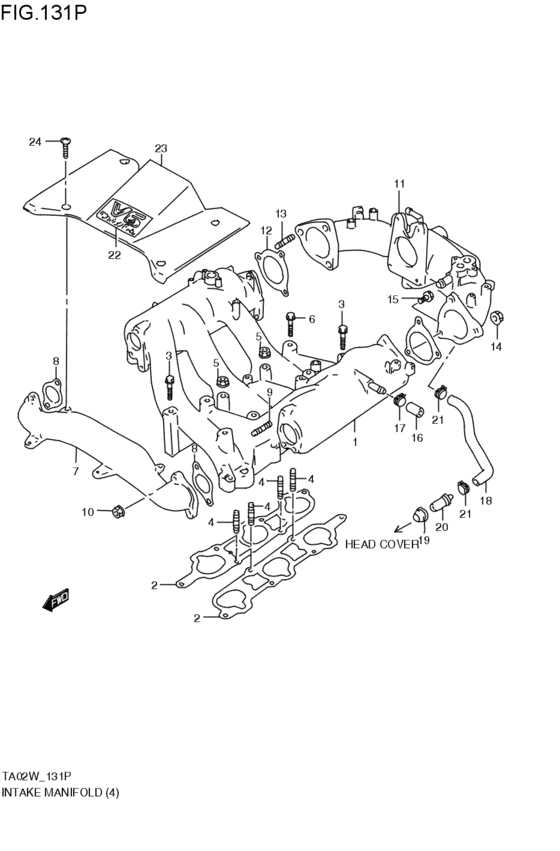

intake manifold (H25A; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-67D20-000
マニホールド,インテーク
H25A; 1998-02-01~2000-03-01 |
13110-67D20-000 |
— | ||
| replacements | |||||
|
1
|
1
13110-67DV1-000
MANIFOLD,INTK
H25A; 1998-02-01~2000-03-01 |
13110-67DV1-000 |
— | ||
|
1
|
1
18419-52D00-000 HOSE,VAC RGLTR TO PIPEH25A; 1998-02-01~2000-03-01 |
18419-52D00-000 |
from US $5.83 |
||
|
2
|
2
13119-77E00-000 GASKET,INTK MANFH25A; 1998-02-01~2000-03-01 |
13119-77E00-000 |
from US $13.43 |
||
|
3
|
3
09108-08060-000
Stud
H25A; 1998-02-01~2000-03-01 |
09108-08060-000 |
— | ||
|
4
|
4
01421-08853-000
Stud bolt
H25A; 1998-02-01~2000-03-01 |
01421-08853-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0885A-000 BOLT,STUDH25A; 1998-02-01~2000-03-01 |
01421-0885A-000 |
from US $6.46 |
||
|
5
|
5
08316-10083-000
Nut
H25A; 1998-02-01~2000-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUTH25A; 1998-02-01~2000-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
01550-08453-000
Bolt,cylinder h
H25A; 1998-02-01~2000-03-01 |
01550-08453-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0845B-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0845B-000 |
from US $1.06 |
||
|
6
|
6
01550-0845A-000 BoltBolt, oil pump (s) H25A; 1998-02-01~2000-03-01 |
01550-0845A-000 |
US $5.03 |
||
|
7
|
7
13131-67D00-000 PIPE,SURGE TANKH25A; 1998-02-01~2000-03-01 |
13131-67D00-000 |
from US $97.36 |
||
|
8
|
8
13139-67D00-000 GASKET,SURGE TANK PIPEH25A; 1998-02-01~2000-03-01 |
13139-67D00-000 |
from US $2.72 |
||
|
9
|
9
01421-08253-000
Stud bolt, no.2
H25A; 1998-02-01~2000-03-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
9
|
9
01421-0825A-000 BOLT,STUDH25A; 1998-02-01~2000-03-01 |
01421-0825A-000 |
from US $1.28 |
||
|
10
|
10
08316-10083-000
Nut
H25A; 1998-02-01~2000-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1008B-000 NUTH25A; 1998-02-01~2000-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
11
|
11
13140-67D10-000 COLLECTOR,INTAKEH25A; 1998-02-01~2000-03-01 |
13140-67D10-000 |
from US $199.71 |
||
|
12
|
12
13122-67D00-000 GASKET,COLLECTORH25A; 1998-02-01~2000-03-01 |
13122-67D00-000 |
from US $6.14 |
||
|
13
|
13
01421-08253-000
Stud bolt, no.2
H25A; 1998-02-01~2000-03-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
13
|
13
01421-0825A-000 BOLT,STUDH25A; 1998-02-01~2000-03-01 |
01421-0825A-000 |
from US $1.28 |
||
|
14
|
14
08316-10083-000
Nut
H25A; 1998-02-01~2000-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1008B-000 NUTH25A; 1998-02-01~2000-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
15
|
15
01550-08253-000
Bolt, rear
H25A; 1998-02-01~2000-03-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0825B-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0825B-000 |
from US $1.06 |
||
|
15
|
15
01550-0825A-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0825A-000 |
from US $0.47 |
||
|
16
|
16
09251-09003-000 PLUGH25A; 1998-02-01~2000-03-01 |
09251-09003-000 |
from US $1.44 |
||
|
17
|
17
09401-13414-000 CLIPClip, pcv hose H25A; 1998-02-01~2000-03-01 |
09401-13414-000 |
from US $1.60 |
||
|
18
|
18
11193-77E00-000
ホース,PCV
H25A; 1998-02-01~2000-03-01 |
11193-77E00-000 |
— | ||
| replacement | |||||
|
18
|
18
11190-77820-000 HOSE&PIPE SET,PCV H27H25A; 1998-02-01~2000-03-01 |
11190-77820-000 |
from US $38.72 |
||
|
19
|
19
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve H25A; 1998-02-01~2000-03-01 |
11198-58B00-000 |
from US $3.38 |
||
| replacement | |||||
|
19
|
19
11198-98L00-000 Seal,pcv ValveH25A; 1998-02-01~2000-03-01 |
11198-98L00-000 |
from US $2.74 |
||
|
20
|
20
18118-77E00-000 VALVE,PCVH25A; 1998-02-01~2000-03-01 |
18118-77E00-000 |
from US $46.55 |
||
|
21
|
21
09401-13414-000 CLIPClip, pcv hose H25A; 1998-02-01~2000-03-01 |
09401-13414-000 |
from US $1.60 |
||
|
22
|
22
11965-77E11-000 LABEL,V6H25A; 1998-02-01~2000-03-01 |
11965-77E11-000 |
from US $3.20 |
||
|
23
|
23
13170-77E02-000 COVER,SURGE TANKH25A; 1998-02-01~2000-03-01 |
13170-77E02-000 |
from US $18.79 |
||
|
24
|
24
09125-06105-000 SCREW(6X20)H25A; 1998-02-01~2000-03-01 |
09125-06105-000 |
from US $1.60 |
||
