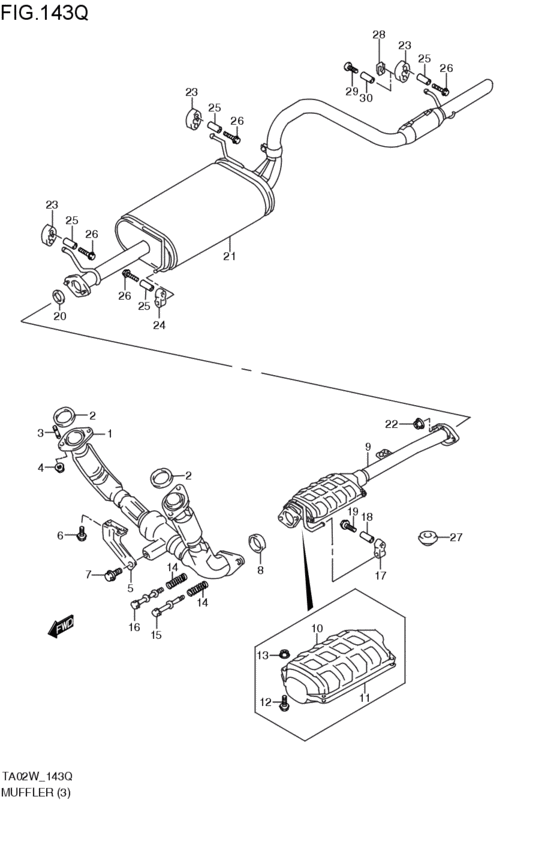

muffler (H25A; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-77E20-000
パイプ,エキゾースト,NO.1
H25A; 1998-02-01~2000-03-01 |
14190-77E20-000 |
— | ||
| replacement | |||||
|
1
|
1
14190-77E23-000 PIPE,EXH NO.1H25A; 1998-02-01~2000-03-01 |
14190-77E23-000 |
from US $374.65 |
||
|
2
|
2
14184-60G00-000 GASKET,EXH PIPEH25A; 1998-02-01~2000-03-01 |
14184-60G00-000 |
from US $6.17 |
||
|
3
|
3
09108-10122-000 BOLT,STUDH25A; 1998-02-01~2000-03-01 |
09108-10122-000 |
from US $3.40 |
||
|
4
|
4
09159-10098-000 NUTH25A; 1998-02-01~2000-03-01 |
09159-10098-000 |
from US $1.28 |
||
|
5
|
5
14221-77E12-000
BRACKET,EXH PIPE
H25A; 1998-02-01~2000-03-01 |
14221-77E12-000 |
— | ||
|
6
|
6
01550-08203-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0820B-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
6
|
6
01550-0820A-000 BoltBolt, funnel bracket H25A; 1998-02-01~2000-03-01 |
01550-0820A-000 |
from US $1.12 |
||
|
7
|
7
01550-10203-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-1020A-000 BoltBolt, bal sprocket H25A; 1998-02-01~2000-03-01 |
01550-1020A-000 |
from US $0.96 |
||
|
8
|
8
14183-58B02-000
Ring,seal exh pipe
H25A; 1998-02-01~2000-03-01 |
14183-58B02-000 |
— | ||
| replacements | |||||
|
8
|
8
14183-65D00-000 RING,SEAL EXH PIPEH25A; 1998-02-01~2000-03-01 |
14183-65D00-000 |
from US $15.93 |
||
|
8
|
8
14183-58B10-000 RING,SEAL EXH PIPEH25A; 1998-02-01~2000-03-01 |
14183-58B10-000 |
from US $23.92 |
||
|
9
|
9
14250-65D00-000 PIPE,EXH NO.2H25A; 1998-02-01~2000-03-01 |
14250-65D00-000 |
US $665.28 |
||
|
10
|
10
14251-65D00-000
カバー,キャタリストケース,アッパ
H25A; 1998-02-01~2000-03-01 |
14251-65D00-000 |
— | ||
| replacement | |||||
|
10
|
10
14251-65D0V-000 COVER,CATACASE UPPERH25A; 1998-02-01~2000-03-01 |
14251-65D0V-000 |
US $41.60 |
||
|
11
|
11
14252-65D00-000
カバー,キャタリストケース,ロア
H25A; 1998-02-01~2000-03-01 |
14252-65D00-000 |
— | ||
| replacement | |||||
|
11
|
11
14252-65D0V-000
COVER,CATACASE LOWER 65D-C01
H25A; 1998-02-01~2000-03-01 |
14252-65D0V-000 |
— | ||
|
12
|
12
01550-08163-000
Bolt, holder
H25A; 1998-02-01~2000-03-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0816B-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0816B-000 |
from US $0.91 |
||
|
12
|
12
01550-0816A-000 BoltBolt, rear H25A; 1998-02-01~2000-03-01 |
01550-0816A-000 |
from US $0.91 |
||
|
13
|
13
08316-10083-000
Nut
H25A; 1998-02-01~2000-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1008B-000 NUTH25A; 1998-02-01~2000-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
14
|
14
14492-82600-000
Spring
CHKK; H25A; 1998-02-01~2000-03-01 |
14492-82600-000 |
— | ||
| replacement | |||||
|
14
|
14
14492-67D00-000 SPRING,EXH PIPECHKK; H25A; 1998-02-01~2000-03-01 |
14492-67D00-000 |
from US $6.21 |
||
|
15
|
15
09119-10042-000
ボルト,10X65
H25A; 1998-02-01~2000-03-01 |
09119-10042-000 |
— | ||
| replacement | |||||
|
15
|
15
09119-10041-000 BOLT(10X65)H25A; 1998-02-01~2000-03-01 |
09119-10041-000 |
from US $5.18 |
||
|
16
|
16
14193-77E00-000 BOLT,EXH PIPEH25A; 1998-02-01~2000-03-01 |
14193-77E00-000 |
from US $15.24 |
||
|
17
|
17
14281-71C00-000
MOUNTING
H25A; 1998-02-01~2000-03-01 |
14281-71C00-000 |
— | ||
| replacement | |||||
|
17
|
17
14281-71C01-000 MOUNTING,MUFH25A; 1998-02-01~2000-03-01 |
14281-71C01-000 |
from US $9.63 |
||
|
18
|
18
09180-08057-000
Spacer
H25A; 1998-02-01~2000-03-01 |
09180-08057-000 |
— | ||
|
19
|
19
01550-08353-000
Bolt, rear
H25A; 1998-02-01~2000-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0835B-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0835B-000 |
from US $1.28 |
||
|
19
|
19
01550-0835A-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
20
|
20
14182-58B10-000 GASKET,MUFFLERH25A; 1998-02-01~2000-03-01 |
14182-58B10-000 |
from US $6.24 |
||
|
21
|
21
14300-67D00-000
マフラ,エキゾースト
H25A; 1998-02-01~1999-06-01 |
14300-67D00-000 |
— | ||
| replacements | |||||
|
21
|
21
09139-08019-000 SCREW(8X35)H25A; 1998-02-01~1999-06-01 |
09139-08019-000 |
from US $1.01 |
||
|
21
|
21
14300-67D0V-000
New Genuine Part
H25A; 1998-02-01~1999-06-01 |
14300-67D0V-000 |
— | ||
|
21
|
21
09180-08227-000 SPACER(8.2X12.5X23.5)H25A; 1998-02-01~1999-06-01 |
09180-08227-000 |
from US $1.04 |
||
|
21
|
21
09180-08057-000
Spacer
H25A; 1998-02-01~1999-06-01 |
09180-08057-000 |
— | ||
|
21
|
21
14300-67D01-000
マフラ,エキゾースト
H25A; 1999-07-01~2000-03-01 |
14300-67D01-000 |
— | ||
| replacement | |||||
|
21
|
21
14300-67D0V-000
New Genuine Part
H25A; 1999-07-01~2000-03-01 |
14300-67D0V-000 |
— | ||
|
22
|
22
09159-10049-000 NutH25A; 1998-02-01~2000-03-01 |
09159-10049-000 |
US $1.28 |
||
| replacement | |||||
|
22
|
22
09159-10102-000 NUTH25A; 1998-02-01~2000-03-01 |
09159-10102-000 |
from US $1.28 |
||
|
23
|
23
14281-58B00-000
MOUNTING
H25A; 1998-02-01~2000-03-01 |
14281-58B00-000 |
— | ||
| replacement | |||||
|
23
|
23
14281-58B01-000 MOUNTING,MUFH25A; 1998-02-01~2000-03-01 |
14281-58B01-000 |
from US $16.54 |
||
|
24
|
24
14281-71C00-000
MOUNTING
H25A; 1998-02-01~2000-03-01 |
14281-71C00-000 |
— | ||
| replacement | |||||
|
24
|
24
14281-71C01-000 MOUNTING,MUFH25A; 1998-02-01~2000-03-01 |
14281-71C01-000 |
from US $9.63 |
||
|
25
|
25
09180-08057-000
Spacer
H25A; 1998-02-01~2000-03-01 |
09180-08057-000 |
— | ||
|
26
|
26
01550-08353-000
Bolt, rear
H25A; 1998-02-01~2000-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-0835B-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0835B-000 |
from US $1.28 |
||
|
26
|
26
01550-0835A-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
27
|
27
09250-25007-000 CAP(OD:25.0)H25A; 1998-02-01~2000-03-01 |
09250-25007-000 |
from US $1.31 |
||
|
28
|
28
14381-65D00-000 CAP,MUFFLER STAYH25A; 1998-08-01~2000-03-01 |
14381-65D00-000 |
US $2.80 |
||
|
29
|
29
09139-08019-000 SCREW(8X35)H25A; 1999-07-01~2000-03-01 |
09139-08019-000 |
from US $1.01 |
||
|
30
|
30
09180-08057-000
Spacer
H25A; 1999-07-01~2000-03-01 |
09180-08057-000 |
— | ||
