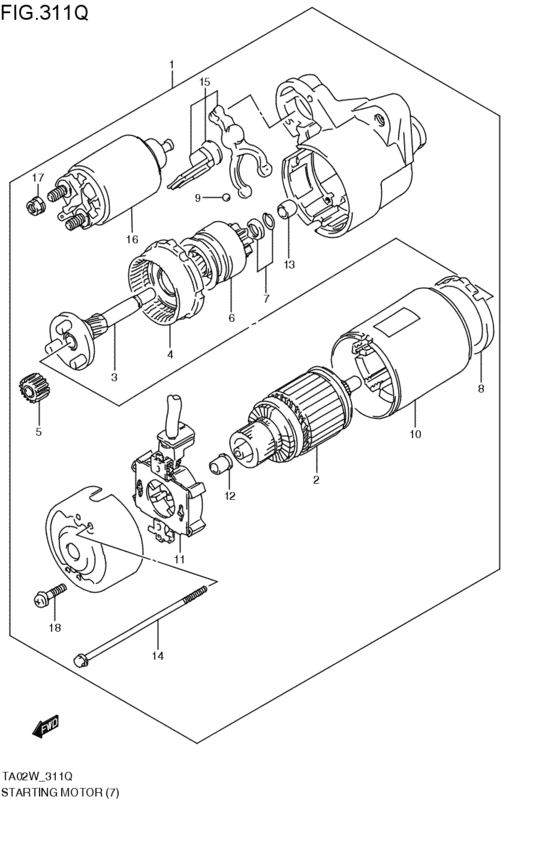

starting motor (H25A; 1998-02-01~1998-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-77E11-000 MOTOR ASSY,STARTINGH25A; 1998-02-01~1998-03-01 |
31100-77E11-000 |
from US $637.04 |
||
|
2
|
2
31311-60A12-000
ARMATURE ASSY
H25A; 1998-02-01~1998-03-01 |
31311-60A12-000 |
— | ||
|
3
|
3
31341-60A10-000
SHAFT,GEAR
H25A; 1998-02-01~1998-03-01 |
31341-60A10-000 |
— | ||
|
4
|
4
31343-50F40-000
GEAR,INTERNAL
H25A; 1998-02-01~1998-03-01 |
31343-50F40-000 |
— | ||
|
5
|
5
31344-86030-000 GEAR,PLNTYH25A; 1998-02-01~1998-03-01 |
31344-86030-000 |
from US $18.09 |
||
|
6
|
6
31320-86030-000 CLUTCH,OVER RUNNINGH25A; 1998-02-01~1998-03-01 |
31320-86030-000 |
from US $93.31 |
||
|
7
|
7
31313-86030-000 STOPPER SETH25A; 1998-02-01~1998-03-01 |
31313-86030-000 |
US $11.50 |
||
| replacement | |||||
|
7
|
7
31314-86030-000 Stopper SetH25A; 1998-02-01~1998-03-01 |
31314-86030-000 |
from US $11.50 |
||
|
8
|
8
31345-86030-000
Packing
H25A; 1998-02-01~1998-03-01 |
31345-86030-000 |
— | ||
| replacement | |||||
|
8
|
8
31345-60A00-000 PACKINGH25A; 1998-02-01~1998-03-01 |
31345-60A00-000 |
US $5.37 |
||
|
9
|
9
31193-86030-000 BALLH25A; 1998-02-01~1998-03-01 |
31193-86030-000 |
from US $0.83 |
||
|
10
|
10
31110-56B10-000
YOKE ASSY
H25A; 1998-02-01~1998-03-01 |
31110-56B10-000 |
— | ||
|
11
|
11
31173-60A12-000 HOLDER ASSY,BRUSHH25A; 1998-02-01~1998-03-01 |
31173-60A12-000 |
from US $79.12 |
||
|
12
|
12
31172-64B60-000 BEARING,REARH25A; 1998-02-01~1998-03-01 |
31172-64B60-000 |
from US $8.21 |
||
|
13
|
13
31152-79030-000 BEARING,FRONTH25A; 1998-02-01~1998-03-01 |
31152-79030-000 |
from US $5.11 |
||
|
14
|
14
31261-60A10-000
Bolt
H25A; 1998-02-01~1998-03-01 |
31261-60A10-000 |
— | ||
|
15
|
15
31191-86030-000
LEVER ASSY
H25A; 1998-02-01~1998-03-01 |
31191-86030-000 |
— | ||
|
16
|
16
31220-86032-000 SWITCH ASSYH25A; 1998-02-01~1998-03-01 |
31220-86032-000 |
from US $107.37 |
||
|
17
|
17
08316-10083-000
Nut
H25A; 1998-02-01~1998-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1008B-000 NUTH25A; 1998-02-01~1998-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
18
|
18
31136-79030-000 SCREW ASSYH25A; 1998-02-01~1998-03-01 |
31136-79030-000 |
US $3.38 |
||
| replacement | |||||
|
18
|
18
31175-79030-000 Screw SetH25A; 1998-02-01~1998-03-01 |
31175-79030-000 |
US $8.16 |
||
