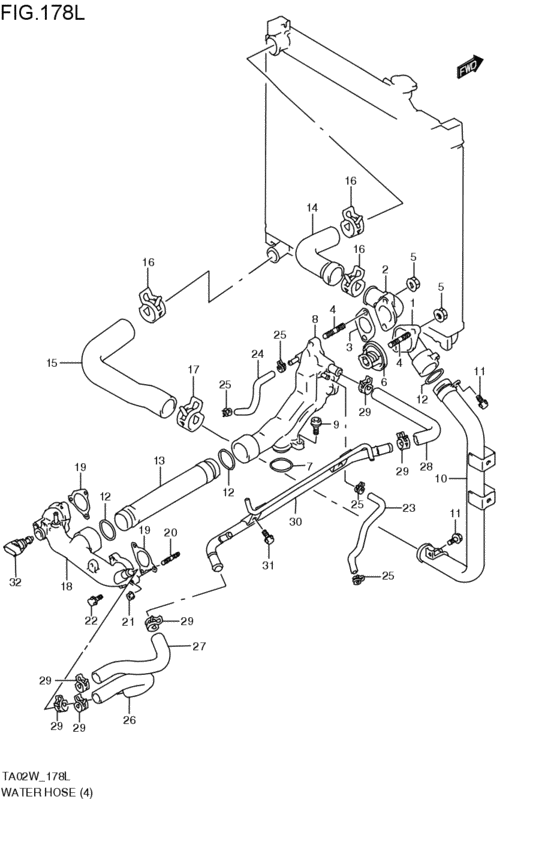

water hose (H25A; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- H25A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17561-67D00-000
CAP TERMOSTAT
H25A; 1998-02-01~2000-03-01 |
17561-67D00-000 |
— | ||
| replacement | |||||
|
1
|
1
17561-67D01-000 CAP,WTR THERMOSTATH25A; 1998-02-01~2000-03-01 |
17561-67D01-000 |
from US $49.48 |
||
|
2
|
2
17571-67D00-000 CAP,WTR OUTLETH25A; 1998-02-01~2000-03-01 |
17571-67D00-000 |
US $19.85 |
||
|
3
|
3
17579-67D00-000 GASKET,WTR OUTLET CAPH25A; 1998-02-01~2000-03-01 |
17579-67D00-000 |
from US $5.38 |
||
|
4
|
4
01421-08253-000
Stud bolt, no.2
H25A; 1998-02-01~2000-03-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0825A-000 BOLT,STUDH25A; 1998-02-01~2000-03-01 |
01421-0825A-000 |
from US $1.28 |
||
|
5
|
5
08316-10083-000
Nut
H25A; 1998-02-01~2000-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUTH25A; 1998-02-01~2000-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
17670-77E10-000
サーモスタット,ウォータ,82゜C
H25A; 1998-02-01~2000-03-01 |
17670-77E10-000 |
— | ||
| replacement | |||||
|
6
|
6
17670-77E11-000 THERMOSTAT,WATER 82 DEGH25A; 1998-02-01~2000-03-01 |
17670-77E11-000 |
from US $29.52 |
||
|
7
|
7
09280-44008-000 O RING(D:2.4,ID:39.5)H25A; 1998-02-01~2000-03-01 |
09280-44008-000 |
from US $3.04 |
||
|
8
|
8
17690-67D01-000
CASE THERMOSTAT
H25A; 1998-02-01~2000-03-01 |
17690-67D01-000 |
— | ||
| replacement | |||||
|
8
|
8
17690-52D00-000 CASE,THERMOSTATH25A; 1998-02-01~2000-03-01 |
17690-52D00-000 |
from US $112.52 |
||
|
9
|
9
07120-10253-000
Bolt
H25A; 1998-02-01~2000-03-01 |
07120-10253-000 |
— | ||
| replacement | |||||
|
9
|
9
07120-1025A-000 BoltH25A; 1998-02-01~2000-03-01 |
07120-1025A-000 |
from US $6.17 |
||
|
10
|
10
17550-67D00-000 PIPE,WATER INLETH25A; 1998-02-01~2000-03-01 |
17550-67D00-000 |
from US $33.64 |
||
|
11
|
11
01550-06123-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BoltBolt, clamp H25A; 1998-02-01~2000-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
09280-34005-000 O RING(D:3.5,ID:33.7)H25A; 1998-02-01~2000-03-01 |
09280-34005-000 |
from US $2.24 |
||
|
13
|
13
17589-77E00-000 PIPE,WTR OUTLETH25A; 1998-02-01~2000-03-01 |
17589-77E00-000 |
from US $22.21 |
||
|
14
|
14
17841-77E00-000 HOSE,RADIATOR INLETH25A; 1998-02-01~2000-03-01 |
17841-77E00-000 |
from US $22.48 |
||
|
15
|
15
17851-67D01-000 HOSE,RADIATOR OUTLETH25A; 1998-02-01~2000-03-01 |
17851-67D01-000 |
from US $35.84 |
||
|
16
|
16
09401-36403-000
CLIP
H25A; 1998-02-01~2000-03-01 |
09401-36403-000 |
— | ||
| replacement | |||||
|
16
|
16
09401-35403-000 CLIPH25A; 1998-02-01~2000-03-01 |
09401-35403-000 |
from US $2.72 |
||
|
17
|
17
09401-36403-000
CLIP
H25A; 1998-02-01~2000-03-01 |
09401-36403-000 |
— | ||
| replacement | |||||
|
17
|
17
09401-35403-000 CLIPH25A; 1998-02-01~2000-03-01 |
09401-35403-000 |
from US $2.72 |
||
|
18
|
18
17570-67D10-000 CAP,WTR OUTLETH25A; 1998-02-01~2000-03-01 |
17570-67D10-000 |
US $88.02 |
||
|
19
|
19
17579-85FA0-000 GASKET,WTR OUTLET CAPH25A; 1998-02-01~2000-03-01 |
17579-85FA0-000 |
from US $7.52 |
||
|
20
|
20
01421-06203-000
Stud bolt (l:20)(green)
H25A; 1998-02-01~2000-03-01 |
01421-06203-000 |
— | ||
| replacement | |||||
|
20
|
20
01421-0620A-000 BOLT,STUDH25A; 1998-02-01~2000-03-01 |
01421-0620A-000 |
from US $1.12 |
||
|
21
|
21
08316-10063-000
Nut
H25A; 1998-02-01~2000-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1006B-000 NUTH25A; 1998-02-01~2000-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
22
|
22
01550-06203-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-0620B-000 BoltBolt, inspection cap H25A; 1998-02-01~2000-03-01 |
01550-0620B-000 |
from US $0.76 |
||
|
23
|
23
17857-77E00-000 HOSE,WATER HEAD,RH25A; 1998-02-01~2000-03-01 |
17857-77E00-000 |
from US $11.84 |
||
|
24
|
24
17858-77E00-000 HOSE,WATER HEAD,LH25A; 1998-02-01~2000-03-01 |
17858-77E00-000 |
from US $8.19 |
||
|
25
|
25
09401-10409-000 CLIPH25A; 1998-02-01~2000-03-01 |
09401-10409-000 |
from US $1.28 |
||
|
26
|
26
17871-73X50-000 HOSE ASSY,BREATHERH25A; 1998-02-01~2000-03-01 |
17871-73X50-000 |
from US $11.97 |
||
|
27
|
27
17872-67D00-000 HOSE,HEATER OUTLETH25A; 1998-02-01~2000-03-01 |
17872-67D00-000 |
from US $14.14 |
||
|
28
|
28
17873-77E01-000 HOSE,WATER CIRCULATIONH25A; 1998-02-01~2000-03-01 |
17873-77E01-000 |
from US $18.77 |
||
|
29
|
29
09401-18403-000 CLIPClip, heater hose H25A; 1998-02-01~2000-03-01 |
09401-18403-000 |
from US $1.53 |
||
|
30
|
30
17880-67D00-000 PIPE,HEATER OUTLETH25A; 1998-02-01~2000-03-01 |
17880-67D00-000 |
from US $54.83 |
||
|
31
|
31
01550-06123-000
Bolt
H25A; 1998-02-01~2000-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
31
|
31
01550-0612B-000 BoltBolt, clamp H25A; 1998-02-01~2000-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
31
|
31
01550-0612A-000 BoltH25A; 1998-02-01~2000-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
32
|
32
13650-50G01-000 Sensor,water TempH25A; 1998-02-01~2000-03-01 |
13650-50G01-000 |
from US $70.76 |
||
