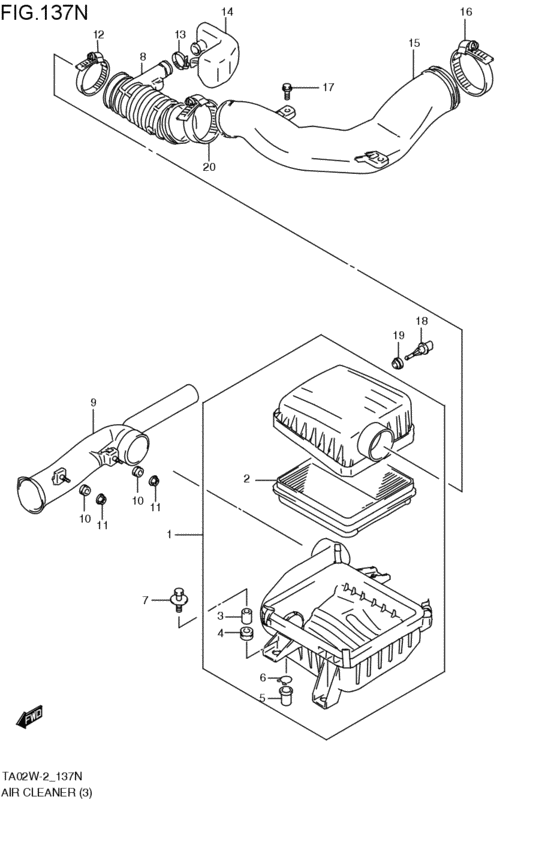

air cleaner (H25A; 2000-04-01~2002-09-01) Diagram Suzuki ESCUDO
- Year
- 2000
- Sales region
- Japan
- Engine
- H25A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- D2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-68D02-000 CLEANER ASSY,AIRH25A; 2000-04-01~2002-09-01 |
13700-68D02-000 |
US $292.56 |
||
|
2
|
2
13780-77E00-000 ELEMENT,AIR CLEANERH25A; 2000-04-01~2002-09-01 |
13780-77E00-000 |
from US $26.15 |
||
|
3
|
3
13877-65D00-000 COLLAR,7.6X10X19.3H25A; 2000-04-01~2002-09-01 |
13877-65D00-000 |
US $3.04 |
||
|
4
|
4
13878-65D00-000 CUSHION,12.5X22X19.5H25A; 2000-04-01~2002-09-01 |
13878-65D00-000 |
US $2.74 |
||
|
5
|
5
13875-78E00-000 CAP,DRAINH25A; 2000-04-01~2002-09-01 |
13875-78E00-000 |
US $2.29 |
||
|
6
|
6
13876-78E00-000 CLIPH25A; 2000-04-01~2002-09-01 |
13876-78E00-000 |
US $1.52 |
||
|
7
|
7
09116-06172-000 BOLT(6X30)Bolt (6x30) H25A; 2000-04-01~2002-09-01 |
09116-06172-000 |
from US $1.44 |
||
|
8
|
8
13881-77E01-000 HOSE,AIR CLNR OUTLETH25A; 2000-04-01~2002-09-01 |
13881-77E01-000 |
US $140.80 |
||
|
9
|
9
13820-67D00-000
ケース,エアクリーナサクション
H25A; 2000-04-01~2002-09-01 |
13820-67D00-000 |
— | ||
| replacement | |||||
|
9
|
9
13820-67D01-000 CASE,AIR CLNR SUCTIONH25A; 2000-04-01~2002-09-01 |
13820-67D01-000 |
US $87.58 |
||
|
10
|
10
13874-51E50-000 CUSHION,RESONATOR NO.2H25A; 2000-04-01~2002-09-01 |
13874-51E50-000 |
US $2.10 |
||
|
11
|
11
09159-06081-000 NUTH25A; 2000-04-01~2002-09-01 |
09159-06081-000 |
US $12.50 |
||
|
12
|
12
09402-82511-000 CLAMPH25A; 2000-04-01~2002-09-01 |
09402-82511-000 |
US $65.90 |
||
|
13
|
13
13893-65D00-000 CLAMP,RESONATOR NO.2H25A; 2000-04-01~2002-09-01 |
13893-65D00-000 |
US $7.18 |
||
|
14
|
14
13761-77E01-000 RESONATORH25A; 2000-04-01~2002-09-01 |
13761-77E01-000 |
US $46 |
||
|
15
|
15
13830-67D00-000 PIPE,AIR INTAKEH25A; 2000-04-01~2002-09-01 |
13830-67D00-000 |
from US $105.08 |
||
|
16
|
16
09402-00512-000 CLAMPH25A; 2000-04-01~2002-09-01 |
09402-00512-000 |
from US $17.37 |
||
|
17
|
17
01550-06163-000
Bolt
H25A; 2000-04-01~2002-09-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0616B-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0616B-000 |
from US $0.76 |
||
|
17
|
17
01550-0616A-000 BOLTH25A; 2000-04-01~2002-09-01 |
01550-0616A-000 |
from US $0.76 |
||
|
18
|
18
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp H25A; 2000-04-01~2002-09-01 |
13650-52G00-000 |
from US $50.92 |
||
|
19
|
19
13655-77E00-000
GROMMET,AIR TEMP SENSOR
H25A; 2000-04-01~2002-09-01 |
13655-77E00-000 |
— | ||
| replacement | |||||
|
19
|
19
13655-77E10-000 Grommet,air Temp SensorH25A; 2000-04-01~2002-09-01 |
13655-77E10-000 |
from US $2.88 |
||
|
20
|
20
13891-65D00-000 CLAMP,CLNR OUTLET PIPEH25A; 2000-04-01~2002-09-01 |
13891-65D00-000 |
US $7.18 |
||
